Hadoop分布式文件系统的配置与实现

------------+---------------------------+---------------------------+------------
            |                           |                           |
        eth0|192.168.10.11          eth0|192.168.10.12          eth0|192.168.10.13
+-----------+-----------+   +-----------+-----------+   +-----------+-----------+
|  [ srv1.1000cc.net ]  |   |  [ srv2.1000cc.net ]  |   |  [ srv3.1000cc.net ]  |
|                       |   |                       |   |                       |
|       Master Node     |   |      Slave Node       |   |      Slave Node       |
|                       |   |                       |   |                       |
+-----------------------+   +-----------------------+   +-----------------------+

1) 自行下载JDK8

2) 在所有的节点上均安装JDK8
[root@srv1 ~]# rpm -Uvh jdk-8u221-linux-x64.rpm

[root@srv2 ~]# rpm -Uvh jdk-8u221-linux-x64.rpm

[root@srv3 ~]# rpm -Uvh jdk-8u221-linux-x64.rpm

3) 设置JDK环境
# srv1配置
[root@srv1 ~]# vim /etc/profile.d/jdk8.sh
export JAVA_HOME=/usr/java/default
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/jre/lib:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar

[root@srv1 ~]# source /etc/profile.d/jdk8.sh

# srv2配置
[root@srv2 ~]# vim /etc/profile.d/jdk8.sh
export JAVA_HOME=/usr/java/default
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/jre/lib:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar

[root@srv2 ~]# source /etc/profile.d/jdk8.sh

# srv3配置
[root@srv3 ~]# vim /etc/profile.d/jdk8.sh
export JAVA_HOME=/usr/java/default
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/jre/lib:$JAVA_HOME/lib:$JAVA_HOME/lib/tools.jar

[root@srv3 ~]# source /etc/profile.d/jdk8.sh

4) 选择JDK版本
srv1配置
[root@srv1 ~]# alternatives --config java
There is 1 program that provides 'java'.

  Selection    Command
-----------------------------------------------
*+ 1           /usr/java/jdk1.8.0_221-amd64/jre/bin/java

Enter to keep the current selection[+], or type selection number: # 回车

# srv2配置
[root@srv2 ~]# alternatives --config java
There is 1 program that provides 'java'.

  Selection    Command
-----------------------------------------------
*+ 1           /usr/java/jdk1.8.0_221-amd64/jre/bin/java

Enter to keep the current selection[+], or type selection number: # 回车

# srv3配置
[root@srv3 ~]# alternatives --config java
There is 1 program that provides 'java'.

  Selection    Command
-----------------------------------------------
*+ 1           /usr/java/jdk1.8.0_221-amd64/jre/bin/java

Enter to keep the current selection[+], or type selection number: # 回车

1) 在所有节点上创建hadoop账户
#srv1配置
[root@srv1 ~]# useradd -d /usr/hadoop hadoop
[root@srv1 ~]# chmod 755 /usr/hadoop/
[root@srv1 ~]# passwd hadoop
Changing password for user hadoop.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.

# srv2配置
[root@srv2 ~]# useradd -d /usr/hadoop hadoop
[root@srv2 ~]# chmod 755 /usr/hadoop/
[root@srv2 ~]# passwd hadoop
Changing password for user hadoop.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.

# srv3配置
[root@srv3 ~]# useradd -d /usr/hadoop hadoop
[root@srv3 ~]# chmod 755 /usr/hadoop/
[root@srv3 ~]# passwd hadoop
Changing password for user hadoop.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.

2) 在主节点上创建ssh秘钥并传递至其他节点
[root@srv1 ~]# su - hadoop

[hadoop@srv1 ~]$ ssh-keygen -q -N ''
Enter file in which to save the key (/usr/hadoop/.ssh/id_rsa):     # 回车

[hadoop@srv1 ~]$ ssh-copy-id localhost
[hadoop@srv1 ~]$ ssh-copy-id srv2.1000cc.net
[hadoop@srv1 ~]$ ssh-copy-id srv3.1000cc.net

1) 在所有节点上下载并安装、配置hadoop
[hadoop@srv1 ~]$ wget \
https://mirror.tuna.tsinghua.edu.cn/apache/hadoop/common/hadoop-3.2.1/hadoop-3.2.1.tar.gz

[hadoop@srv2 ~]$ wget \
https://mirror.tuna.tsinghua.edu.cn/apache/hadoop/common/hadoop-3.2.1/hadoop-3.2.1.tar.gz

[hadoop@srv3 ~]$ wget \
https://mirror.tuna.tsinghua.edu.cn/apache/hadoop/common/hadoop-3.2.1/hadoop-3.2.1.tar.gz

# 解压时去除第1层目录
[hadoop@srv1 ~]$ tar zxvf hadoop-3.2.1.tar.gz -C /usr/hadoop --strip-components 1
[hadoop@srv2 ~]$ tar zxvf hadoop-3.2.1.tar.gz -C /usr/hadoop --strip-components 1
[hadoop@srv3 ~]$ tar zxvf hadoop-3.2.1.tar.gz -C /usr/hadoop --strip-components 1

# srv1配置
[hadoop@srv1 ~]$ vim ~/.bash_profile
......
......
......
......
......
......

# 于文件最后添加如下内容
export HADOOP_HOME=/usr/hadoop
export HADOOP_COMMON_HOME=$HADOOP_HOME
export HADOOP_HDFS_HOME=$HADOOP_HOME
export HADOOP_MAPRED_HOME=$HADOOP_HOME
export HADOOP_YARN_HOME=$HADOOP_HOME
export HADOOP_CLASSPATH=${HADOOP_HOME}
export HADOOP_OPTS="-Djava.library.path=$HADOOP_HOME/lib/native"
export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_HOME/lib/native
export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin

[hadoop@srv1 ~]$ source ~/.bash_profile

# srv2配置
[hadoop@srv2 ~]$ vim ~/.bash_profile
......
......
......
......
......
......

# 于文件最后添加如下内容
export HADOOP_HOME=/usr/hadoop
export HADOOP_COMMON_HOME=$HADOOP_HOME
export HADOOP_HDFS_HOME=$HADOOP_HOME
export HADOOP_MAPRED_HOME=$HADOOP_HOME
export HADOOP_YARN_HOME=$HADOOP_HOME
export HADOOP_CLASSPATH=${HADOOP_HOME}
export HADOOP_OPTS="-Djava.library.path=$HADOOP_HOME/lib/native"
export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_HOME/lib/native
export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin

[hadoop@srv2 ~]$ source ~/.bash_profile

# srv3配置
[hadoop@srv3 ~]$ vim ~/.bash_profile
......
......
......
......
......
......

# 于文件最后添加如下内容
export HADOOP_HOME=/usr/hadoop
export HADOOP_COMMON_HOME=$HADOOP_HOME
export HADOOP_HDFS_HOME=$HADOOP_HOME
export HADOOP_MAPRED_HOME=$HADOOP_HOME
export HADOOP_YARN_HOME=$HADOOP_HOME
export HADOOP_CLASSPATH=${HADOOP_HOME}
export HADOOP_OPTS="-Djava.library.path=$HADOOP_HOME/lib/native"
export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_HOME/lib/native
export PATH=$PATH:$HADOOP_HOME/sbin:$HADOOP_HOME/bin

[hadoop@srv3 ~]$ source ~/.bash_profile


3) 配置hadoop
[hadoop@srv1 ~]$ mkdir ~/datanode
[hadoop@srv1 ~]$ ssh srv2.1000cc.net "mkdir ~/datanode"
[hadoop@srv1 ~]$ ssh srv3.1000cc.net "mkdir ~/datanode"

(1) 配置hdfs-site
[hadoop@srv1 ~]$ vim ~/etc/hadoop/hdfs-site.xml
# 在[configuration]区段中增加如下内容
<configuration>
  <property>
    <name>dfs.replication</name>
    <value>2</value>
  </property>
  <property>
    <name>dfs.datanode.data.dir</name>
    <value>file:///usr/hadoop/datanode</value>
  </property>
</configuration>

[hadoop@srv1 ~]$ scp ~/etc/hadoop/hdfs-site.xml srv2.1000cc.net:~/etc/hadoop/
[hadoop@srv2 ~]$ scp ~/etc/hadoop/hdfs-site.xml srv3.1000cc.net:~/etc/hadoop/

(2) 配置core-site
[hadoop@srv1 ~]$ vim ~/etc/hadoop/core-site.xml
# 在[configuration]区段中增加如下内容
<configuration>
  <property>
    <name>fs.defaultFS</name>
    <value>hdfs://srv1.1000cc.net:9000/</value>
  </property>
</configuration>

[hadoop@srv1 ~]$ scp ~/etc/hadoop/core-site.xml srv2.1000cc.net:~/etc/hadoop/
[hadoop@srv1 ~]$ scp ~/etc/hadoop/core-site.xml srv3.1000cc.net:~/etc/hadoop/

(3) 设定JDK环境
[hadoop@srv1 ~]$ sed -i -e 's/\${JAVA_HOME}/\/usr\/java\/default/' ~/etc/hadoop/hadoop-env.sh
[hadoop@srv1 ~]$ scp ~/etc/hadoop/hadoop-env.sh srv2.1000cc.net:~/etc/hadoop/
[hadoop@srv1 ~]$ scp ~/etc/hadoop/hadoop-env.sh srv3.1000cc.net:~/etc/hadoop/

(4) 增加namenode信息
[hadoop@srv1 ~]$ mkdir ~/namenode
[hadoop@srv1 ~]$ vim ~/etc/hadoop/hdfs-site.xml
# 在[configuration]区段中增加如下内容
<configuration>
  <property>
    <name>dfs.replication</name>
    <value>2</value>
  </property>
  <property>
    <name>dfs.datanode.data.dir</name>
    <value>file:///usr/hadoop/datanode</value>
  </property>
  <property>
    <name>dfs.namenode.name.dir</name>
    <value>file:///usr/hadoop/namenode</value>
  </property>
</configuration>

(5) 设定Mapred-site
# 获取classpath的值
[hadoop@srv1 ~]$ yarn classpath
/usr/hadoop/etc/hadoop:/usr/hadoop/share/hadoop/common/lib/*:/usr/hadoop/share/hadoop/common/*:/usr/hadoop/share/hadoop/hdfs:
/usr/hadoop/share/hadoop/hdfs/lib/*:/usr/hadoop/share/hadoop/hdfs/*:/usr/hadoop/share/hadoop/mapreduce/lib/*:
/usr/hadoop/share/hadoop/mapreduce/*:/usr/hadoop/share/hadoop/yarn:/usr/hadoop/share/hadoop/yarn/lib/*:
/usr/hadoop/share/hadoop/yarn/*

[hadoop@srv1 ~]$ vim ~/etc/hadoop/mapred-site.xml
# 在[configuration]区段中增加如下内容
<configuration>
  <property>
    <name>mapreduce.framework.name</name>
    <value>yarn</value>
  </property>
  <property>
    <name>yarn.app.mapreduce.am.env</name>
    <value>
      /usr/hadoop/etc/hadoop,
      /usr/hadoop/share/hadoop/common/lib/*,
      /usr/hadoop/share/hadoop/common/*,
      /usr/hadoop/share/hadoop/hdfs,
      /usr/hadoop/share/hadoop/hdfs/lib/*,
      /usr/hadoop/share/hadoop/hdfs/*,
      /usr/hadoop/share/hadoop/mapreduce/lib/*,
      /usr/hadoop/share/hadoop/mapreduce/*,
      /usr/hadoop/share/hadoop/yarn,
      /usr/hadoop/share/hadoop/yarn/lib/*,
      /usr/hadoop/share/hadoop/yarn/*
    </value>
  </property>
</configuration>

(6) 设定yarn-site
[hadoop@srv1 ~]$ vim ~/etc/hadoop/yarn-site.xml
# 在[configuration]区段中删除注释行，并增加如下内容
<configuration>
  <property>
    <name>yarn.resourcemanager.hostname</name>
    <value>srv1.1000cc.net</value>
  </property>
  <property>
    <name>yarn.nodemanager.hostname</name>
    <value>srv1.1000cc.net</value>
  </property>
  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
</configuration>

(7) 添加slaves
hadoop@srv1 ~]$ vim ~/etc/hadoop/slaves
srv1.1000cc.net
srv2.1000cc.net
srv3.1000cc.net

1) 格式化NameNode
[hadoop@srv1 ~]$ hdfs namenode -format
WARNING: /usr/hadoop/logs does not exist. Creating.
2020-02-28 06:34:30,174 INFO namenode.NameNode: STARTUP_MSG:
/************************************************************
STARTUP_MSG: Starting NameNode
STARTUP_MSG:   host = srv1.1000cc.net/192.168.10.11
STARTUP_MSG:   args = [-format]
STARTUP_MSG:   version = 3.2.1
......
......
2020-02-28 06:34:32,132 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************
SHUTDOWN_MSG: Shutting down NameNode at srv1.1000cc.net/192.168.10.11
************************************************************/

2) 启动Hadoop服务
[hadoop@srv1 ~]$ start-dfs.sh
Starting namenodes on [srv1.1000cc.net]
Starting datanodes
Starting secondary namenodes [srv1.1000cc.net]

[hadoop@srv1 ~]$ start-yarn.sh
Starting resourcemanager
Starting nodemanagers

3) 查看Hadoop服务状态
[hadoop@srv1 ~]$ jps
5171 DataNode
5365 SecondaryNameNode
6204 Jps
5726 ResourceManager
5055 NameNode
5839 NodeManager

1) 执行测试
[hadoop@srv1 ~]$ hdfs dfs -mkdir /test

# 拷贝一个本地文件到/test目录
[hadoop@srv1 ~]$ hdfs dfs -copyFromLocal ~/NOTICE.txt /test

# 显示文件里的内容
[hadoop@srv1 ~]$ hdfs dfs -cat /test/NOTICE.txt
This product includes software developed by The Apache Software
Foundation (http://www.apache.org/).
......
......
   Expert Group and released to the public domain, as explained at
   http://creativecommons.org/publicdomain/zero/1.0/

# 执行给一个测试程序
[hadoop@srv1 ~]$ hadoop jar ~/share/hadoop/mapreduce/hadoop-mapreduce-examples-3.2.1.jar \
wordcount /test/NOTICE.txt /output01
2020-02-28 06:44:03,301 INFO client.RMProxy: Connecting to ResourceManager at srv1.1000cc.net/192.168.10.11:8032
......
......

2) 结果显示
# 显示运行结果
[hadoop@srv1 ~]$ hdfs dfs -ls /output01
Found 2 items
-rw-r--r--   2 hadoop supergroup          0 2020-02-28 07:35 /output01/_SUCCESS
-rw-r--r--   2 hadoop supergroup      12464 2020-02-28 07:35 /output01/part-r-00000

# 显示文件里的内容（生成字数）
[hadoop@srv1 ~]$ hdfs dfs -cat /output01/part-r-00000
......
......
written 7
you     2
zlib    1
©       6

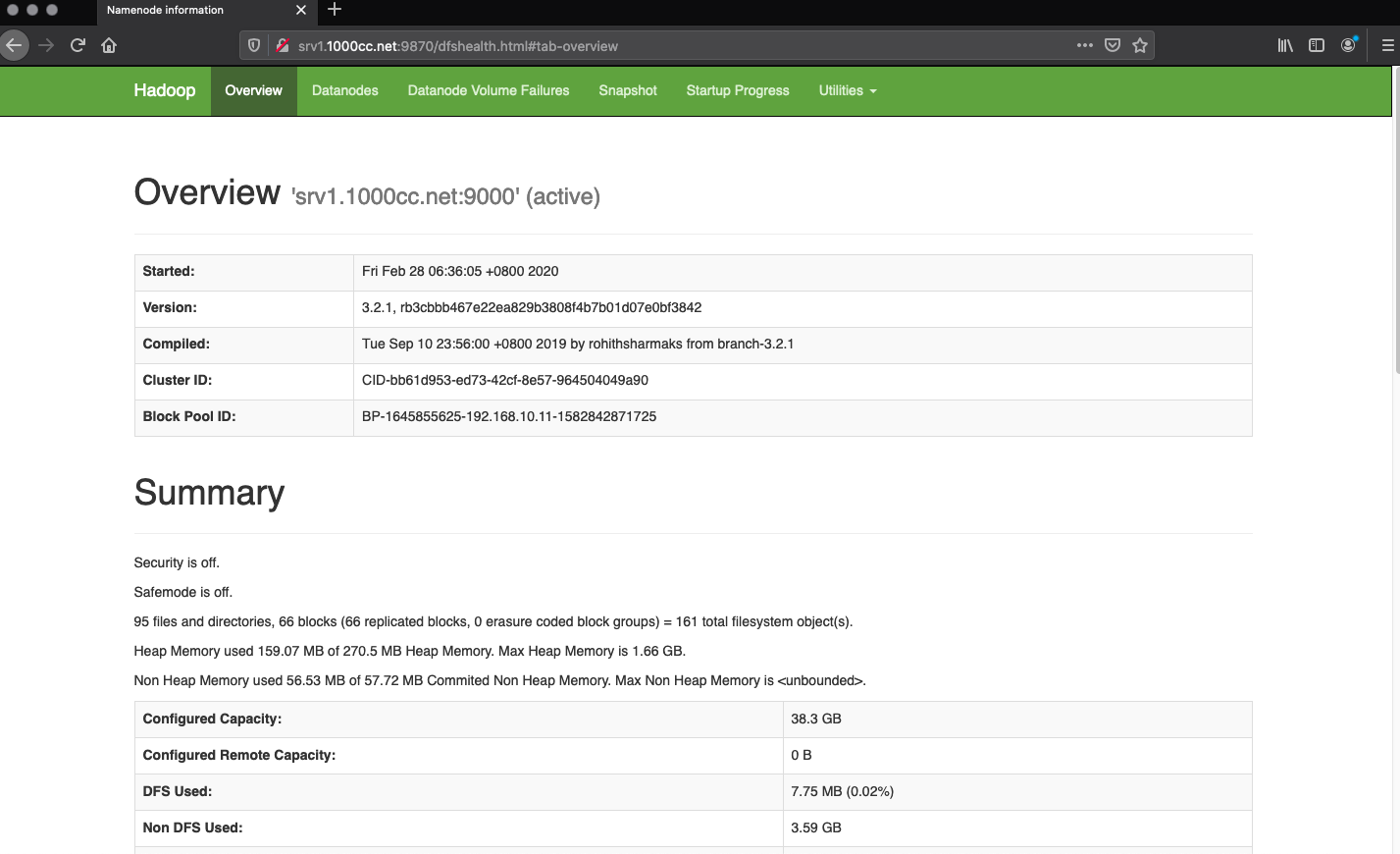

1) 查看Hadoop集群的摘要
[浏览器]===>http://srv1.1000cc.net:9870

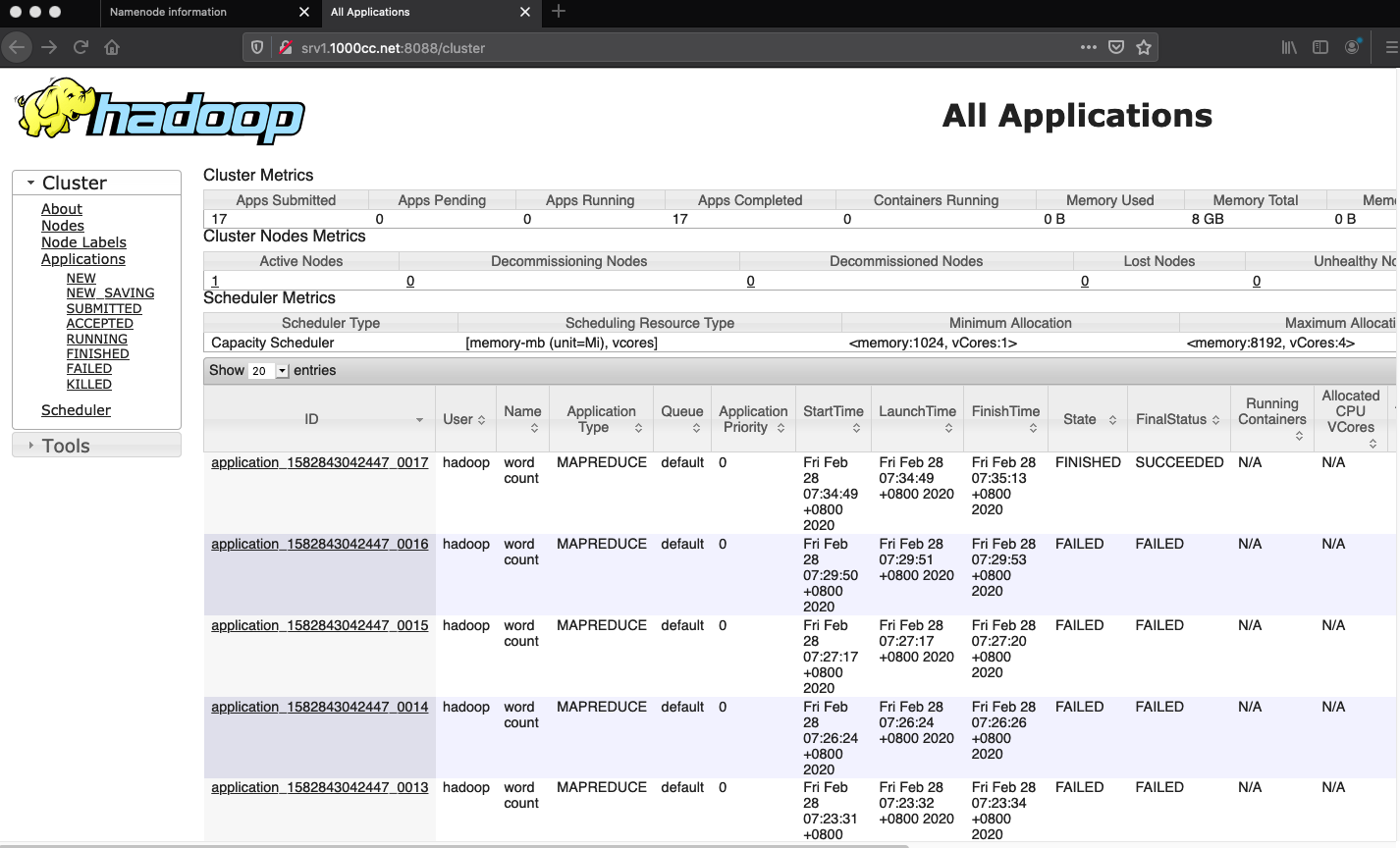

2) 查看Hadoop集群的信息
[浏览器]===>http://srv1.1000cc.net:8088
