Ceph Nautilus配置手册

snow chuai汇总、整理、撰写---2024/01/03

1. 配置Ceph Nautilus分布式集群

1.1 拓扑

        +--------------------+           |           +----------------------+
        | [srv9.1000y.cloud] |           |           |  [srv7.1000y.cloud]  |
        |     Ceph Client    +-----------+-----------+        RADOSGW       |
        |    192.168.1.19    |           |           |      192.168.1.17    |
        +--------------------+           |           +----------------------+
            +----------------------------+----------------------------+
            |                            |                            |
            |192.168.1.11                |192.168.1.12                |192.168.1.13
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
|   [srv1.1000y.cloud]  |    |   [srv2.1000y.cloud]  |    |   [srv3.1000y.cloud]  |
|     Object Storage    +----+     Object Storage    +----+     Object Storage    |
|     Monitor Daemon    |    |     Monitor Daemon    |    |     Monitor Daemon    |
|     Manager Daemon    |    |     Manager Daemon    |    |     Manager Daemon    |
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
            |----------------------------|----------------------------|
            |192.168.1.18		     	 |192.168.1.20				  |192.168.1.21
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
|   [srv8.1000y.cloud]  |    |   [srv10.1000y.cloud] |    |   [srv11.1000y.cloud] |
|         Cache         +----+         Cache         +----+         Cache         |
|                       |    |                       |    |                       |
|     添加一块sdb硬盘     |    |     添加一块sdb硬盘     |    |     添加一块sdb硬盘     |
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
            |----------------------------|----------------------------|
            |192.168.1.22		     	 |192.168.1.23				  |192.168.1.24
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
|  [srv12.1000y.cloud]  |    |   [srv13.1000y.cloud] |    |   [srv14.1000y.cloud] |
|        Log Disk       +----+        Log Disk       +----+        Log Disk       |
|                       |    |                       |    |                       |
|   添加四块sd[b-e]硬盘   |    |   添加四块sd[b-e]硬盘   |    |   添加四块sd[b-e]硬盘   |
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
            |----------------------------|----------------------------|
            |192.168.1.14		     	 |192.168.1.15				  |192.168.1.16
+-----------+-----------+    +-----------+-----------+    +-----------+-----------+
|   [srv4.1000y.cloud]  |    |   [srv5.1000y.cloud]  |    |   [srv6.1000y.cloud]  |
|     Object Storage    +----+     Object Storage    +----+     Object Storage    |
|                       |    |                       |    |                       |
|     添加一块sdb硬盘     |    |     添加一块sdb硬盘     |    |     添加一块sdb硬盘     |
+-----------------------+    +-----------------------+    +-----------------------+

1.2 配置Monitor Daemon及Manager Daemon

1) 于管理节点srv1上生成ssh-key并导入至所有节点上(含管理节点)
[root@srv1 ~]# ssh-keygen -q -N ''
Enter file in which to save the key (/root/.ssh/id_rsa):

[root@srv1 ~]# vim ~/.ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root

[root@srv1 ~]# chmod 600 ~/.ssh/config

[root@srv1 ~]# ssh-copy-id srv1
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host 'srv1.1000y.cloud (192.168.1.11)' can't be established.
ECDSA key fingerprint is SHA256:uoSm+T/hW98A1OoH1Mxb4AJS8FPylojFSEhI2J4la+Q.
ECDSA key fingerprint is MD5:98:0c:c1:97:25:ca:bd:ae:a0:6d:98:6b:15:b8:d9:2e.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@srv1.1000y.cloud's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'srv1.1000y.cloud'"
and check to make sure that only the key(s) you wanted were added.

[root@srv1 ~]# ssh-copy-id srv2
[root@srv1 ~]# ssh-copy-id srv3
[root@srv1 ~]# ssh-copy-id srv4
[root@srv1 ~]# ssh-copy-id srv5
[root@srv1 ~]# ssh-copy-id srv6

2) 在所有节点上安装ceph(含3台管理节点,并启用EPEL源)
[root@srv1 ~]# for allnode in srv1 srv2 srv3 srv4 srv5 srv6
 do
 ssh $allnode "yum install centos-release-ceph-nautilus -y; yum install ceph python-enum34 -y"
 done

3) 于管理节点配置Monitor及Manager Daemon
3.1) 获取uuid
[root@srv1 ~]# uuidgen
019823c5-518e-4d7e-862c-46f828ec6275

3.2) 创建一个以集群名称命名的配置文件--(此集群名为ceph)
[root@sev1 ~]# vim /etc/ceph/ceph.conf
# 全局配置定义
[global]
# 定义集群网络地址
cluster network = 192.168.1.0/24
# 定义public network地址
public network = 192.168.1.0/24
# 指定本机的UUID
fsid = 019823c5-518e-4d7e-862c-46f828ec6275
# Monitor Daemon的IP地址
mon host = 192.168.1.11, 192.168.1.12, 192.168.1.13
# Monitor Daemon的主机名称
mon initial members = srv1, srv2, srv3
# 定义创建osd pool所使用的CRUSH算法(定义哪些OSD存放哪些对象)规则
# -1值:选择具有最小数字标识的规则并使用
osd pool default crush rule = -1

# 定义monitor,允许删除pool
[mon]
mon allow pool delete = true

3.3) 生成Cluster监控的秘钥
[root@srv1 ~]# ceph-authtool --create-keyring /etc/ceph/ceph.mon.keyring --gen-key -n mon. --cap mon 'allow *'
creating /etc/ceph/ceph.mon.keyring

3.4) 生成Cluster管理秘钥
[root@srv1 ~]# ceph-authtool --create-keyring /etc/ceph/ceph.client.admin.keyring \
 --gen-key -n client.admin \
 --cap mon 'allow *' --cap osd 'allow *' --cap mds 'allow *' --cap mgr 'allow *'
creating /etc/ceph/ceph.client.admin.keyring

3.5) 生成Bootstrap秘钥
[root@srv1 ~]# ceph-authtool --create-keyring /var/lib/ceph/bootstrap-osd/ceph.keyring \
 --gen-key -n client.bootstrap-osd \
 --cap mon 'profile bootstrap-osd' --cap mgr 'allow r'
creating /var/lib/ceph/bootstrap-osd/ceph.keyring

3.6) 导入秘钥
[root@srv1 ~]# ceph-authtool /etc/ceph/ceph.mon.keyring --import-keyring /etc/ceph/ceph.client.admin.keyring
importing contents of /etc/ceph/ceph.client.admin.keyring into /etc/ceph/ceph.mon.keyring

[root@srv1 ~]# ceph-authtool /etc/ceph/ceph.mon.keyring --import-keyring /var/lib/ceph/bootstrap-osd/ceph.keyring
importing contents of /var/lib/ceph/bootstrap-osd/ceph.keyring into /etc/ceph/ceph.mon.keyring

##################################################信息提示##################################################

1. 如果key设定错误，可通过以下命令查看密钥名称并删除指定密钥
[root@srv1 ~]# ceph auth list
installed auth entries:

mds.srv1
        key: AQCcHRVltQu5IRAANkAz0Ac10uRiKHLUERJLYQ==
        caps: [mds] allow
        caps: [mon] allow profile mds
        caps: [osd] allow rwx
......
......
......
......
......
......

[root@srv1 ~]# ceph auth mds.srv1

##################################################信息结束##################################################

3.7) 生成Monitor Map
[root@srv1 ~]# FSID=$(grep "^fsid" /etc/ceph/ceph.conf | awk {'print $NF'})
[root@srv1 ~]# monmaptool --create --add srv1 192.168.1.11 --add srv2 192.168.1.12 --add srv3 192.168.1.13 --fsid $FSID /etc/ceph/monmap
monmaptool: monmap file /etc/ceph/monmap
monmaptool: set fsid to 019823c5-518e-4d7e-862c-46f828ec6275
monmaptool: writing epoch 0 to /etc/ceph/monmap (3 monitors)

# 显示对应的Map信息
[root@srv1 ~]# monmaptool --print /etc/ceph/monmap
monmaptool: monmap file /etc/ceph/monmap
epoch 0
fsid 019823c5-518e-4d7e-862c-46f828ec6275
last_changed 2023-07-14 15:56:04.105901
created 2023-07-14 15:56:04.105901
min_mon_release 0 (unknown)
0: v1:192.168.1.11:6789/0 mon.srv1
1: v1:192.168.1.12:6789/0 mon.srv2
2: v1:192.168.1.13:6789/0 mon.srv3

################################################## 信息汇总 ##################################################
# 如果打算后面继续增加Mon/Mgr节点，可使用以下命令:
root@srv1:~# monmaptool --add srv10 192.168.1.20 --add srv21 192.168.1.21 --fsid $FSID /etc/ceph/monmap

# 如果monmaptool添加错误，可进行删除
root@srv1:~# monmaptool --rm srv20 --rm srv21 --fsid $FSID /etc/ceph/monmap

################################################## 汇总结束 ##################################################

3.8) 为所有的Monitor Daemon创建一个目录[目录格式为:集群名-主机名]
[root@srv1 ~]# mkdir /var/lib/ceph/mon/ceph-srv1
[root@srv2 ~]# mkdir /var/lib/ceph/mon/ceph-srv2
[root@srv3 ~]# mkdir /var/lib/ceph/mon/ceph-srv3

3.9) 为Mon Daemon关联key及Mon Map
[root@srv1 ~]# ceph-mon --cluster ceph --mkfs -i srv1 --monmap /etc/ceph/monmap --keyring /etc/ceph/ceph.mon.keyring

[root@srv1 ~]# chown ceph. /etc/ceph/ceph.*

[root@srv1 ~]# chown -R ceph. /var/lib/ceph/mon/ceph-srv1 /var/lib/ceph/bootstrap-osd

[root@srv1 ~]# for cephnode in srv2 srv3
do
  scp /etc/ceph/ceph.conf /etc/ceph/ceph.mon.keyring /etc/ceph/monmap /etc/ceph/ceph.client.admin.keyring $cephnode:/etc/ceph/
  ssh $cephnode "ceph-mon --cluster ceph --mkfs -i $cephnode --monmap /etc/ceph/monmap --keyring /etc/ceph/ceph.mon.keyring"
  ssh $cephnode "chown -R ceph. /etc/ceph /var/lib/ceph/mon/ceph-$cephnode /var/lib/ceph/bootstrap-osd"
done

3.10) 启动ceph-mon服务
[root@srv1 ~]# systemctl enable --now ceph-mon@srv1
[root@srv2 ~]# systemctl enable --now ceph-mon@srv2
[root@srv3 ~]# systemctl enable --now ceph-mon@srv3

3.11) 其他配置
# 所有mon节点,开启Messenger v2协议
[root@srv1 ~]# ceph mon enable-msgr2
[root@srv2 ~]# ceph mon enable-msgr2
[root@srv3 ~]# ceph mon enable-msgr2

# 所有mon节点,启动自动缩放模块
[root@srv1 ~]# ceph mgr module enable pg_autoscaler --force
[root@srv2 ~]# ceph mgr module enable pg_autoscaler --force
[root@srv3 ~]# ceph mgr module enable pg_autoscaler --force

3.12) 配置并启动Manager Daemon
# 为Manager Daemon创建目录[格式为:集群名-主机名]
[root@srv1 ~]# mkdir /var/lib/ceph/mgr/ceph-srv1
[root@srv2 ~]# mkdir /var/lib/ceph/mgr/ceph-srv2
[root@srv3 ~]# mkdir /var/lib/ceph/mgr/ceph-srv3

# 创建认证秘钥
[root@srv1 ~]# ceph auth get-or-create mgr.srv1 mon 'allow profile mgr' osd 'allow *' mds 'allow *'
[mgr.srv1]
        key = AQCHA7FkB2RYIhAAnghox+n3O1eYZ8acoCcfyA==

[root@srv1 ~]# ceph auth get-or-create mgr.srv1 > /etc/ceph/ceph.mgr.admin.keyring
[root@srv1 ~]# cp /etc/ceph/ceph.mgr.admin.keyring /var/lib/ceph/mgr/ceph-srv1/keyring
[root@srv1 ~]# chown ceph. /etc/ceph/ceph.mgr.admin.keyring
[root@srv1 ~]# chown -R ceph. /var/lib/ceph/mgr/ceph-srv1

[root@srv1 ~]# systemctl enable --now ceph-mgr@srv1

# 为Mgr节点建立主备关系
root@srv1:~# for cephnode in srv2 srv3
do
 ssh $cephnode "ceph auth get-or-create mgr.$cephnode mon 'allow profile mgr' osd 'allow *' mds 'allow *'"
 ssh $cephnode "ceph auth get-or-create mgr.$cephnode > /etc/ceph/ceph.mgr.admin.keyring"
 ssh $cephnode "mkdir /var/lib/ceph/mgr/ceph-$cephnode"
 ssh $cephnode "cp /etc/ceph/ceph.mgr.admin.keyring /var/lib/ceph/mgr/ceph-$cephnode/keyring"
 ssh $cephnode "chown ceph. /etc/ceph/ceph.mgr.admin.keyring"
 ssh $cephnode "chown -R ceph. /var/lib/ceph/mgr/ceph-$cephnode"
 ssh $cephnode "systemctl enable --now ceph-mgr@$cephnode"
done

3.13) Firewalld配置
[root@srv1 ~]# firewall-cmd --add-service=ceph-mon --permanent
success
[root@srv1 ~]# firewall-cmd --reload
success

3.14) 验证Ceph集群.确认Mon及Manager Daemon启动
# 因没有加入OSD，因此集群状态为HEALTH_WARN,属于正常
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_WARN
            OSD count 0 < osd_pool_default_size 3
            mons are allowing insecure global_id reclaim

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 6m)
    mgr: srv1(active, since 2m), standbys: srv2, srv3
    osd: 0 osds: 0 up, 0 in

  data:
    pools:   0 pools, 0 pgs
    objects: 0 objects, 0 B
    usage:   0 B used, 0 B / 0 B avail
    pgs:

1.3 配置加OSD

1) 防火请配置
[root@srv1 ~]# for ALLNODE in srv4 srv5 srv6
do
    ssh $ALLNODE "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"
done

2) 为所有节点配置OSD
[root@srv1 ~]# for ALLNODE in srv4 srv5 srv6
do
    # 如果不是ALL-in-one(即:架构不是MGR+MON+OSD)，可不用写 if [ ! ${ALLNODE} = "srv1" ]
    if [ ! ${ALLNODE} = "srv1" ]
    then
        scp /etc/ceph/ceph.conf ${ALLNODE}:/etc/ceph/ceph.conf
        scp /etc/ceph/ceph.client.admin.keyring ${ALLNODE}:/etc/ceph
        scp /var/lib/ceph/bootstrap-osd/ceph.keyring ${ALLNODE}:/var/lib/ceph/bootstrap-osd
    fi
    ssh $ALLNODE \
    "chown ceph. /etc/ceph/ceph.* /var/lib/ceph/bootstrap-osd/*; \
    parted --script /dev/sdb 'mklabel gpt'; \
    parted --script /dev/sdb "mkpart primary 0% 100%"; \
    ceph-volume lvm create --data /dev/sdb1"
done

Running command: /usr/bin/ceph-authtool --gen-print-key
Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring -i - osd new 371
6b4ad-ccde-4609-a30d-a5b1c46c01f9
Running command: /usr/sbin/vgcreate --force --yes ceph-ae54b17d-99e4-423e-a4ec-b70c6222dfe3 /dev/sda1
 stdout: Physical volume "/dev/sda1" successfully created.
 stdout: Volume group "ceph-ae54b17d-99e4-423e-a4ec-b70c6222dfe3" successfully created
Running command: /usr/sbin/lvcreate --yes -l 100%FREE -n osd-block-3716b4ad-ccde-4609-a30d-a5b1c46c01f9 ceph-ae54b17d-99e4-423e-a4ec-b70c6222dfe3
......
......
......
......
......
......
--> ceph-volume lvm activate successful for osd ID: 2
--> ceph-volume lvm create successful for: /dev/sdb1

3) 验证ceph集群
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 17m)
    mgr: srv1(active, since 13m), standbys: srv2, srv3
    osd: 3 osds: 3 up (since 3m), 3 in (since 3m)

  data:
    pools:   0 pools, 0 pgs
    objects: 0 objects, 0 B
    usage:   3.0 GiB used, 93 GiB / 96 GiB avail
    pgs:

##################################################错误汇总##################################################

# 如果出现错误1
[root@srv1 ~]# ceph health
HEALTH_WARN mon is allowing insecure global_id reclaim; Module 'restful' has failed dependency: No module named 'pecan'

# 解决办法
[root@srv1 ~]# pip3 install pecan werkzeug cherrypy ; reboot


# 如果出现错误2
[root@srv1 ~]# ceph health
HEALTH_WARN mon is allowing insecure global_id reclaim

# 解决办法
[root@srv1 ~]# ceph config set mon auth_allow_insecure_global_id_reclaim false

##################################################汇总结束##################################################

4) 验证OSD树
[root@srv1 ~]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME     STATUS REWEIGHT PRI-AFF
-1       0.09357 root default
-3       0.03119     host srv4
 0   hdd 0.03119         osd.0     up  1.00000 1.00000
-5       0.03119     host srv5
 1   hdd 0.03119         osd.1     up  1.00000 1.00000
-7       0.03119     host srv6
 2   hdd 0.03119         osd.2     up  1.00000 1.00000

[root@srv1 ~]# ceph df
RAW STORAGE:
    CLASS     SIZE       AVAIL      USED        RAW USED     %RAW USED
    hdd       96 GiB     93 GiB     5.4 MiB      3.0 GiB          3.13
    TOTAL     96 GiB     93 GiB     5.4 MiB      3.0 GiB          3.13

POOLS:
    POOL     ID     PGS     STORED     OBJECTS     USED     %USED     MAX AVAIL

[root@srv1 ~]# ceph osd df
ID CLASS WEIGHT  REWEIGHT SIZE   RAW USE DATA    OMAP META  AVAIL  %USE VAR  PGS STATUS
 0   hdd 0.03119  1.00000 32 GiB 1.0 GiB 1.8 MiB  0 B 1 GiB 31 GiB 3.13 1.00   0     up
 1   hdd 0.03119  1.00000 32 GiB 1.0 GiB 1.8 MiB  0 B 1 GiB 31 GiB 3.13 1.00   0     up
 2   hdd 0.03119  1.00000 32 GiB 1.0 GiB 1.8 MiB  0 B 1 GiB 31 GiB 3.13 1.00   0     up
                    TOTAL 96 GiB 3.0 GiB 5.2 MiB  0 B 3 GiB 93 GiB 3.13
MIN/MAX VAR: 1.00/1.00  STDDEV: 0

2. Ceph块设备的使用

1) 将srv1的ssh-key传输至client节点
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv9

2) 给client节点安装一些必要的软件
[root@srv1 ~]# ssh srv9 "yum install centos-release-ceph-nautilus epel-release -y"
[root@srv1 ~]# ssh srv9 "yum install ceph-common -y"

3) 将ceph集群配置文件及秘钥复制到client节点
[root@srv1 ~]# scp /etc/ceph/ceph.conf srv9:/etc/ceph/
[root@srv1 ~]# scp /etc/ceph/ceph.client.admin.keyring srv9:/etc/ceph/
[root@srv1 ~]# ssh srv9 "chown ceph. /etc/ceph/ceph.*"

4) 在client节点[srv9]创建块存储并挂载
# 创建默认的RBD pool(pool name: rbd)
[root@srv9 ~]# ceph osd pool create rbd 32
pool 'rbd' created

# 启动自动缩放模块
[root@srv9 ~]# ceph osd pool set rbd pg_autoscale_mode on
set pool 1 pg_autoscale_mode to on

# 初始化pool
[root@srv9 ~]# rbd pool init rbd

[root@srv9 ~]# ceph osd pool autoscale-status
POOL   SIZE TARGET SIZE RATE RAW CAPACITY  RATIO TARGET RATIO EFFECTIVE RATIO BIAS PG_NUM NEW PG_NUM AUTOSCALE
rbd      9               3.0       98292M 0.0000                               1.0     32            on

5) 创建一个5G的块存储[即:image](创建设备名为:rbd1)
[root@srv9 ~]# rbd create --size 5G --pool rbd rbd1
[root@srv9 ~]# rbd ls -l
NAME  SIZE   PARENT  FMT  PROT  LOCK
rbd1  5 GiB            2

6) 映射rbd1并验证
[root@srv9 ~]# rbd feature disable rbd1 object-map fast-diff deep-flatten

[root@srv9 ~]# rbd map rbd1
/dev/rbd0

[root@srv9 ~]# rbd showmapped
id  pool  namespace  image  snap  device
0   rbd              rbd1   -     /dev/rbd0

[root@srv9 ~]# ll /dev/rbd0
brw-rw---- 1 root disk 253, 0 Jul 14 16:47 /dev/rbd0

7) 挂载并使用
[root@srv9 ~]# mkfs.ext4 /dev/rbd0
mke2fs 1.42.9 (28-Dec-2013)
Discarding device blocks: done
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=1024 blocks, Stripe width=1024 blocks
327680 inodes, 1310720 blocks
65536 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=1342177280
40 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
        32768, 98304, 163840, 229376, 294912, 819200, 884736

Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done

[root@srv9 ~]# mount /dev/rbd0 /mnt/
[root@srv9 ~]# df -Th /mnt
Filesystem     Type  Size  Used Avail Use% Mounted on
/dev/rbd0      ext4  4.8G   20M  4.6G   1% /mnt

[root@srv9 ~]# echo "hello 1000y.cloud world" > /mnt/hello.txt
[root@srv9 ~]# cat /mnt/hello.txt
hello 1000y.cloud world

8) 删除块设备
[root@srv9 ~]# umount /mnt
[root@srv9 ~]# rbd unmap /dev/rbd/rbd/rbd1
[root@srv9 ~]# rbd rm rbd1 -p rbd
Removing image: 100% complete...done.

[root@srv9 ~]# rbd ls -l
[root@srv9 ~]#

9) 删除pool
# 注意:删除pool必须在配置文件的[Montior Daemon]中声明:mon allow pool delete = true
# 语法格式ceph osd pool delete [pool-name] [pool-name] 参数
[root@srv9 ~]# ceph osd pool delete rbd rbd --yes-i-really-really-mean-it
pool 'rbd' removed

[root@srv9 ~]# ceph osd pool autoscale-status

3. 使用文件系统

1) 将srv1的ssh-key传输至client节点
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv9

2) 给client节点安装一些必要的软件
[root@srv1 ~]# ssh srv9 "yum install centos-release-ceph-nautilus epel-release -y"
[root@srv1 ~]# ssh srv9 "yum install ceph-fuse -y"

3) 将ceph集群配置文件及秘钥复制到client节点
[root@srv1 ~]# scp /etc/ceph/ceph.conf srv9:/etc/ceph/
[root@srv1 ~]# scp /etc/ceph/ceph.client.admin.keyring srv9:/etc/ceph/
[root@srv1 ~]# ssh srv9 "chown ceph. /etc/ceph/ceph.*"

4) 于srv1上配置MetaData Server(MDS)
# 创建MDS所需的目录。目录名称格式为:集群名-主机名
(1) srv1节点
[root@srv1 ~]# mkdir -p /var/lib/ceph/mds/ceph-srv1

[root@srv1 ~]# ceph-authtool --create-keyring /var/lib/ceph/mds/ceph-srv1/keyring --gen-key -n mds.srv1
creating /var/lib/ceph/mds/ceph-srv1/keyring

[root@srv1 ~]# chown -R ceph. /var/lib/ceph/mds/ceph-srv1

[root@srv1 ~]# ceph auth add mds.srv1 osd "allow rwx" mds "allow" mon "allow profile mds" -i /var/lib/ceph/mds/ceph-srv1/keyring
added key for mds.srv1

[root@srv1 ~]# systemctl enable --now ceph-mds@srv1

(2) srv2节点
[root@srv2 ~]# mkdir -p /var/lib/ceph/mds/ceph-srv2

[root@srv2 ~]# ceph-authtool --create-keyring /var/lib/ceph/mds/ceph-srv2/keyring --gen-key -n mds.srv2
creating /var/lib/ceph/mds/ceph-srv2/keyring

[root@srv2 ~]# chown -R ceph. /var/lib/ceph/mds/ceph-srv2

[root@srv2 ~]# ceph auth add mds.srv2 osd "allow rwx" mds "allow" mon "allow profile mds" -i /var/lib/ceph/mds/ceph-srv2/keyring
added key for mds.srv2

[root@srv2 ~]# systemctl enable --now ceph-mds@srv2

(3) srv3节点
[root@srv3 ~]# mkdir -p /var/lib/ceph/mds/ceph-srv3

[root@srv3 ~]# ceph-authtool --create-keyring /var/lib/ceph/mds/ceph-srv3/keyring --gen-key -n mds.srv3
creating /var/lib/ceph/mds/ceph-srv3/keyring

[root@srv3 ~]# chown -R ceph. /var/lib/ceph/mds/ceph-srv3

[root@srv3 ~]# ceph auth add mds.srv3 osd "allow rwx" mds "allow" mon "allow profile mds" -i /var/lib/ceph/mds/ceph-srv3/keyring
added key for mds.srv3

[root@srv3 ~]# systemctl enable --now ceph-mds@srv3

[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 51m)
    mgr: srv1(active, since 46m), standbys: srv2, srv3
    mds:  3 up:standby
    osd: 3 osds: 3 up (since 37m), 3 in (since 37m)

  data:
    pools:   0 pools, 0 pgs
    objects: 0 objects, 0 B
    usage:   3.0 GiB used, 93 GiB / 96 GiB avail
    pgs

5) 在MDS上为数据和MetaData创建2个RADOS池
[root@srv1 ~]# ceph osd pool create cephfs_data 32
pool 'cephfs_data' created

[root@srv1 ~]# ceph osd pool create cephfs_metadata 32
pool 'cephfs_metadata' created

[root@srv1 ~]# ceph fs new cephfs cephfs_metadata cephfs_data
new fs with metadata pool 3 and data pool 2

[root@srv1 ~]# ceph fs ls
name: cephfs, metadata pool: cephfs_metadata, data pools: [cephfs_data ]

[root@srv1 ~]# ceph mds stat
cephfs:1 {0=srv1=up:active} 2 up:standby

[root@srv1 ~]# ceph fs status cephfs
cephfs - 0 clients
======
+------+--------+------+---------------+-------+-------+
| Rank | State  | MDS  |    Activity   |  dns  |  inos |
+------+--------+------+---------------+-------+-------+
|  0   | active | srv1 | Reqs:    0 /s |   10  |   13  |
+------+--------+------+---------------+-------+-------+
+-----------------+----------+-------+-------+
|       Pool      |   type   |  used | avail |
+-----------------+----------+-------+-------+
| cephfs_metadata | metadata | 1536k | 29.3G |
|   cephfs_data   |   data   |    0  | 29.3G |
+-----------------+----------+-------+-------+
+-------------+
| Standby MDS |
+-------------+
|     srv3    |
|     srv2    |
+-------------+
MDS version: ceph version 14.2.20 (36274af6eb7f2a5055f2d53ad448f2694e9046a0) nautilus (stable)

[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 54m)
    mgr: srv1(active, since 50m), standbys: srv2, srv3
    mds: cephfs:1 {0=srv1=up:active} 2 up:standby
    osd: 3 osds: 3 up (since 40m), 3 in (since 40m)

  task status:
    scrub status:
        mds.srv1: idle

  data:
    pools:   2 pools, 64 pgs
    objects: 22 objects, 2.2 KiB
    usage:   3.0 GiB used, 93 GiB / 96 GiB avail
    pgs:     64 active+clean

6) 使用CephFS
(1) 手动挂载
# 生成基于Base64的秘钥
[root@srv9 ~]# ceph-authtool -p /etc/ceph/ceph.client.admin.keyring > admin.key
[root@srv9 ~]# chmod 600 admin.key

[root@srv9 ~]# mount -t ceph srv1.1000y.cloud:6789:/ /mnt -o name=admin,secretfile=admin.key
[root@srv9 ~]# df -hT /mnt
Filesystem          Type  Size  Used Avail Use% Mounted on
192.168.1.11:6789:/ ceph   30G     0   30G   0% /mnt

(2) 自动挂载
[root@srv9 ~]# ceph-authtool -p /etc/ceph/ceph.client.admin.keyring > admin.key
[root@srv9 ~]# chmod 600 admin.key
[root@srv9 ~]# mv admin.key /etc/ceph/

[root@srv9 ~]# vim /etc/fstab
# 于文件最后，追加如下内容
......
......
......
......
......
......
192.168.1.11:6789:/     /var/www/html/  ceph    _netdev,name=admin,secretfile=/etc/ceph/admin.key 0 2

7) 删除CephFS
[root@srv9 ~]# umount /mnt

[root@srv1 ~]# systemctl disable --now ceph-mds@srv1

# 查看MDS主备切换的状态
[root@srv1 ~]# ceph fs status cephfs
cephfs - 0 clients
======
+------+--------+------+---------------+-------+-------+
| Rank | State  | MDS  |    Activity   |  dns  |  inos |
+------+--------+------+---------------+-------+-------+
|  0   | active | srv3 | Reqs:    0 /s |   10  |   13  |
+------+--------+------+---------------+-------+-------+
+-----------------+----------+-------+-------+
|       Pool      |   type   |  used | avail |
+-----------------+----------+-------+-------+
| cephfs_metadata | metadata | 1536k | 29.3G |
|   cephfs_data   |   data   |    0  | 29.3G |
+-----------------+----------+-------+-------+
+-------------+
| Standby MDS |
+-------------+
|     srv2    |
+-------------+
MDS version: ceph version 14.2.20 (36274af6eb7f2a5055f2d53ad448f2694e9046a0) nautilus (stable)

# 依次关闭所有的MDS服务
[root@srv2 ~]# systemctl disable --now ceph-mds@srv2
[root@srv3 ~]# systemctl disable --now ceph-mds@srv3

# 确认关闭
[root@srv1 ~]# ceph fs status cephfs
cephfs - 0 clients
======
+------+--------+-----+----------+-----+------+
| Rank | State  | MDS | Activity | dns | inos |
+------+--------+-----+----------+-----+------+
|  0   | failed |     |          |     |      |
+------+--------+-----+----------+-----+------+
+-----------------+----------+-------+-------+
|       Pool      |   type   |  used | avail |
+-----------------+----------+-------+-------+
| cephfs_metadata | metadata | 1536k | 29.3G |
|   cephfs_data   |   data   |    0  | 29.3G |
+-----------------+----------+-------+-------+
+-------------+
| Standby MDS |
+-------------+
+-------------+
+---------+---------+
| version | daemons |
+---------+---------+
+---------+---------+

# 删除CEPH FS
[root@srv1 ~]# ceph fs rm cephfs --yes-i-really-mean-it
[root@srv1 ~]# ceph osd pool delete cephfs_metadata cephfs_metadata --yes-i-really-really-mean-it
pool 'cephfs_metadata' removed
[root@srv1 ~]# ceph osd pool delete cephfs_data cephfs_data --yes-i-really-really-mean-it
pool 'cephfs_data' removed

# 确认删除
[root@srv1 ~]# systemctl enable --now ceph-mds@srv1
[root@srv2 ~]# systemctl enable --now ceph-mds@srv2
[root@srv3 ~]# systemctl enable --now ceph-mds@srv3

[root@srv1 ~]# ceph fs ls
No filesystems enabled

4. Ceph Object Gateway

1) 在管理节点(srv1)上安装RADOSGW节点所需的软件
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv7
    Hostname srv7.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv7

[root@srv1 ~]# ssh srv7 "yum install centos-release-ceph-nautilus epel-release -y && yum install ceph-radosgw -y"

2) 在管理节点(srv1)上配置RADOSGW节点
[root@srv1 ~]# vim /etc/ceph/ceph.conf
......
......
......
......
......
......

# 于文档最后追加如下内容
# 定义rgw.格式为client.rgw.节点名
[client.rgw.srv7]
host = 192.168.1.17
# 定义监听端口
rgw frontends = "civetweb port=8080"
# 定义FQDN
rgw dns name = srv7.1000y.cloud

[root@srv1 ~]# scp /etc/ceph/ceph.conf srv7:/etc/ceph/
[root@srv1 ~]# scp /etc/ceph/ceph.client.admin.keyring srv7:/etc/ceph/

# 配置RADOSGW
# 无防火墙配置
[root@srv1 ~]# ssh srv7 \
 "mkdir -p /var/lib/ceph/radosgw/ceph-rgw.srv7; \
 ceph auth get-or-create client.rgw.srv7 osd 'allow rwx' mon 'allow rw' -o /var/lib/ceph/radosgw/ceph-rgw.srv7/keyring; \
 chown ceph. /etc/ceph/ceph.*; \
 chown -R ceph. /var/lib/ceph/radosgw; \
 systemctl enable --now ceph-radosgw@rgw.srv7.service"

# 有防火墙配置
[root@srv1 ~]# ssh srv7 \
 "mkdir -p /var/lib/ceph/radosgw/ceph-rgw.srv7; \
 ceph auth get-or-create client.rgw.srv7 osd 'allow rwx' mon 'allow rw' -o /var/lib/ceph/radosgw/ceph-rgw.srv7/keyring; \
 chown ceph. /etc/ceph/ceph.*; \
 chown -R ceph. /var/lib/ceph/radosgw; \
 systemctl enable --now ceph-radosgw@rgw.srv7.service ; \
 firewall-cmd --add-port=8080/tcp --permanent; firewall-cmd --reload"

3) 验证RADOSGE状态
[root@srv1 ~]# curl srv7.1000y.cloud:8080
<?xml version="1.0" encoding="UTF-8"?><ListAllMyBucketsResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/"><Owner><ID>anonymous</ID><DisplayName></DisplayName></Owner><Buckets></Buckets></ListAllMyBucketsResult>

4) 在Object Gateway节点(srv4)上创建一个兼容S3的用户，用以对Object Gateway进行身份验证
[root@srv7 ~]# radosgw-admin user create --uid=snowchuai --display-name="Snow Chuai" --email=snow@1000y.cloud
{
    "user_id": "snowchuai",
    "display_name": "Snow Chuai",
    "email": "snow@1000y.cloud",
    "suspended": 0,
    "max_buckets": 1000,
    "subusers": [],
    "keys": [
        {
            "user": "snowchuai",
            "access_key": "2F04NMRQIISNVWJHVDV7",
            "secret_key": "aSkkMxurmWbunUZMuSeeQ9GJjBAgs2dES47IDaYB"
        }
    ],
    "swift_keys": [],
    "caps": [],
    "op_mask": "read, write, delete",
    "default_placement": "",
    "default_storage_class": "",
    "placement_tags": [],
    "bucket_quota": {
        "enabled": false,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": -1
    },
    "user_quota": {
        "enabled": false,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": -1
    },
    "temp_url_keys": [],
    "type": "rgw",
    "mfa_ids": []
}

# 显示所创建的用户
[root@srv7 ~]# radosgw-admin user info --uid=snowchuai
{
    "user_id": "snowchuai",
    "display_name": "Snow Chuai",
    "email": "snow@1000y.cloud",
    "suspended": 0,
    "max_buckets": 1000,
    "subusers": [],
    "keys": [
        {
            "user": "snowchuai",
            "access_key": "2F04NMRQIISNVWJHVDV7",
            "secret_key": "aSkkMxurmWbunUZMuSeeQ9GJjBAgs2dES47IDaYB"
        }
    ],
    "swift_keys": [],
    "caps": [],
    "op_mask": "read, write, delete",
    "default_placement": "",
    "default_storage_class": "",
    "placement_tags": [],
    "bucket_quota": {
        "enabled": false,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": -1
    },
    "user_quota": {
        "enabled": false,
        "check_on_raw": false,
        "max_size": -1,
        "max_size_kb": 0,
        "max_objects": -1
    },
    "temp_url_keys": [],
    "type": "rgw",
    "mfa_ids": []
}

[root@srv7 ~]# radosgw-admin user list
[
    "snowchuai"
]

# 如打算删除用户
[root@srv7 ~]# radosgw-admin user rm --uid=snowchuai

5) 创建Python3脚本进行验证访问S3
[root@srv9 ~]# yum --enablerepo=epel install python-boto3 -y

[root@srv9 ~]# vim s3-test.py
import sys
import boto3
from botocore.config import Config

# 设定访问密码(访问密码参看用户创建反馈的信息access_key及secret_key字段)
session = boto3.session.Session(
    aws_access_key_id = '2F04NMRQIISNVWJHVDV7',
    aws_secret_access_key = 'aSkkMxurmWbunUZMuSeeQ9GJjBAgs2dES47IDaYB'
)

# Object Gateway URL
s3client = session.client(
    's3',
    endpoint_url = 'http://192.168.1.17:8080',
    config = Config()
)

# 创建snow-new-bucket
bucket = s3client.create_bucket(Bucket = 'snow-new-bucket')

# 显示bucket
print(s3client.list_buckets())

# 移除snow-new-bucket
s3client.delete_bucket(Bucket = 'snow-new-bucket')

6) 访问验证
[root@srv9 ~]# python2 s3-test.py
# 以下为输出
{u'Owner': {u'DisplayName': 'Snow Chuai', u'ID': 'snowchuai'}, u'Buckets': [{u'CreationDate': datetime.datetime(2023, 7, 14,
9, 31, 31, 767000, tzinfo=tzutc()), u'Name': 'snow-new-bucket'}], 'ResponseMetadata': {'HTTPStatusCode': 200, 'RetryAttempts':
0, 'HostId': '', 'RequestId': 'tx000000000000000000003-0064b115f6-5fd5-default', 'HTTPHeaders': {'transfer-encoding': 'chunked',
'date': 'Fri, 14 Jul 2023 09:31:34 GMT', 'x-amz-request-id': 'tx000000000000000000003-0064b115f6-5fd5-default', 'content-type':
'application/xml'}}}

5. 开启DashBoard

1) 于Admin节点(srv1)上安装ashBoard软件并开启Dashboard模块
[root@srv1 ~]# yum --enablerepo=epel install ceph-mgr-dashboard -y

[root@srv1 ~]# ceph mgr module enable dashboard --force
[root@srv1 ~]# ceph mgr module ls | grep -A 5 enabled_modules
    "enabled_modules": [
        "dashboard",
        "iostat",
        "pg_autoscaler",
        "restful"
    ],

2) 创建安全证书
[root@srv1 ~]# ceph dashboard create-self-signed-cert
Self-signed certificate created

3) 创建管理账户
[root@srv1 ~]# echo 123456 > password.txt

语法格式:ceph dashboard ac-user-create (账户名) -i (密码本) administrator
[root@srv1 ~]# ceph dashboard ac-user-create snowchuai -i password.txt administrator
{"username": "snowchuai", "lastUpdate": 1689327321, "name": null, "roles": ["administrator"], "password":
"$2b$12$XtPdocQ.eJLzPoBWnFK4W.Wr5SW2YBKb5xk/E7nkvxG9YZhW0HEhy", "email": null}

4) 获取DashBoard的URL
[root@srv1 ~]# ceph mgr services
{
    "dashboard": "https://srv1.1000y.cloud:8443/"
}

5) 防火墙设置
[root@srv1 ~]# firewall-cmd --add-port=8443/tcp --permanent
[root@srv1 ~]# firewall-cmd --reload

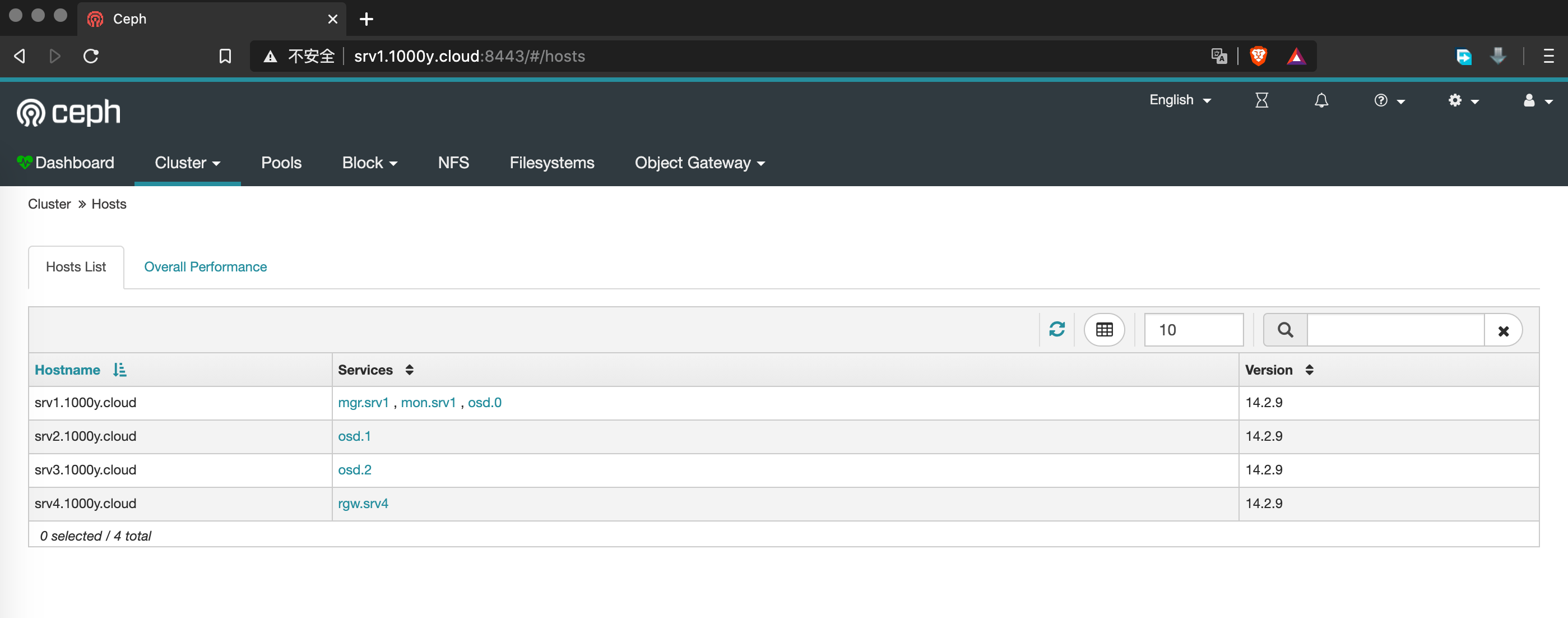

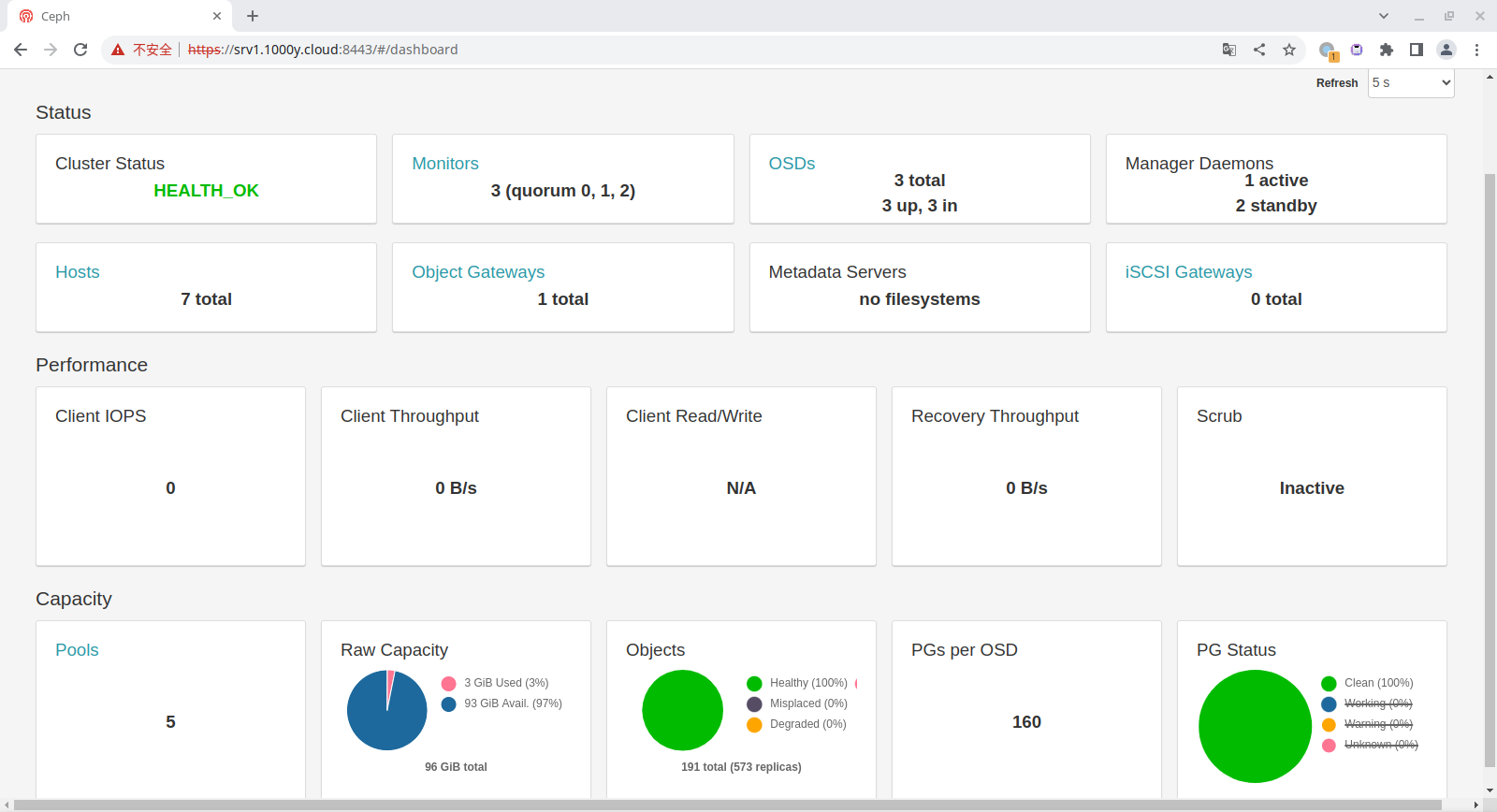

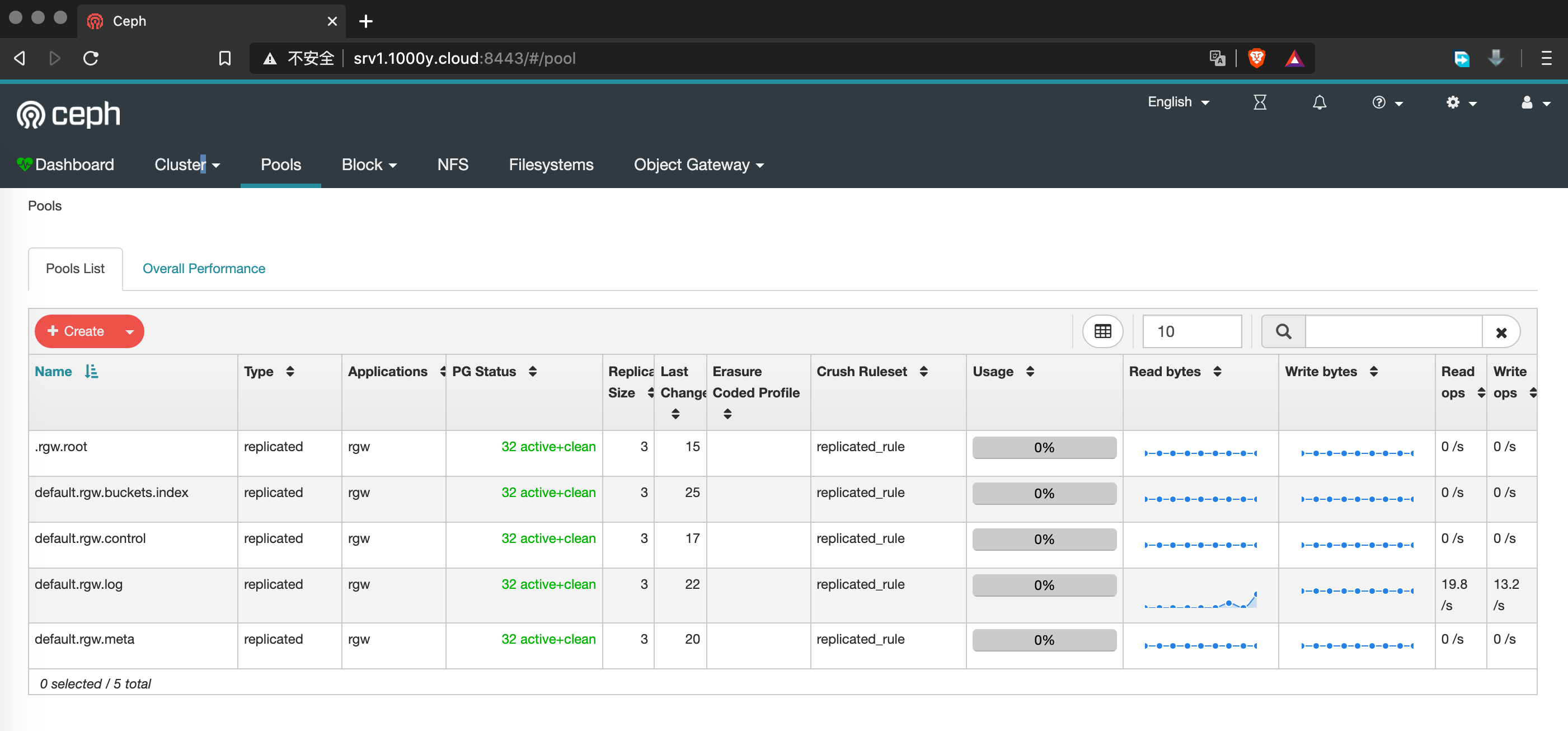

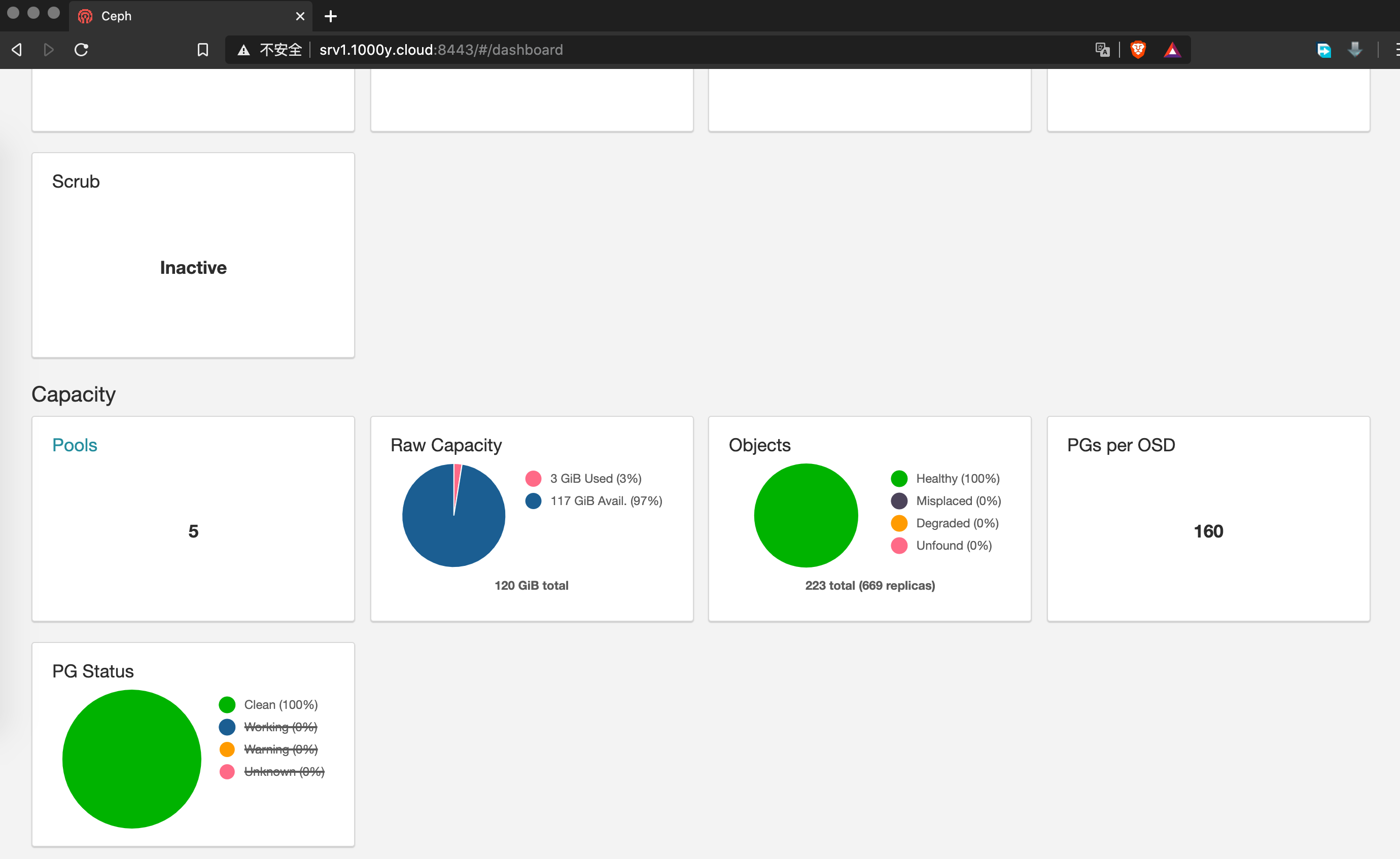

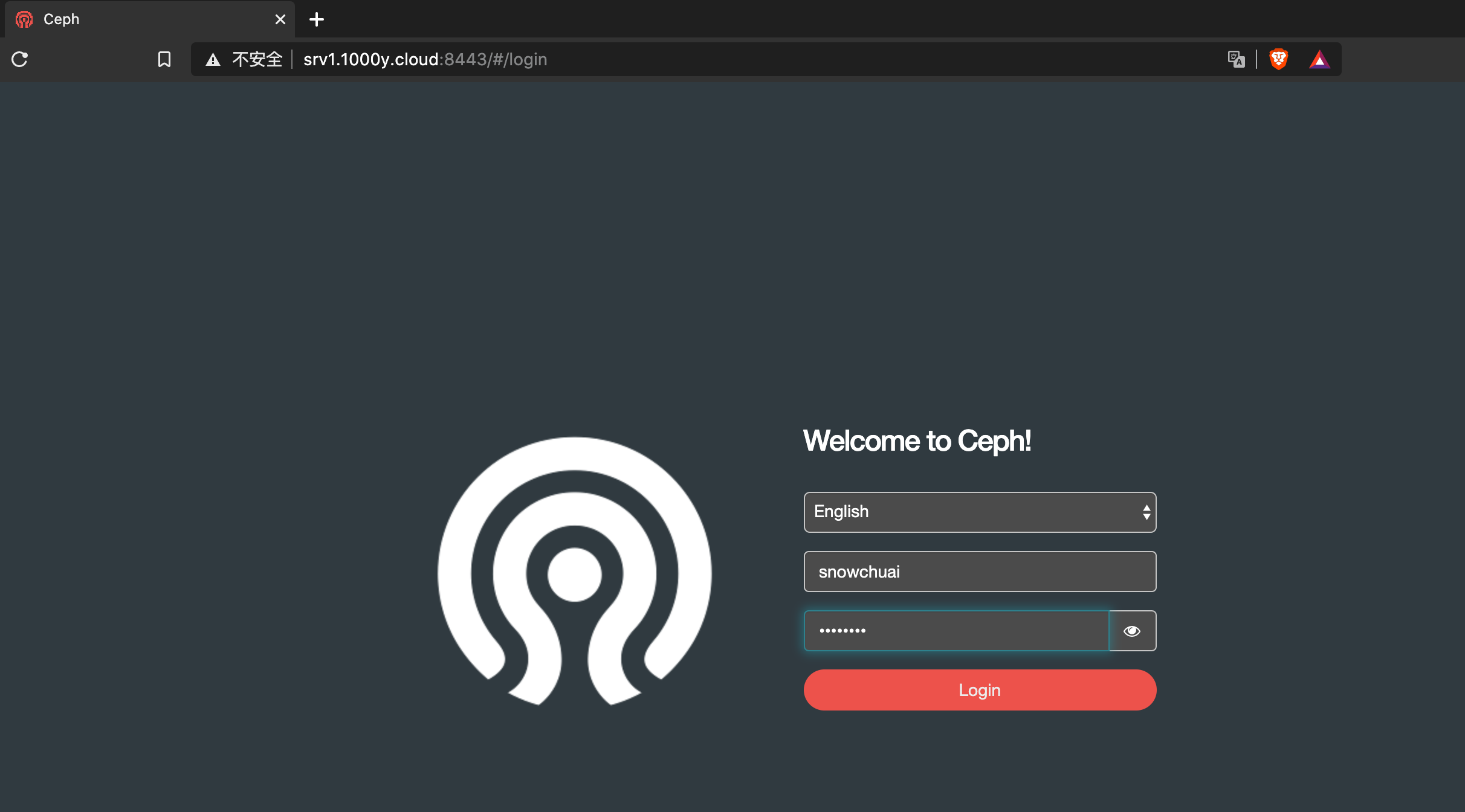

6) 访问DashBoard
[浏览器]===>https://srv1.1000y.cloud:8443

6. 添加/删除OSD

1) 于Admin节点(srv1)上添加OSD节点(srv8)
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv7
    Hostname srv7.1000y.cloud
    User root
Host srv8
    Hostname srv8.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv8

# 配置srv8防火墙规则
[root@srv1 ~]# ssh srv8 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"

[root@srv1 ~]# ssh srv8 "yum install centos-release-ceph-nautilus epel-release -y; yum install ceph python-enum34 -y"

[root@srv1 ~]# scp /etc/ceph/ceph.conf srv8:/etc/ceph/ceph.conf
[root@srv1 ~]# scp /etc/ceph/ceph.client.admin.keyring srv8:/etc/ceph
[root@srv1 ~]# scp /var/lib/ceph/bootstrap-osd/ceph.keyring srv8:/var/lib/ceph/bootstrap-osd

# 配置OSD
[root@srv1 ~]# ssh srv8 \
"chown ceph. /etc/ceph/ceph.* /var/lib/ceph/bootstrap-osd/*; \
parted --script /dev/sdb 'mklabel gpt'; \
parted --script /dev/sdb "mkpart primary 0% 100%"; \
ceph-volume lvm create --data /dev/sdb1"

Running command: /usr/bin/ceph-authtool --gen-print-key
Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring
 -i - osd new fb4306d1-ec4a-4e7c-ae08-7d6f9fb7fed6
......
......
......
......
......
......
Running command: /usr/bin/systemctl start ceph-osd@3
--> ceph-volume lvm activate successful for osd ID: 3
--> ceph-volume lvm create successful for: /dev/sdb1

# 验证
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 101m)
    mgr: srv1(active, since 18m), standbys: srv3, srv2
    mds:  3 up:standby
    osd: 4 osds: 4 up (since 59s), 4 in (since 59s)
    rgw: 1 daemon active (srv7)

  task status:

  data:
    pools:   5 pools, 160 pgs
    objects: 191 objects, 1.6 KiB
    usage:   4.0 GiB used, 124 GiB / 128 GiB avail
    pgs:     160 active+clean

2) 于Admin节点(srv1)上删除OSD节点(srv8)
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 101m)
    mgr: srv1(active, since 18m), standbys: srv3, srv2
    mds:  3 up:standby
    osd: 4 osds: 4 up (since 59s), 4 in (since 59s)
    rgw: 1 daemon active (srv7)

  task status:

  data:
    pools:   5 pools, 160 pgs
    objects: 191 objects, 1.6 KiB
    usage:   4.0 GiB used, 124 GiB / 128 GiB avail
    pgs:     160 active+clean


[root@srv1 ~]# ceph osd tree
ID  CLASS  WEIGHT   TYPE NAME      STATUS  REWEIGHT  PRI-AFF
-1         0.15637  root default
-3         0.03909      host srv1
 0    hdd  0.03909          osd.0      up   1.00000  1.00000
-5         0.03909      host srv2
 1    hdd  0.03909          osd.1      up   1.00000  1.00000
-7         0.03909      host srv3
 2    hdd  0.03909          osd.2      up   1.00000  1.00000
-9         0.03909      host srv5
 3    hdd  0.03909          osd.3      up   1.00000  1.00000

 # 指定要删除的OSD ID
[root@srv1 ~]# ceph osd out 3
marked out osd.3.

# 当进行ceph osd out操作时,系统会实时监视群集状态并自动执行平衡
# 要退出live watch，请按[Ctrl+c]
[root@srv1 ~]# ceph -w
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_WARN
            Degraded data redundancy: 41/573 objects degraded (7.155%), 10 pgs degraded

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 103m)
    mgr: srv1(active, since 19m), standbys: srv3, srv2
    mds:  3 up:standby
    osd: 4 osds: 4 up (since 2m), 3 in (since 20s)
    rgw: 1 daemon active (srv7)

  task status:

  data:
    pools:   5 pools, 160 pgs
    objects: 191 objects, 1.6 KiB
    usage:   3.0 GiB used, 93 GiB / 96 GiB avail
    pgs:     41/573 objects degraded (7.155%)
             1/573 objects misplaced (0.175%)
             146 active+clean
             10  active+recovery_wait+degraded
             3   active+recovery_wait
             1   active+recovering

  io:
    recovery: 96 B/s, 5 objects/s

  progress:
    Rebalancing after osd.3 marked out
      [==========================....]


2023-07-14 17:53:28.850550 mon.srv1 [WRN] Health check update: Degraded data redundancy: 41/573 objects degraded (7.155%), 10 pgs degraded (PG_DEGRADED)
2023-07-14 17:53:33.851339 mon.srv1 [WRN] Health check update: Degraded data redundancy: 8/573 objects degraded (1.396%), 3 pgs degraded (PG_DEGRADED)
2023-07-14 17:53:36.227769 mon.srv1 [INF] Health check cleared: PG_DEGRADED (was: Degraded data redundancy: 8/573 objects degraded (1.396%), 3 pgs degraded)
2023-07-14 17:53:36.227822 mon.srv1 [INF] Cluster is now healthy

# 退出
^c

# 确认集群状态
[root@srv1 ~]# ceph -s | grep health
    health: HEALTH_OK

# 当状态为HEALTH_OK后，停止srv8的OSD服务
[root@srv1 ~]# ssh srv8 "systemctl disable --now ceph-osd@3.service"

# 删除指定节点的OSD ID
[root@srv1 ~]# ceph osd purge 3 --yes-i-really-mean-it
purged osd.3

# 验证集群状态
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 105m)
    mgr: srv1(active, since 22m), standbys: srv3, srv2
    mds:  3 up:standby
    osd: 3 osds: 3 up (since 29s), 3 in (since 2m)
    rgw: 1 daemon active (srv7)

  task status:

  data:
    pools:   5 pools, 160 pgs
    objects: 191 objects, 1.6 KiB
    usage:   3.0 GiB used, 93 GiB / 96 GiB avail
    pgs:     160 active+clean

[root@srv1 ~]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME     STATUS REWEIGHT PRI-AFF
-1       0.09357 root default
-3       0.03119     host srv4
 0   hdd 0.03119         osd.0     up  1.00000 1.00000
-5       0.03119     host srv5
 1   hdd 0.03119         osd.1     up  1.00000 1.00000
-7       0.03119     host srv6
 2   hdd 0.03119         osd.2     up  1.00000 1.00000
-9             0     host srv8

3) 为OSD节点换盘
(1) 删除损坏的OSD

(2) 将OSD节点的坏盘物理摘除，并替换一块好的硬盘

(3) 将新的硬盘加入至OSD
[root@srv1 ~]# ssh srv8 \
"parted --script /dev/sdc 'mklabel gpt'; \
parted --script /dev/sdc "mkpart primary 0% 100%"; \
ceph-volume lvm create --data /dev/sdc1"

Running command: /usr/bin/ceph-authtool --gen-print-key
Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring
 -i - osd new fb4306d1-ec4a-4e7c-ae08-7d6f9fb7fed6
......
......
......
......
......
......
--> ceph-volume lvm activate successful for osd ID: 3
--> ceph-volume lvm create successful for: /dev/sdc1

# 验证
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 101m)
    mgr: srv1(active, since 18m), standbys: srv3, srv2
    mds:  3 up:standby
    osd: 4 osds: 4 up (since 59s), 4 in (since 59s)
    rgw: 1 daemon active (srv7)

  task status:

  data:
    pools:   5 pools, 160 pgs
    objects: 191 objects, 1.6 KiB
    usage:   4.0 GiB used, 124 GiB / 128 GiB avail
    pgs:     160 active+clean

[root@srv1 ~]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME     STATUS REWEIGHT PRI-AFF
-1       0.12476 root default
-3       0.03119     host srv4
 0   hdd 0.03119         osd.0     up  1.00000 1.00000
-5       0.03119     host srv5
 1   hdd 0.03119         osd.1     up  1.00000 1.00000
-7       0.03119     host srv6
 2   hdd 0.03119         osd.2     up  1.00000 1.00000
-9       0.03119     host srv8
 3   hdd 0.03119         osd.3     up  1.00000 1.00000

4) 删除OSD节点
(1) 移除OSD
[root@srv1 ~]# ceph osd out 3
marked out osd.3.

[root@srv1 ~]# ssh srv8 "systemctl disable --now ceph-osd@3.service"

[root@srv1 ~]# ceph osd purge 3 --yes-i-really-mean-it
purged osd.3

[root@srv1 ~]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME     STATUS REWEIGHT PRI-AFF
-1       0.09357 root default
-3       0.03119     host srv4
 0   hdd 0.03119         osd.0     up  1.00000 1.00000
-5       0.03119     host srv5
 1   hdd 0.03119         osd.1     up  1.00000 1.00000
-7       0.03119     host srv6
 2   hdd 0.03119         osd.2     up  1.00000 1.00000
-9             0     host srv8

(2) 删除OSD节点
[root@srv1 ~]# ceph osd crush remove srv8
removed item id -9 name 'srv8' from crush map

[root@srv1 ~]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME     STATUS REWEIGHT PRI-AFF
-1       0.09357 root default
-3       0.03119     host srv4
 0   hdd 0.03119         osd.0     up  1.00000 1.00000
-5       0.03119     host srv5
 1   hdd 0.03119         osd.1     up  1.00000 1.00000
-7       0.03119     host srv6
 2   hdd 0.03119         osd.2     up  1.00000 1.00000

################################################## 信息汇总 ##################################################

1) 删除主机---只是删除数据(/var/lib/ceph下的数据)，保留Ceph软件
[snow@node1 ceph]$ sudo ceph-deploy purgedata srv6
或
[snow@node1 ceph]$ sudo ceph-deploy purgedata srv6 srv7

2) 删除主机---即删除数据也删除软件
[snow@node1 ceph]$ sudo ceph-deploy purge srv6
或
[snow@node1 ceph]$ sudo ceph-deploy purge srv6 srv7

################################################## 汇总结束 ##################################################

7. CephFS+NFS-Ganesha

1) 前提: 必须存在ceph-fs pool

2) 于Srv1节点安装NFS-Ganesha
[root@srv1 ~]# yum install centos-release-nfs-ganesha30 -y
[root@srv1 ~]# sed -i -e "s/enabled=1/enabled=0/g" /etc/yum.repos.d/CentOS-NFS-Ganesha-30.repo
[root@srv1 ~]# yum --enablerepo=centos-nfs-ganesha30 install nfs-ganesha-ceph -y

3) 于Admin节点(srv1)配置并启动NFS-Ganesha
[root@srv1 ~]# mv /etc/ganesha/ganesha.conf /etc/ganesha/ganesha.conf.bak
[root@srv1 ~]# vim /etc/ganesha/ganesha.conf
NFS_CORE_PARAM {
    # 关闭NLM
    Enable_NLM = false;
    # 关闭RQUOTA(此功能不支持CephFS)
    Enable_RQUOTA = false;
    # 指定NFS协议为v4
    Protocols = 4;
}
EXPORT_DEFAULTS {
    # 定义NFS访问权限
    Access_Type = RW;
}
EXPORT {
    # 定义uniq ID为101
    Export_Id = 101;
    # 定义Ceph的挂载路径
    Path = "/";
    FSAL {
        name = CEPH;
        # 定义Admin节点(srv1)的IP或FQDN
        hostname="192.168.1.11";
    }
    # 设定root squash
    Squash="No_root_squash";
    # 设定NFSv4的Pseudo路径
    Pseudo="/vfs_ceph";
    # 定义NFS安全策略
    SecType = "sys";
}
LOG {
    # 定义日志记录级别:WARN及以上
    Default_Log_Level = WARN;
}

[root@srv1 ~]# systemctl enable --now nfs-ganesha

4) 于Admin节点(srv1)配置Firewalld规则--添加NFS规则
[root@srv1 ~]# firewall-cmd --add-service=nfs --permanent
success
[root@srv1 ~]# firewall-cmd --reload
success

5) 于srv1节点配置SELinux
[root@srv1 ~]# vim nfs-ganesha.te
module nfs-ganesha 1.0;

require {
        type cyphesis_port_t;
        type ganesha_t;
        class tcp_socket name_connect;
}

#============= ganesha_t ==============
allow ganesha_t cyphesis_port_t:tcp_socket name_connect;

[root@srv1 ~]# checkmodule -m -M -o nfs-ganesha.mod nfs-ganesha.te
[root@srv1 ~]# semodule_package --outfile nfs-ganesha.pp --module nfs-ganesha.mod
[root@srv1 ~]# semodule -i nfs-ganesha.pp

6) Client[Srv9]节点验证
[root@srv9 ~]# yum install nfs-utils -y

[root@srv9 ~]# mount -t nfs4 srv1.1000y.cloud:/vfs_ceph /mnt

[root@srv9 ~]# df -hT /mnt
Filesystem                 Type  Size  Used Avail Use% Mounted on
srv1.1000y.cloud:/vfs_ceph nfs4   30G     0   30G   0% /mnt

8. 配置Ceph Octopus--SSD缓存池及日志盘

8.1 添加新的OSD

1) 于Admin节点(srv1)上添加OSD节点(srv8)
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv7
    Hostname srv7.1000y.cloud
    User root
Host srv8
    Hostname srv8.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root
Host srv10
    Hostname srv10.1000y.cloud
    User root
Host srv11
    Hostname srv11.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv8
[root@srv1 ~]# ssh-copy-id srv10
[root@srv1 ~]# ssh-copy-id srv11

# 配置srv8防火墙规则
[root@srv1 ~]# ssh srv8 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"
[root@srv1 ~]# ssh srv10 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"
[root@srv1 ~]# ssh srv11 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"

# 安装软件源及ceph
[root@srv1 ~]# for node in srv8 srv10 srv11
do
ssh $node "yum install centos-release-ceph-nautilus epel-release -y; yum install ceph python-enum34 -y"
done

[root@srv1 ~]# for node in srv8 srv10 srv11
do
scp /etc/ceph/ceph.conf $node:/etc/ceph/ceph.conf
scp /etc/ceph/ceph.client.admin.keyring $node:/etc/ceph
scp /var/lib/ceph/bootstrap-osd/ceph.keyring $node:/var/lib/ceph/bootstrap-osd
done

# 配置OSD
[root@srv1 ~]# for node in srv8 srv10 srv11
do
ssh $node "chown ceph. /etc/ceph/ceph.* /var/lib/ceph/bootstrap-osd/*; \
parted --script /dev/sdb 'mklabel gpt'; \
parted --script /dev/sdb "mkpart primary 0% 100%"; \
ceph-volume lvm create --data /dev/sdb1"
done

Running command: /usr/bin/ceph-authtool --gen-print-key
Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring
......
......
......
......
......
......
--> ceph-volume lvm activate successful for osd ID: 5
--> ceph-volume lvm create successful for: /dev/sdc1

################################################## 信息汇总 ##################################################

# All-In-One架构添加OSD
[root@srv1 ~]# for ALLNODE in srv1 srv2 srv3
do
    if [ ! ${ALLNODE} = "srv1" ]
    then
        scp /etc/ceph/ceph.conf ${ALLNODE}:/etc/ceph/ceph.conf
        scp /etc/ceph/ceph.client.admin.keyring ${ALLNODE}:/etc/ceph
        scp /var/lib/ceph/bootstrap-osd/ceph.keyring ${ALLNODE}:/var/lib/ceph/bootstrap-osd
    fi
    ssh $ALLNODE \
    "chown ceph. /etc/ceph/ceph.* /var/lib/ceph/bootstrap-osd/*; \
    parted --script /dev/sdb 'mklabel gpt'; \
    parted --script /dev/sdc 'mklabel gpt'; \
    parted --script /dev/sdb "mkpart primary 0% 100%"; \
    parted --script /dev/sdc "mkpart primary 0% 100%"; \
    ceph-volume lvm create --data /dev/sdb1; \
    ceph-volume lvm create --data /dev/sdc1"
done

################################################## 汇总结束 ##################################################

# 验证
[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 3h)
    mgr: srv1(active, since 2h), standbys: srv3, srv2
    mds: cephfs:1 {0=srv1=up:active} 2 up:standby
    osd: 6 osds: 6 up (since 36s), 6 in (since 36s)
    rgw: 1 daemon active (srv7)

  task status:
    scrub status:
        mds.srv1: idle

  data:
    pools:   7 pools, 224 pgs
    objects: 213 objects, 6.3 KiB
    usage:   9.1 GiB used, 279 GiB / 288 GiB avail
    pgs:     224 active+clean

[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.06238     host srv10
  4   hdd 0.03119         osd.4      up  1.00000 1.00000
-13       0.06238     host srv11
  5   hdd 0.03119         osd.5      up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.06238     host srv8
  3   hdd 0.03119         osd.3      up  1.00000 1.00000

8.2 配置SSD缓存

1) 确认当前所有磁盘类型
[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.06238     host srv10
  5   hdd 0.03119         osd.4      up  1.00000 1.00000
-13       0.06238     host srv11
  7   hdd 0.03119         osd.5      up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.06238     host srv8
  3   hdd 0.03119         osd.3      up  1.00000 1.00000

[root@srv1 ~]# ceph osd crush class ls
[
    "hdd"
]

2) 将指定的磁盘移除并更改其类型为ssd[本案例为osd3,osd5,osd7]---[类型为hdd,ssd,nvme]
[root@srv1 ~]# for i in 3 4 5;
do
	ceph osd crush rm-device-class osd.$i;
done
done removing class of osd(s): 3
done removing class of osd(s): 4
done removing class of osd(s): 5

[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.06238     host srv10
  4       0.03119         osd.4      up  1.00000 1.00000
-13       0.06238     host srv11
  5       0.03119         osd.5      up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.06238     host srv8
  3       0.03119         osd.3      up  1.00000 1.00000

# 将osd3,osd5,osd7设置为ssd类
[root@srv1 ~]# for i in 3 4 5;
do
	ceph osd crush set-device-class ssd osd.$i;
done
set osd(s) 3 to class 'ssd'
set osd(s) 4 to class 'ssd'
set osd(s) 5 to class 'ssd'

[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.06238     host srv10
  4   ssd 0.03119         osd.4      up  1.00000 1.00000
-13       0.06238     host srv11
  5   ssd 0.03119         osd.5      up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.06238     host srv8
  3   ssd 0.03119         osd.3      up  1.00000 1.00000

[root@srv1 ~]# ceph osd crush class ls
[
    "hdd",
    "sdd"
]

3) 创建基于 ssd 的 class rule
[root@srv1 ~]# ceph osd crush rule create-replicated ssd_rule default host ssd

[root@srv1 ~]# ceph osd crush rule list
replicated_rule
ssd_rule

4) 创建基于 ssd 的 class rule
(1) 创建一个数据池---qyydata
[root@srv1 ~]# ceph osd pool create qyydata 16
pool 'qyydata' created

(2) 创建一个缓存池---qyycache
[root@srv1 ~]# ceph osd pool create qyycache 16 ssd_rule
pool 'qyycache' created

[root@srv1 ~]# ceph osd pool get qyycache crush_rule
crush_rule: ssd_rule

[root@srv1 ~]# ceph osd lspools
4 .rgw.root
5 default.rgw.control
6 default.rgw.meta
7 default.rgw.log
8 default.rgw.buckets.index
9 cephfs_data
10 cephfs_metadata
11 qyydata
12 qyycache

5) 设置缓存层
# 将 qyycache pool 放置到 qyydata pool 前端
[root@srv1 ~]# ceph osd tier add qyydata qyycache
pool 'qyycache' is now (or already was) a tier of 'qyydata'

# 设置缓存模式为 writeback
[root@srv1 ~]# ceph osd tier cache-mode qyycache writeback
set cache-mode for pool 'qyycache' to writeback

# 将所有客户端请求从标准池引导至缓存池
[root@srv1 ~]# ceph osd tier set-overlay qyydata qyycache
overlay for 'qyydata' is now (or already was) 'qyycache'


# 如果打算将缓存池设置为Read Only,可按以下操作
# 将 cache pool 放置到 data pool 前端
[root@srv1 ~]# ceph osd tier add qyydata qyycache

# 设置缓存模式为 readonly
[root@srv1 ~]# ceph osd tier cache-mode qyycache readonly


6) 查看 qyydata pool 和 qyycache pool 的详细信息
[root@srv1 ~]# ceph osd dump |egrep 'qyydata|qyycache'
pool 11 'qyydata' replicated size 3 min_size 2 crush_rule 0 object_hash rjenkins pg_num 16 pgp_num 16 autoscale_mode warn
last_change 144 lfor 144/144/144 flags hashpspool tiers 12 read_tier 12 write_tier 12 stripe_width 0
pool 12 'qyycache' replicated size 3 min_size 2 crush_rule 1 object_hash rjenkins pg_num 16 pgp_num 16 autoscale_mode warn
last_change 144 lfor 144/144/144 flags hashpspool,incomplete_clones tier_of 11 cache_mode writeback stripe_width 0

7) 对缓存进行基本设置
# 设置缓存层hit_set_type使用bloom过滤器
[root@srv1 ~]# ceph osd pool set qyycache hit_set_type bloom
set pool 12 hit_set_type to bloom

# 默认情况下缓冲池基于数据的修改时间来进行确定是否命中缓存，也可以设定热度数hit_set_count和热度周期hit_set_period，以及最大缓冲数据target_max_bytes。
hit_set_count 和 hit_set_period 选项分别定义了 HitSet 覆盖的时间区间、以及保留多少个这样的 HitSet，保留一段时间以来的访问记录，这样 Ceph 就能判断一客户端在一段时间内访问了某对象一次、还是多次（存活期与热度）。
[root@srv1 ~]# ceph osd pool set qyycache hit_set_count 1
set pool 12 hit_set_count to 1
[root@srv1 ~]# ceph osd pool set qyycache hit_set_period 3600
set pool 12 hit_set_period to 3600    # 1 小时

[root@srv1 ~]# ceph osd pool set qyycache target_max_bytes 1073741824
set pool 12 target_max_bytes to 1073741824    # 1 GB

# 指定确定的数据对象数量或者确定的数据容量。对缓冲池设定最大的数据容量，来强制触发刷写和驱逐操作
[root@srv1 ~]# ceph osd pool set qyycache target_max_objects 10000
set pool 12 target_max_objects to 10000

# 设置min_read_recency_for_promete、min_write_recency_for_promote

缓存池代理层两大主要操作:
•刷写（flushing）：负责把已经被修改的对象写入到后端慢存储，但是对象依然在缓冲池。
•驱逐（evicting）：负责在缓冲池里销毁那些没有被修改的对象。

	缓冲池代理层进行刷写和驱逐的操作，主要和缓冲池本身的容量有关。在缓冲池里，如果被修改的数据达到一个阈值（阈值（容量百分比），缓冲池代理就开始把这些数据刷写到后端慢存储。当缓冲池里被修改的数据达到40%时，则触发刷写动作。
[root@srv1 ~]# ceph osd pool set qyycache min_read_recency_for_promote 1
set pool 2 min_read_recency_for_promote to 1

[root@srv1 ~]# ceph osd pool set qyycache min_write_recency_for_promote 1
set pool 3 min_write_recency_for_promote to 1

[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 4h)
    mgr: srv1(active, since 2h), standbys: srv3, srv2
    mds: cephfs:1 {0=srv1=up:active} 2 up:standby
    osd: 6 osds: 6 up (since 3m), 6 in (since 4m)
    rgw: 1 daemon active (srv7)

  task status:
    scrub status:
        mds.srv1: idle

  data:
    pools:   9 pools, 256 pgs
    objects: 213 objects, 6.3 KiB
    usage:   6.1 GiB used, 186 GiB / 192 GiB avail
    pgs:     256 active+clean

8.3 客户端配置

1) 在客户端[srv9]处进行划分rbd
[root@srv9 ~]# ceph osd lspools
4 .rgw.root
5 default.rgw.control
6 default.rgw.meta
7 default.rgw.log
8 default.rgw.buckets.index
9 cephfs_data
10 cephfs_metadata
11 qyydata
12 qyycache

[root@srv9 ~]# rbd pool init qyydata

# 创建名为rbd1的image
[root@srv9 ~]# rbd -p qyydata create rbd1 --size 2G --image-feature layering

[root@srv9 ~]# rbd -p qyydata ls -l
NAME SIZE  PARENT FMT PROT LOCK
rbd1 2 GiB          2

2) 映射
[root@srv9 ~]# rbd map -p qyydata rbd1
/dev/rbd0

root@srv4:~# rbd showmapped
id pool    namespace image snap device
0  qyydata           rbd1  -    /dev/rbd0

3) 使用
root@srv4:~# mkfs.ext4 /dev/rbd0

root@srv4:~# mount /dev/rbd0 /mnt
root@srv4:~# df -Th /mnt
Filesystem     Type  Size  Used Avail Use% Mounted on
/dev/rbd0      ext4  2.0G  6.0M  1.8G   1% /mnt

8.4 ssd缓存池的其他操作

1) 删除writeback缓存池
[root@srv1 ~]# ceph osd tier cache-mode qyycache forward --yes-i-really-mean-it

2) 查看缓存池以确保所有的对象都被刷新（这可能需要点时间）
[root@srv1 ~]# rados -p qyycache ls

3) 如果缓存池中仍然有对象，也可以手动刷新
[root@srv1 ~]# rados -p qyycache cache-flush-evict-all

4) 删除覆盖层,以使客户端不再将流量引导至缓存
[root@srv1 ~]# ceph osd tier remove-overlay qyydata

5) 解除存储池与缓存池的绑定存
[root@srv1 ~]# ceph osd tier remove qyydata qyycache

6) 缓存池的相关参数配置
(1) 命中集合过滤器，默认为 Bloom 过滤器
[root@srv1 ~]# ceph osd pool set qyycache hit_set_type bloom

[root@srv1 ~]# ceph osd pool set qyycache hit_set_count 1

# 设置 Bloom 过滤器的误报率
[root@srv1 ~]# ceph osd pool set qyycache hit_set_fpp 0.15

# 设置缓存有效期,单位：秒
[root@srv1 ~]# ceph osd pool set qyycache hit_set_period 3600

(2) 置当缓存池中的数据达到多少个字节或者多少个对象时，缓存分层代理就开始从缓存池刷新对象至后端存储池并驱逐
# 当缓存池中的数据量达到1GB时开始刷盘并驱逐
[root@srv1 ~]# ceph osd pool set qyycache target_max_bytes 1073741824

# 当缓存池中的对象个数达到1万时开始刷盘并驱逐
[root@srv1 ~]# ceph osd pool set qyycache target_max_objects 10000

(3) 定义缓存层将对象刷至存储层或者驱逐的时间
[root@srv1 ~]# ceph osd pool set qyycache cache_min_flush_age 600
[root@srv1 ~]# ceph osd pool set qyycache cache_min_evict_age 600

(4) 定义当缓存池中的脏对象（被修改过的对象）占比达到多少(百分比)时，缓存分层代理开始将object从缓存层刷至存储层
[root@srv1 ~]# ceph osd pool set qyycache cache_target_dirty_ratio 0.4

(5) 当缓存池的饱和度达到指定的值，缓存分层代理将驱逐对象以维护可用容量，此时会将未修改的（干净的）对象刷盘
[root@srv1 ~]# ceph osd pool set qyycache cache_target_full_ratio 0.8

设置在处理读写操作时候，检查多少个 HitSet，检查结果将用于决定是否异步地提升对象（即把对象从冷数据升级为热数据，放入快取池)
它的取值应该在 0 和 hit_set_count 之间， 如果设置为 0 ，则所有的对象在读取或者写入后，将会立即提升对象；如果设置为 1 ，就只检查当前 HitSet ，如果此对象在当前 HitSet 里就提升它，否则就不提升。 设置为其它值时，就要挨个检查此数量的历史 HitSet ，如果此对象出现在 min_read_recency_for_promote 个 HitSet 里的任意一个，那就提升它。
[root@srv1 ~]# ceph osd pool set qyycache min_read_recency_for_promote 1
[root@srv1 ~]# ceph osd pool set qyycache min_write_recency_for_promote 1

8.5 ssd作为ceph-osd的日志盘使用

1) 于Admin节点(srv1)上添加OSD节点(srv8)
[root@srv1 ~]# vim .ssh/config
Host srv1
    Hostname srv1.1000y.cloud
    User root
Host srv2
    Hostname srv2.1000y.cloud
    User root
Host srv3
    Hostname srv3.1000y.cloud
    User root
Host srv4
    Hostname srv4.1000y.cloud
    User root
Host srv5
    Hostname srv5.1000y.cloud
    User root
Host srv6
    Hostname srv6.1000y.cloud
    User root
Host srv7
    Hostname srv7.1000y.cloud
    User root
Host srv8
    Hostname srv8.1000y.cloud
    User root
Host srv9
    Hostname srv9.1000y.cloud
    User root
Host srv10
    Hostname srv10.1000y.cloud
    User root
Host srv11
    Hostname srv11.1000y.cloud
    User root
Host srv12
    Hostname srv12.1000y.cloud
    User root
Host srv13
    Hostname srv13.1000y.cloud
    User root
Host srv14
    Hostname srv14.1000y.cloud
    User root

[root@srv1 ~]# ssh-copy-id srv12
[root@srv1 ~]# ssh-copy-id srv13
[root@srv1 ~]# ssh-copy-id srv14

# 配置srv8防火墙规则
[root@srv1 ~]# ssh srv12 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"
[root@srv1 ~]# ssh srv13 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"
[root@srv1 ~]# ssh srv14 "firewall-cmd --add-service=ceph --permanent; firewall-cmd --reload"

# 安装软件源及ceph
[root@srv1 ~]# for node in srv12 srv13 srv14
do
ssh $node "yum install centos-release-ceph-nautilus epel-release -y; yum install ceph python-enum34 -y"
done

[root@srv1 ~]# for node in srv12 srv13 srv14
do
scp /etc/ceph/ceph.conf $node:/etc/ceph/ceph.conf
scp /etc/ceph/ceph.client.admin.keyring $node:/etc/ceph
scp /var/lib/ceph/bootstrap-osd/ceph.keyring $node:/var/lib/ceph/bootstrap-osd
done

# 配置OSD
[root@srv1 ~]# for node in srv12 srv13 srv14
do
ssh $node "chown ceph. /etc/ceph/ceph.* /var/lib/ceph/bootstrap-osd/*"
done

2) 在所有的osd节点上创建vg
[root@srv1 ~]# for node in srv12 srv13 srv14
do
ssh $node "pvcreate /dev/sdb; \
vgcreate data /dev/sdb; \
lvcreate -l 100%FREE --name log data"
done

3) 使用filestore采用journal模式
root@srv1~# for ALLNODE in srv12 srv13 srv14
do
    ssh $ALLNODE "ceph-volume lvm create --filestore --data /dev/sdc --journal data/log"
done

[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.03119     host srv10
  4   ssd 0.03119         osd.4      up  1.00000 1.00000
-13       0.03119     host srv11
  5   ssd 0.03119         osd.5      up  1.00000 1.00000
-22       0.03119     host srv12
  6   hdd 0.03119         osd.6      up  1.00000 1.00000
-25       0.03119     host srv13
  7   hdd 0.03119         osd.7      up  1.00000 1.00000
-28       0.03119     host srv14
  8   hdd 0.03119         osd.8      up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.03119     host srv8
  3   ssd 0.03119         osd.3      up  1.00000 1.00000

[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 4h)
    mgr: srv1(active, since 3h), standbys: srv3, srv2
    mds: cephfs:1 {0=srv1=up:active} 2 up:standby
    osd: 9 osds: 9 up (since 6m), 9 in (since 6m)
    rgw: 1 daemon active (srv7)

  task status:
    scrub status:
        mds.srv1: idle

  data:
    pools:   9 pools, 256 pgs
    objects: 262 objects, 135 MiB
    usage:   6.9 GiB used, 281 GiB / 288 GiB avail
    pgs:     256 active+clean

4) 使用bluestore
[root@srv1 ~]# for node in srv12 srv13 srv14
do
ssh $node "pvcreate /dev/sdd; \
vgcreate cache /dev/sdd; \
lvcreate -l 50%FREE --name db-lv-0 cache; \
lvcreate -l 50%FREE --name wal-lv-0 cache"
done

# 创建OSD
root@srv1~# for ALLNODE in srv12 srv13 srv14
do
    ssh $ALLNODE "ceph-volume lvm create --bluestore --data /dev/sde --block.db cache/db-lv-0 --block.wal cache/wal-lv-0"
done

[root@srv1 ~]# ceph -s
  cluster:
    id:     019823c5-518e-4d7e-862c-46f828ec6275
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum srv1,srv2,srv3 (age 4h)
    mgr: srv1(active, since 3h), standbys: srv3, srv2
    mds: cephfs:1 {0=srv1=up:active} 2 up:standby
    osd: 12 osds: 12 up (since 72s), 12 in (since 72s)
    rgw: 1 daemon active (srv7)

  task status:
    scrub status:
        mds.srv1: idle

  data:
    pools:   9 pools, 256 pgs
    objects: 262 objects, 135 MiB
    usage:   58 GiB used, 374 GiB / 432 GiB avail
    pgs:     256 active+clean

[root@srv1 ~]# ceph osd tree
ID  CLASS WEIGHT  TYPE NAME      STATUS REWEIGHT PRI-AFF
 -1       0.28070 root default
-11       0.03119     host srv10
  4   ssd 0.03119         osd.4      up  1.00000 1.00000
-13       0.03119     host srv11
  5   ssd 0.03119         osd.5      up  1.00000 1.00000
-22       0.03119     host srv12
  6   hdd 0.03119         osd.6      up  1.00000 1.00000
  9   hdd 0.04689         osd.9      up  1.00000 1.00000
-25       0.03119     host srv13
  7   hdd 0.03119         osd.7      up  1.00000 1.00000
  10  hdd 0.04689         osd.10     up  1.00000 1.00000
-28       0.03119     host srv14
  8   hdd 0.03119         osd.8      up  1.00000 1.00000
  11  hdd 0.04689         osd.11     up  1.00000 1.00000
 -3       0.03119     host srv4
  0   hdd 0.03119         osd.0      up  1.00000 1.00000
 -5       0.03119     host srv5
  1   hdd 0.03119         osd.1      up  1.00000 1.00000
 -7       0.03119     host srv6
  2   hdd 0.03119         osd.2      up  1.00000 1.00000
 -9       0.03119     host srv8
  3   ssd 0.03119         osd.3      up  1.00000 1.00000

5) 确认OSD使用的为filestore/bluestore
# 进入OSD所在的主机
[root@srv4 ~]# cat /var/lib/ceph/osd/ceph-0/type
bluestore

8.6 指定osd创建pool

1) 增加OSD
[root@srv1 ~]# for ALLNODE in srv1 srv2 srv3
do
    ssh $ALLNODE \
    "parted --script /dev/sdh 'mklabel gpt'; \
    parted --script /dev/sdh "mkpart primary 0% 100%"; \    ceph-volume lvm create --data /dev/sdh1"
done

[root@srv1 ~]# ceph osd tree
ID  CLASS  WEIGHT   TYPE NAME       STATUS  REWEIGHT  PRI-AFF
-1         0.51494  root default
-3         0.17165      host srv1
 0    hdd  0.03119          osd.0       up   1.00000  1.00000
 6    hdd  0.03119          osd.6       up   1.00000  1.00000
 9    hdd  0.04689          osd.9       up   1.00000  1.00000
12    hdd  0.03119          osd.12      up   1.00000  1.00000
 1    ssd  0.03119          osd.1       up   1.00000  1.00000
-5         0.17165      host srv2
 2    hdd  0.03119          osd.2       up   1.00000  1.00000
 7    hdd  0.03119          osd.7       up   1.00000  1.00000
10    hdd  0.04689          osd.10      up   1.00000  1.00000
13    hdd  0.03119          osd.13      up   1.00000  1.00000
 3    ssd  0.03119          osd.3       up   1.00000  1.00000
-7         0.17165      host srv3
 4    hdd  0.03119          osd.4       up   1.00000  1.00000
 8    hdd  0.03119          osd.8       up   1.00000  1.00000
11    hdd  0.04689          osd.11      up   1.00000  1.00000
14    hdd  0.03119          osd.14      up   1.00000  1.00000
 5    ssd  0.03119          osd.5       up   1.00000  1.00000

2) 自定义类型
[root@srv1 ~]# for i in 12 13 14;
do
ceph osd crush rm-device-class osd.$i;
done
done removing class of osd(s): 12
done removing class of osd(s): 13
done removing class of osd(s): 14

[root@srv1 ~]# for i in 12 13 14;
do
	ceph osd crush set-device-class rbd osd.$i;
done
set osd(s) 12 to class 'rbd'
set osd(s) 13 to class 'rbd'
set osd(s) 14 to class 'rbd'

[root@srv1 ~]# ceph osd tree
ID  CLASS  WEIGHT   TYPE NAME       STATUS  REWEIGHT  PRI-AFF
-1         0.51494  root default
-3         0.17165      host srv1
 0    hdd  0.03119          osd.0       up   1.00000  1.00000
 6    hdd  0.03119          osd.6       up   1.00000  1.00000
 9    hdd  0.04689          osd.9       up   1.00000  1.00000
12    rbd  0.03119          osd.12      up   1.00000  1.00000
 1    ssd  0.03119          osd.1       up   1.00000  1.00000
-5         0.17165      host srv2
 2    hdd  0.03119          osd.2       up   1.00000  1.00000
 7    hdd  0.03119          osd.7       up   1.00000  1.00000
10    hdd  0.04689          osd.10      up   1.00000  1.00000
13    rbd  0.03119          osd.13      up   1.00000  1.00000
 3    ssd  0.03119          osd.3       up   1.00000  1.00000
-7         0.17165      host srv3
 4    hdd  0.03119          osd.4       up   1.00000  1.00000
 8    hdd  0.03119          osd.8       up   1.00000  1.00000
11    hdd  0.04689          osd.11      up   1.00000  1.00000
14    rbd  0.03119          osd.14      up   1.00000  1.00000
 5    ssd  0.03119          osd.5       up   1.00000  1.00000

3) 创建rbd的class rule
[root@srv1 ~]# ceph osd crush rule create-replicated ssd_rule default host ssd

[root@srv1 ~]# ceph osd crush rule list
replicated_rule
ssd_rule
rbd_rule

4) 创建一个池
[root@srv1 ~]# ceph osd pool create qyy 16 rbd_rule
pool 'qyy' created

[root@srv1 ~]# ceph osd lspools
1 device_health_metrics
2 qyydata
3 qyycache
4 qyy

5) 在srv4上进行划分rbd
root@srv4:~# ceph osd lspools
1 device_health_metrics
2 qyydata
3 qyycache
4 qyy

root@srv4:~# rbd pool init qyy

# 创建名为rbd1的image
root@srv4:~# rbd -p qyy create rbd2 --size 2G --image-feature layering

root@srv4:~# rbd -p qyy ls -l
NAME SIZE  PARENT FMT PROT LOCK
rbd2 2 GiB          2

6) 映射
root@srv4:~# rbd map -p qyy rbd2
/dev/rbd1

root@srv4:~# rbd showmapped
id  pool     namespace  image  snap  device
0   qyydata             rbd1   -     /dev/rbd0
2   qyy                 rbd2   -     /dev/rbd1

7) 使用
root@srv4:~# mkfs.ext4 /dev/rbd1

root@srv4:~# mount /dev/rbd1 /mnt

root@srv4:~# df -Th /mnt
Filesystem     Type  Size  Used Avail Use% Mounted on
/dev/rbd1      ext4  2.0G  6.0M  1.8G   1% /mnt

如对您有帮助，请随缘打个赏。^-^

gold
