Red5--流媒体服务配置手册

1) 安装OpenJDK 11
[root@srv1 ~]# yum install java-11-openjdk java-11-openjdk-devel -y
[root@srv1 ~]# cat > /etc/profile.d/java11.sh <<EOF
export JAVA_HOME=$(dirname $(dirname $(readlink $(readlink $(which javac)))))
export PATH=\$PATH:\$JAVA_HOME/bin
EOF

[root@srv1 ~]# source /etc/profile.d/java11.sh

[root@srv1 ~]# java --version
openjdk 11.0.7 2020-04-14 LTS
OpenJDK Runtime Environment 18.9 (build 11.0.7+10-LTS)
OpenJDK 64-Bit Server VM 18.9 (build 11.0.7+10-LTS, mixed mode, sharing)

2) 下载Red5
[root@srv1 ~]# wget https://github.com/Red5/red5-server/releases/download/v1.2.3/red5-server-1.2.3.tar.gz

3) 安装并运行Red5
[root@srv1 ~]# tar xfz red5-server-1.2.3.tar.gz -C /opt
[root@srv1 ~]# cd /opt/red5-server/
[root@srv1 ~]# ./red5.sh

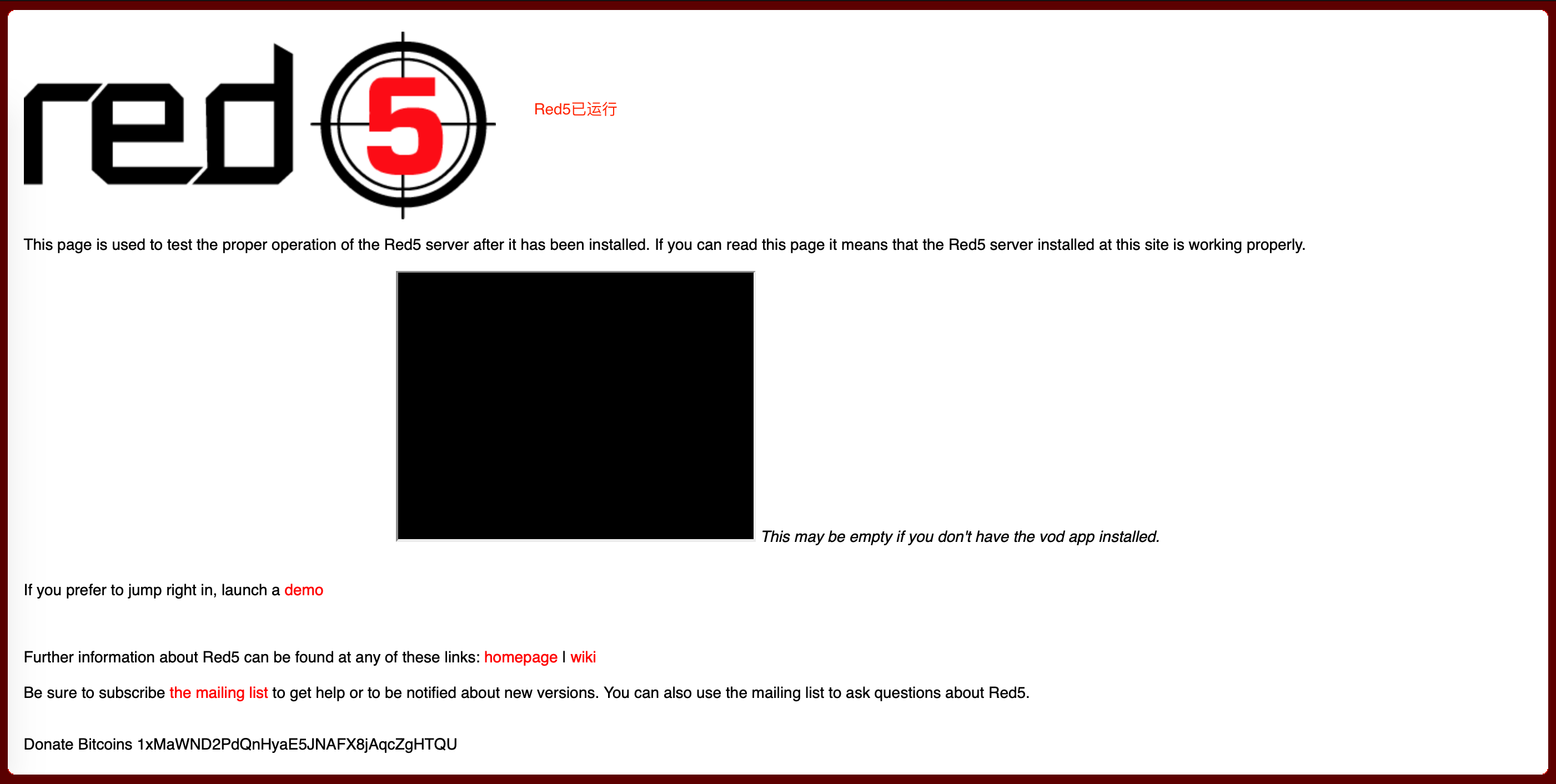

4) 访问Red5
[浏览器]===>http://$srv_ip:5080

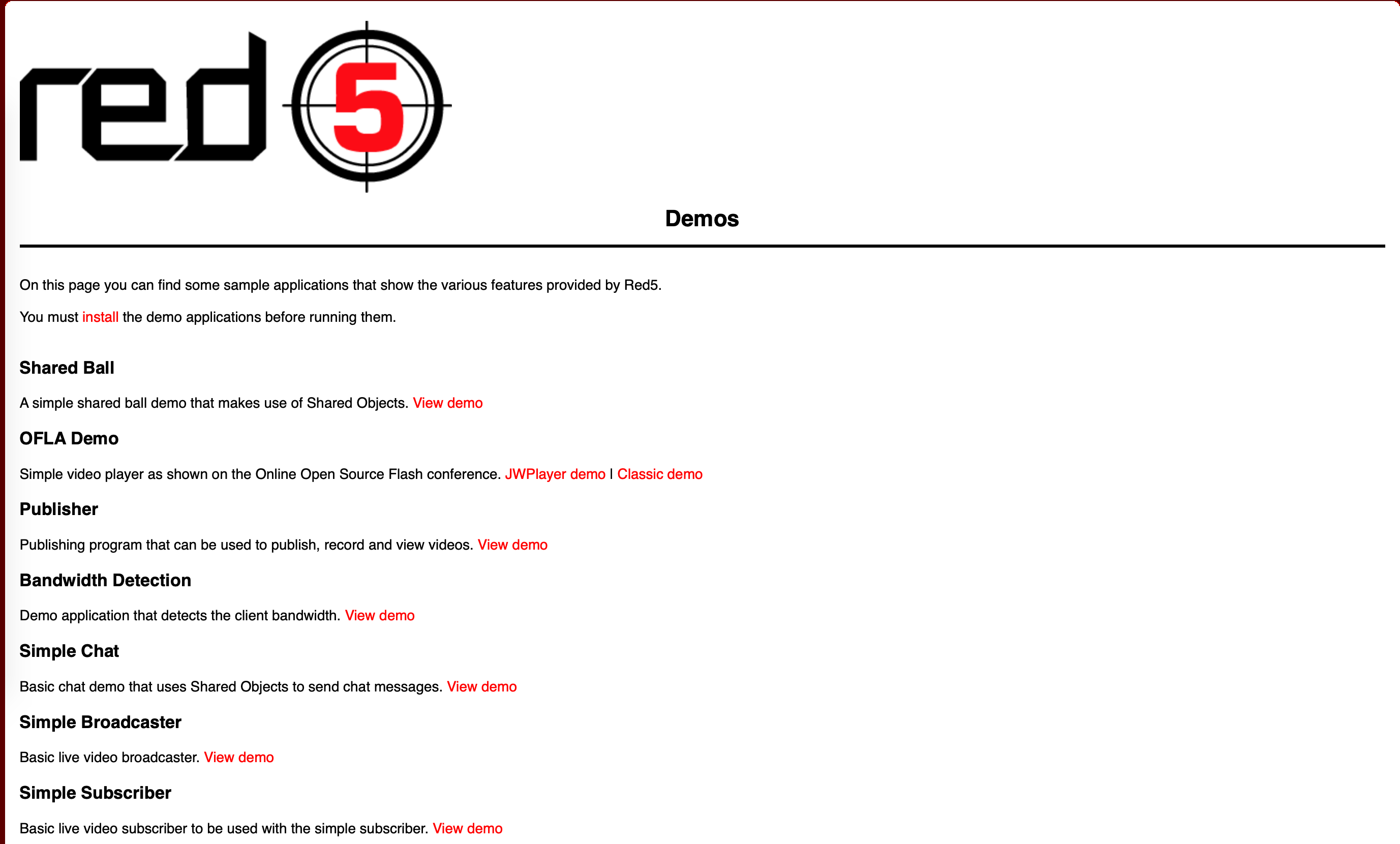

5) 访问演示应用程序页面
# 注意:浏览器需要支持Flash
[浏览器]===>http://$srv_ip:5080/demos/

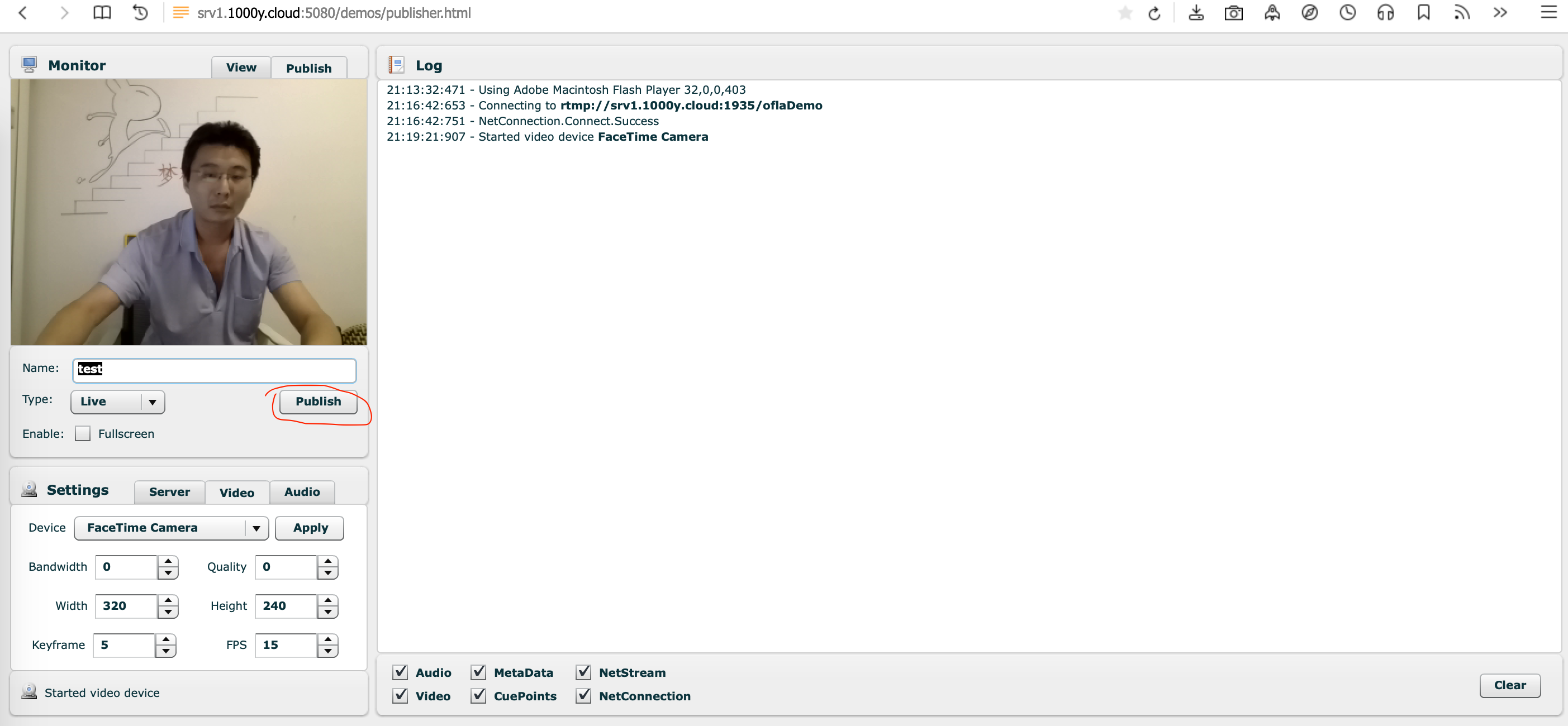

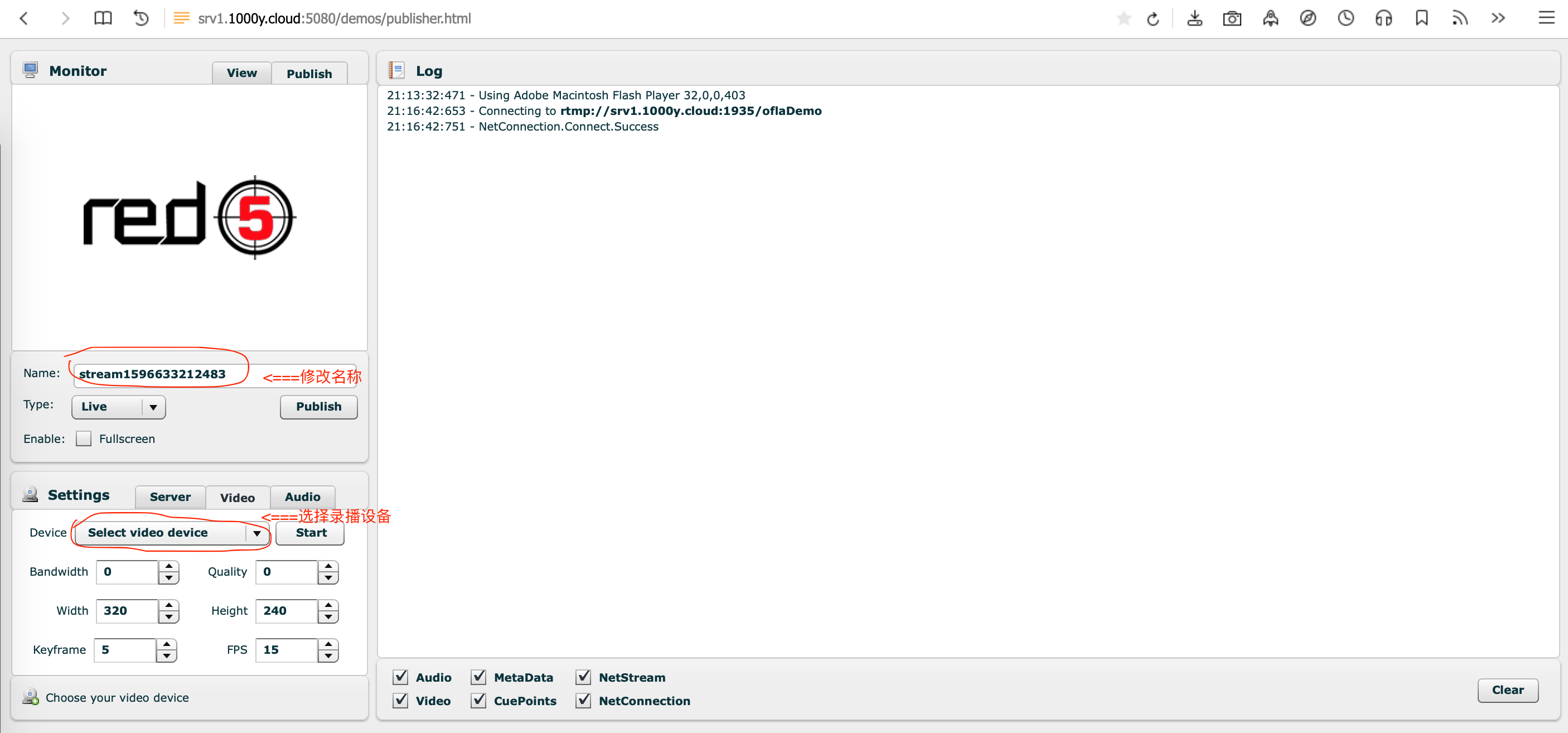

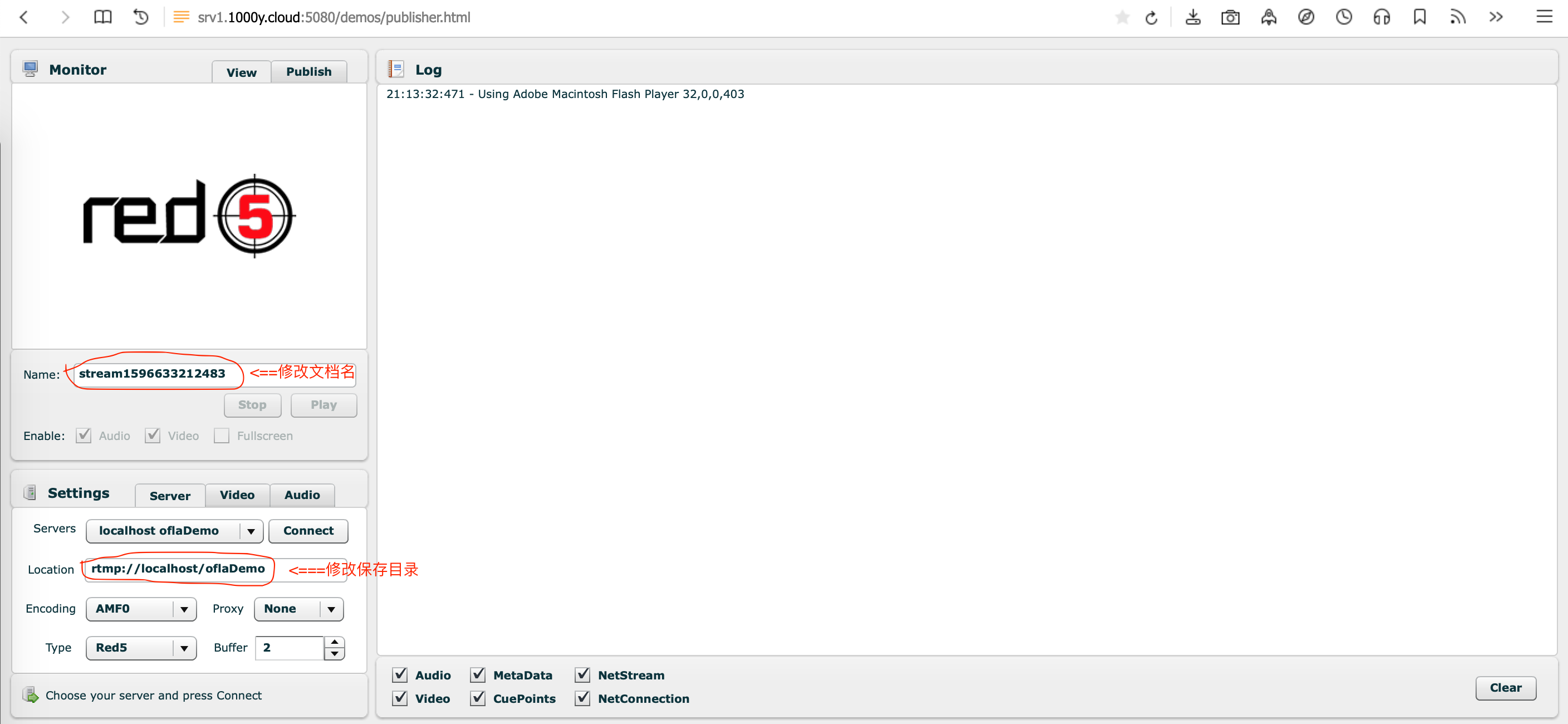

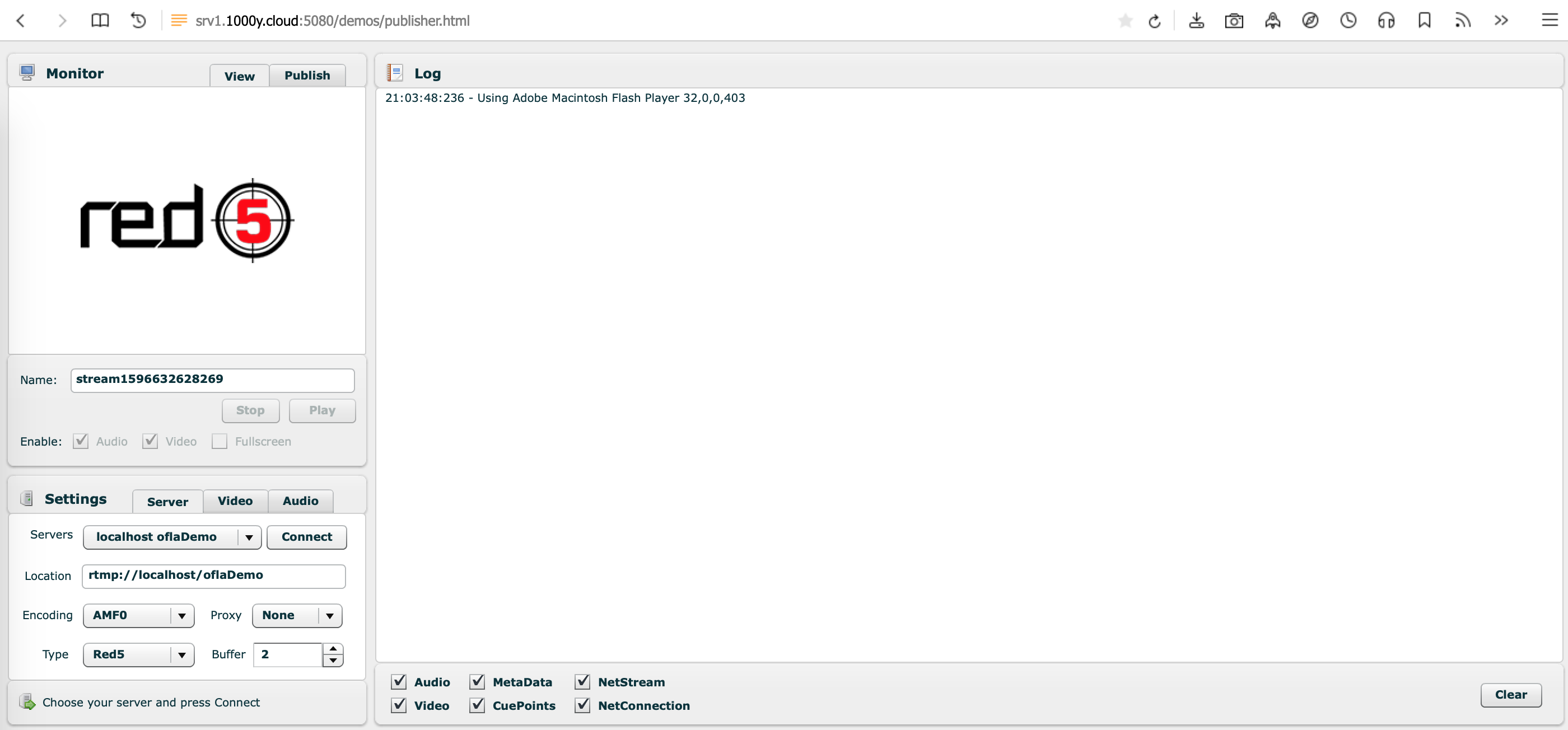

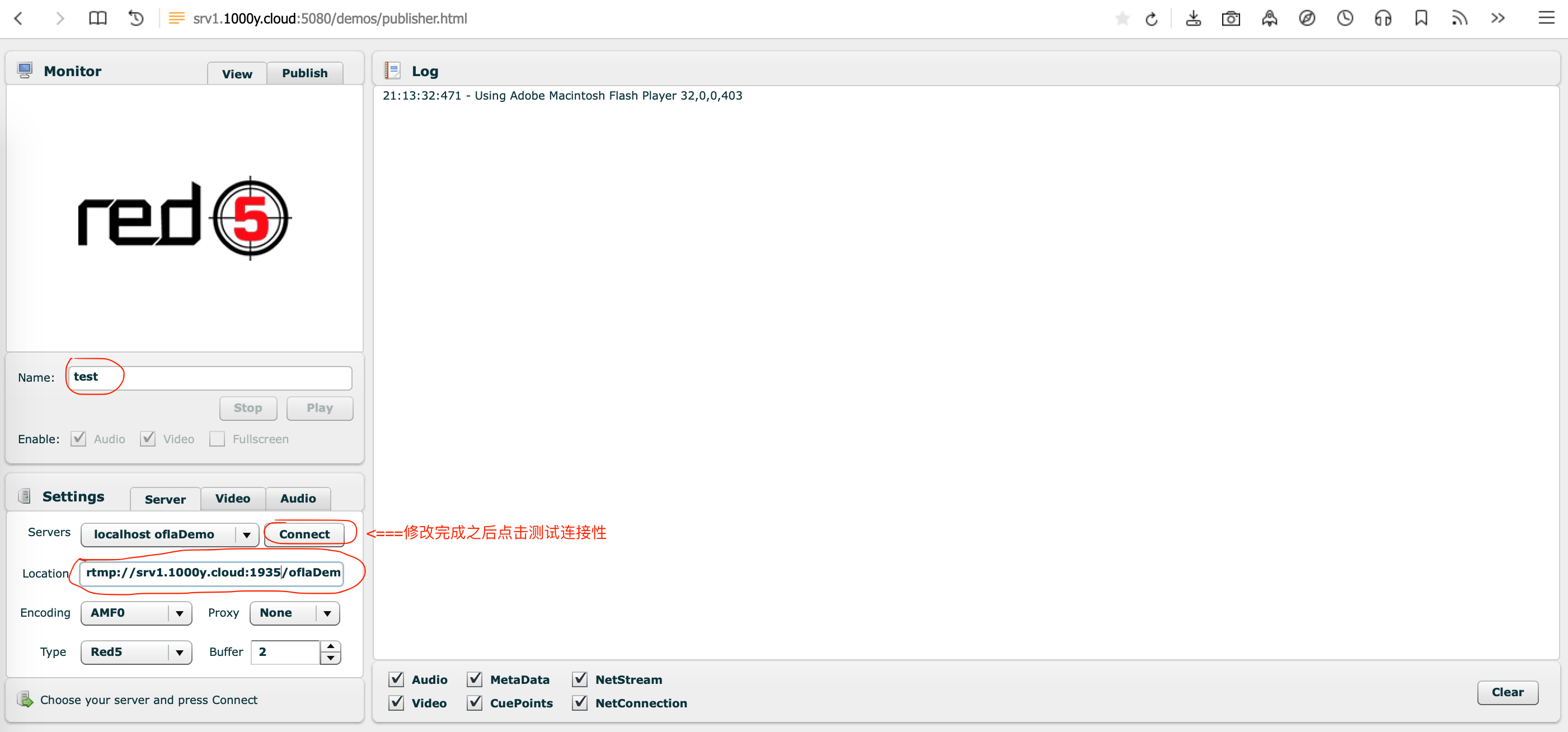

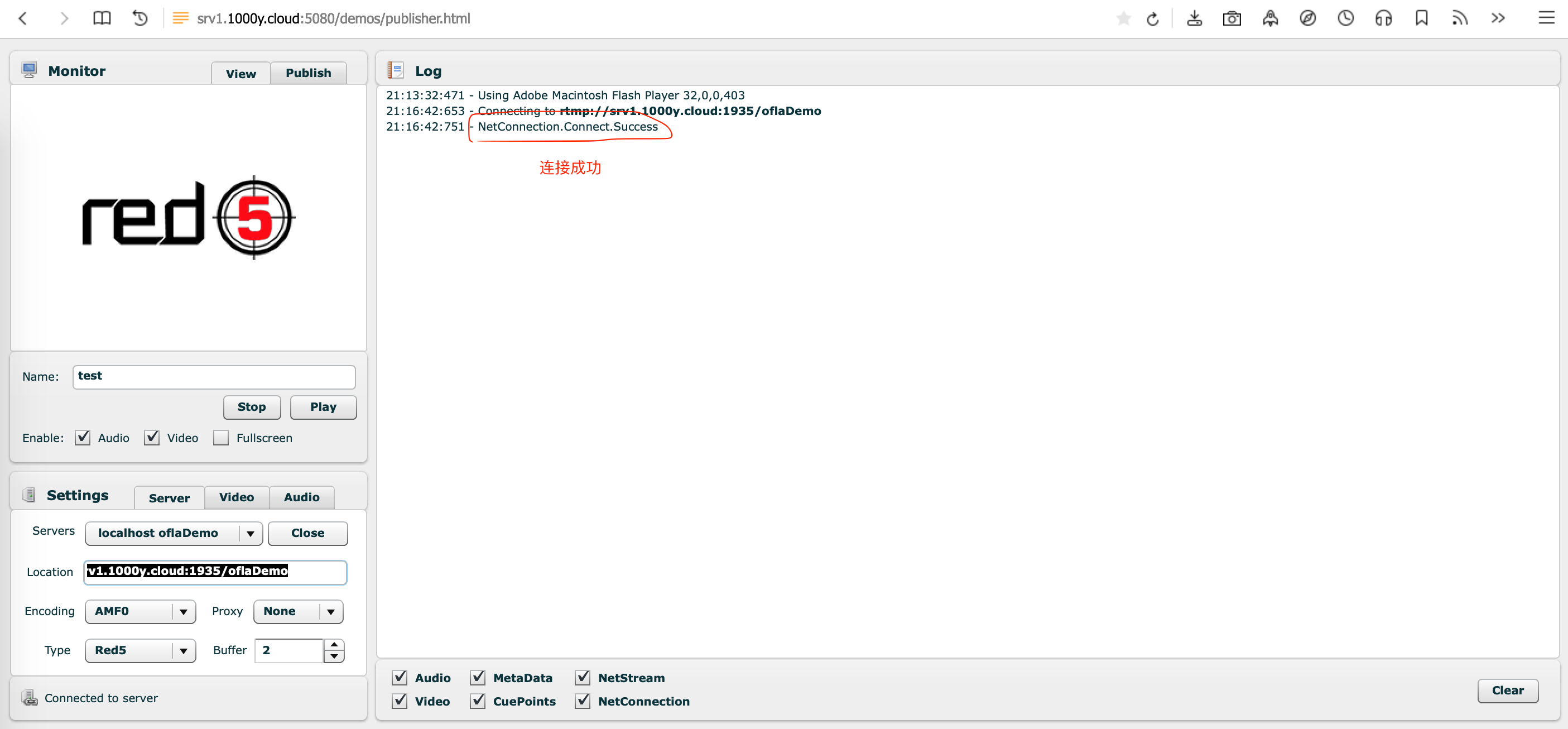

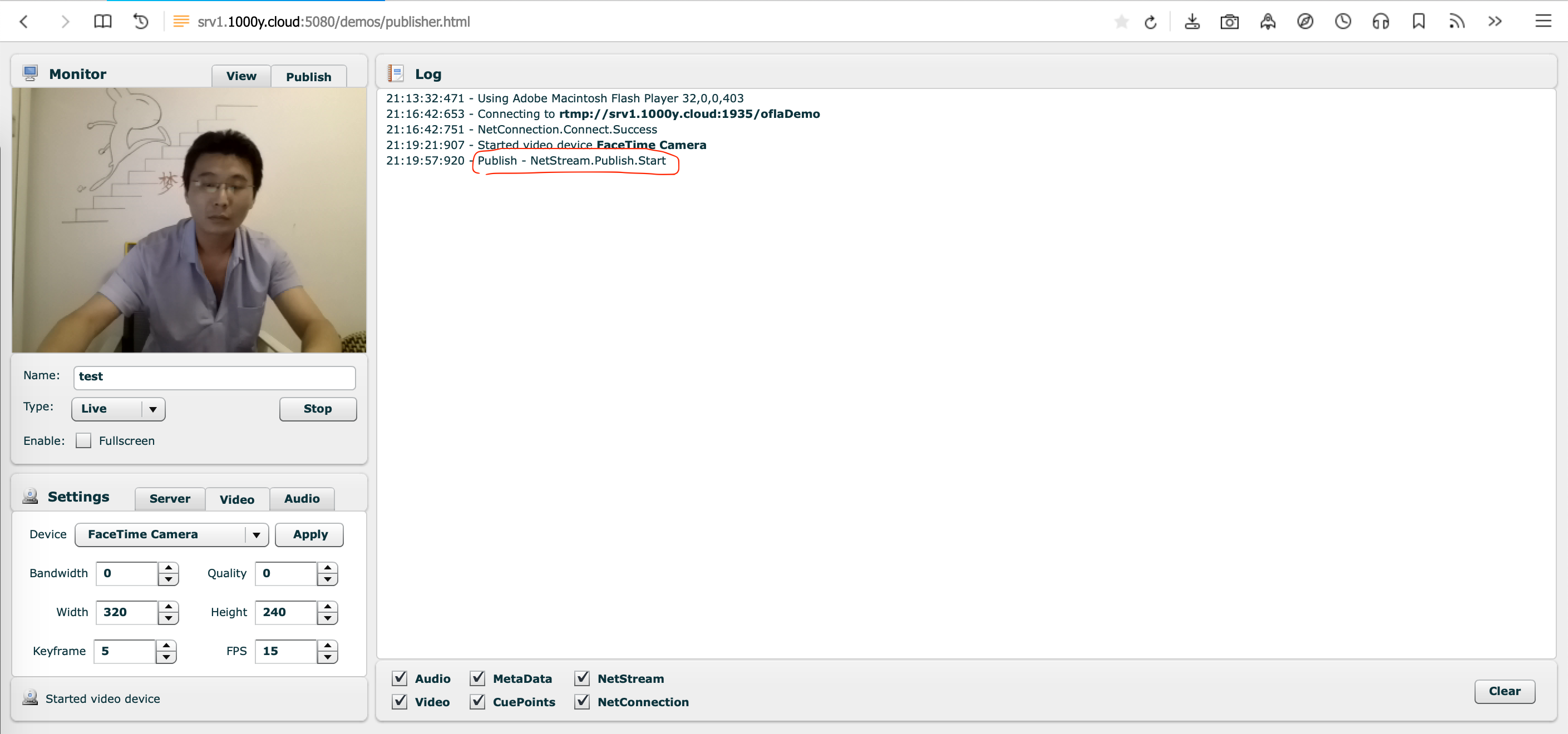

6) 使用直播
[浏览器]===>http://srv1.1000y.cloud:5080/demos/publisher.html

















7) 使用视频播放
1. 准备好一个视频---mp4/flv格式均可
2. 上传至red5的指定目录:/opt/red5-server/webapps/vod/
3. 播放方法:[浏览器]===>http://$srv_ip:5080/vod/xxx.mp4

1) 安装GUI图形界面
[root@srv1 ~]# yum groups install "GNOME Desktop" -y

[root@srv1 ~]# systemctl set-default graphical.target

2) 安装snappy
[root@srv1 ~]# yum install epel-release -y
[root@srv1 ~]# yum --enablerepo=epel install snapd -y
[root@srv1 ~]# systemctl enable --now snapd.socket
[root@srv1 ~]# ln -s /var/lib/snapd/snap /snap

[root@srv1 ~]# reboot

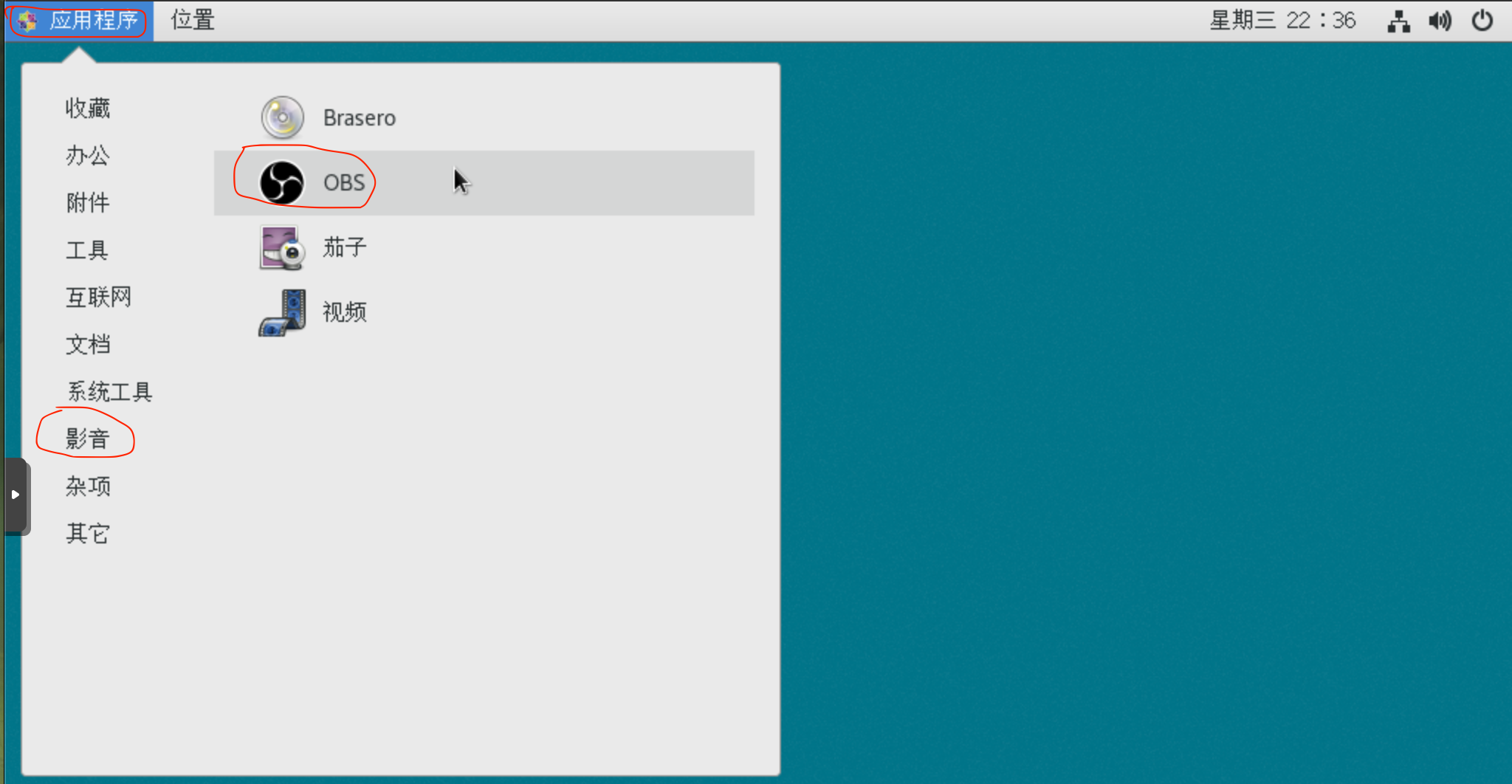

3) 安装OBS
[root@srv1 ~]# snap install obs-studio
# 如果出现此错误 Error: too early for operation, device not yet seeded or device model not acknowledged，重启系统。

020-08-05T22:18:10+08:00 INFO Waiting for automatic snapd restart...
obs-studio 25.0.8 from Snapcrafters installed

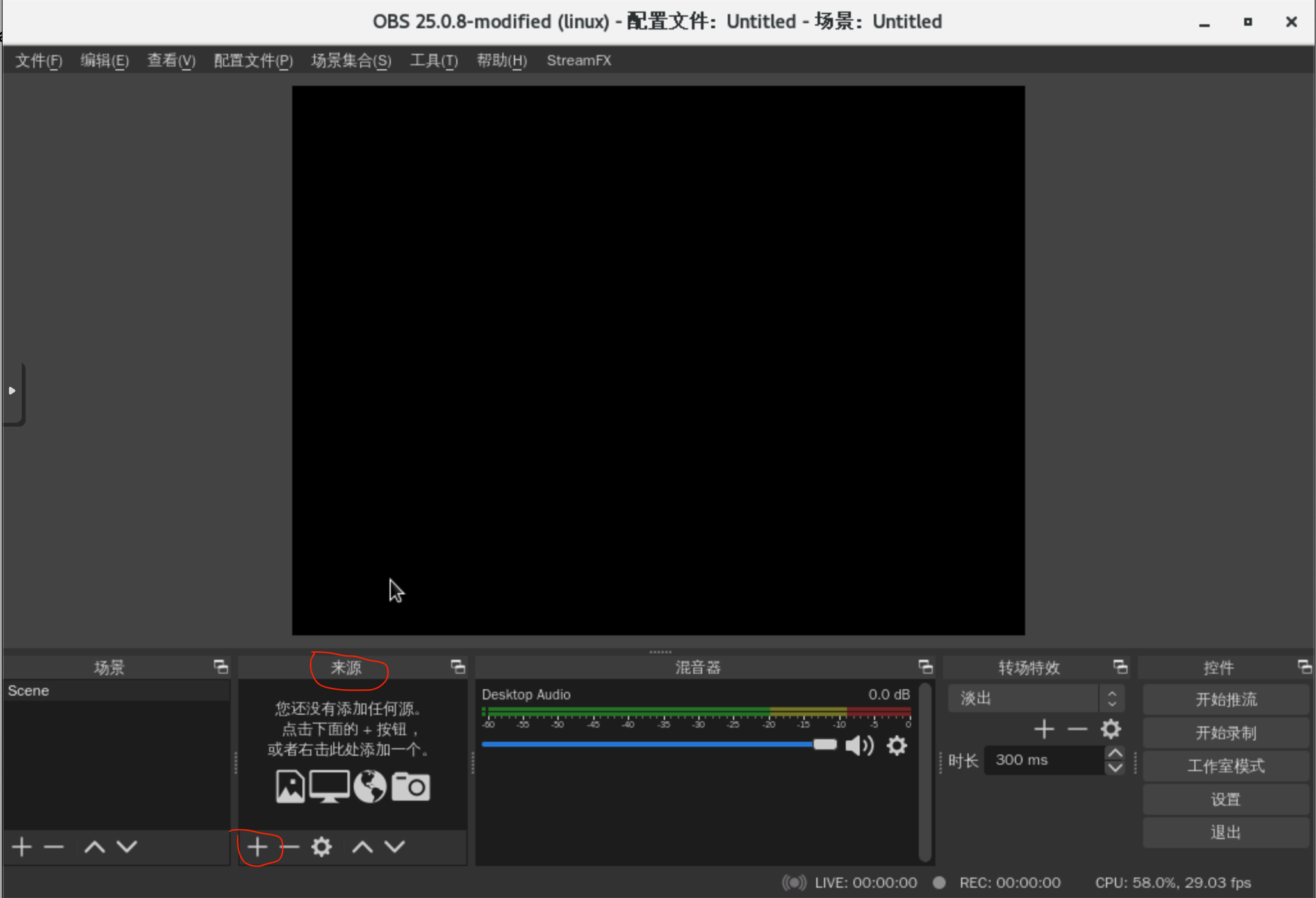

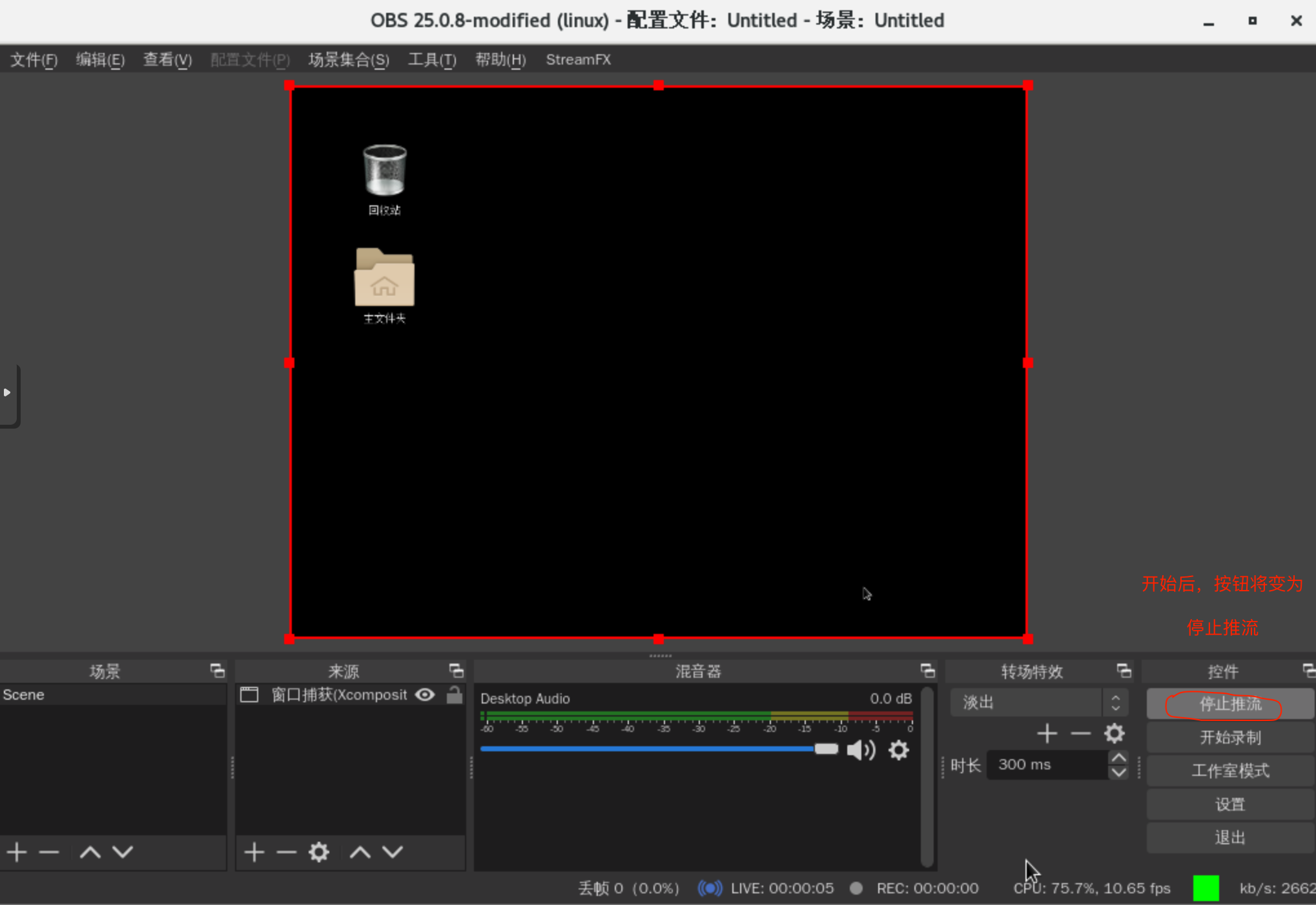

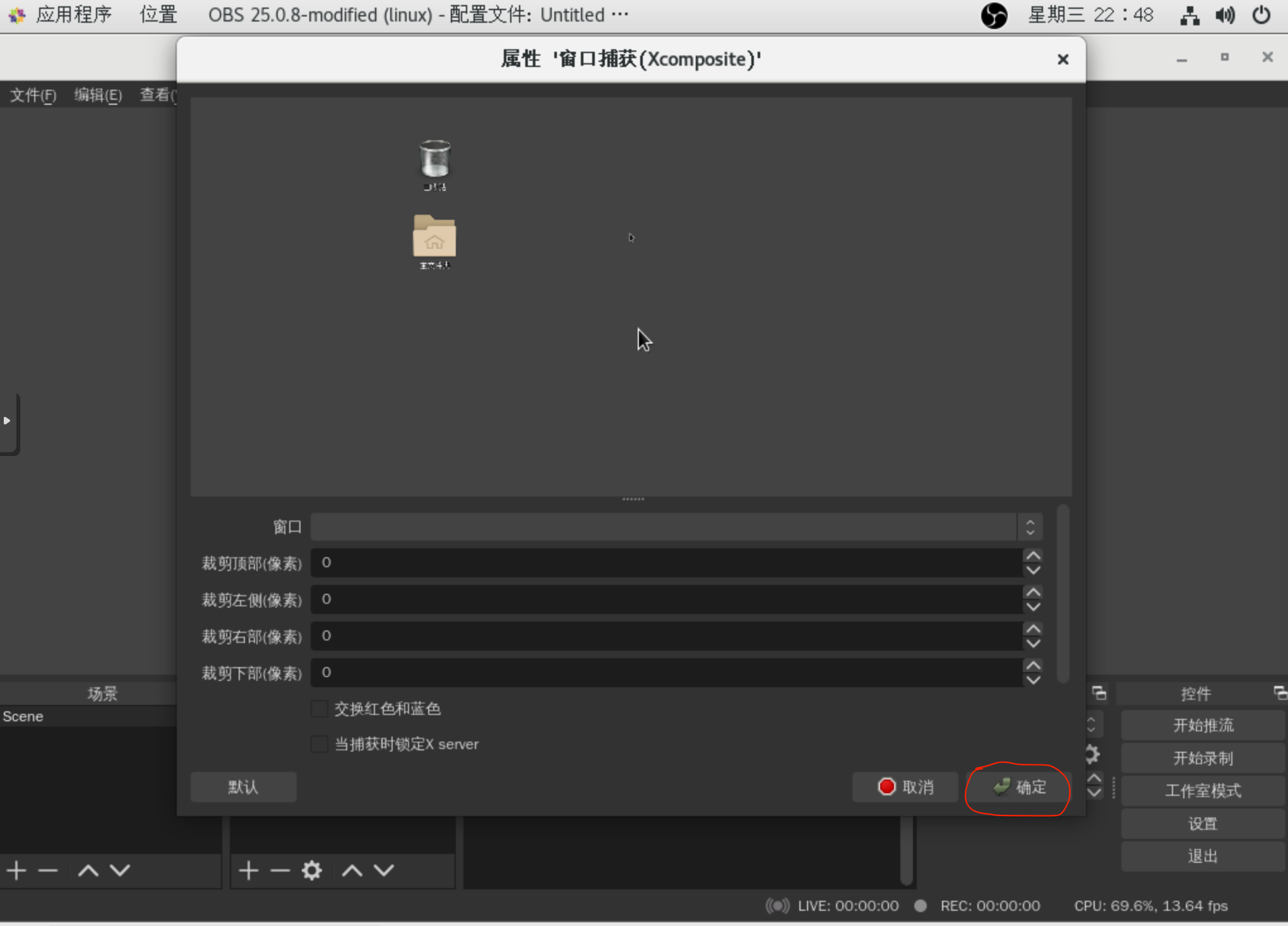

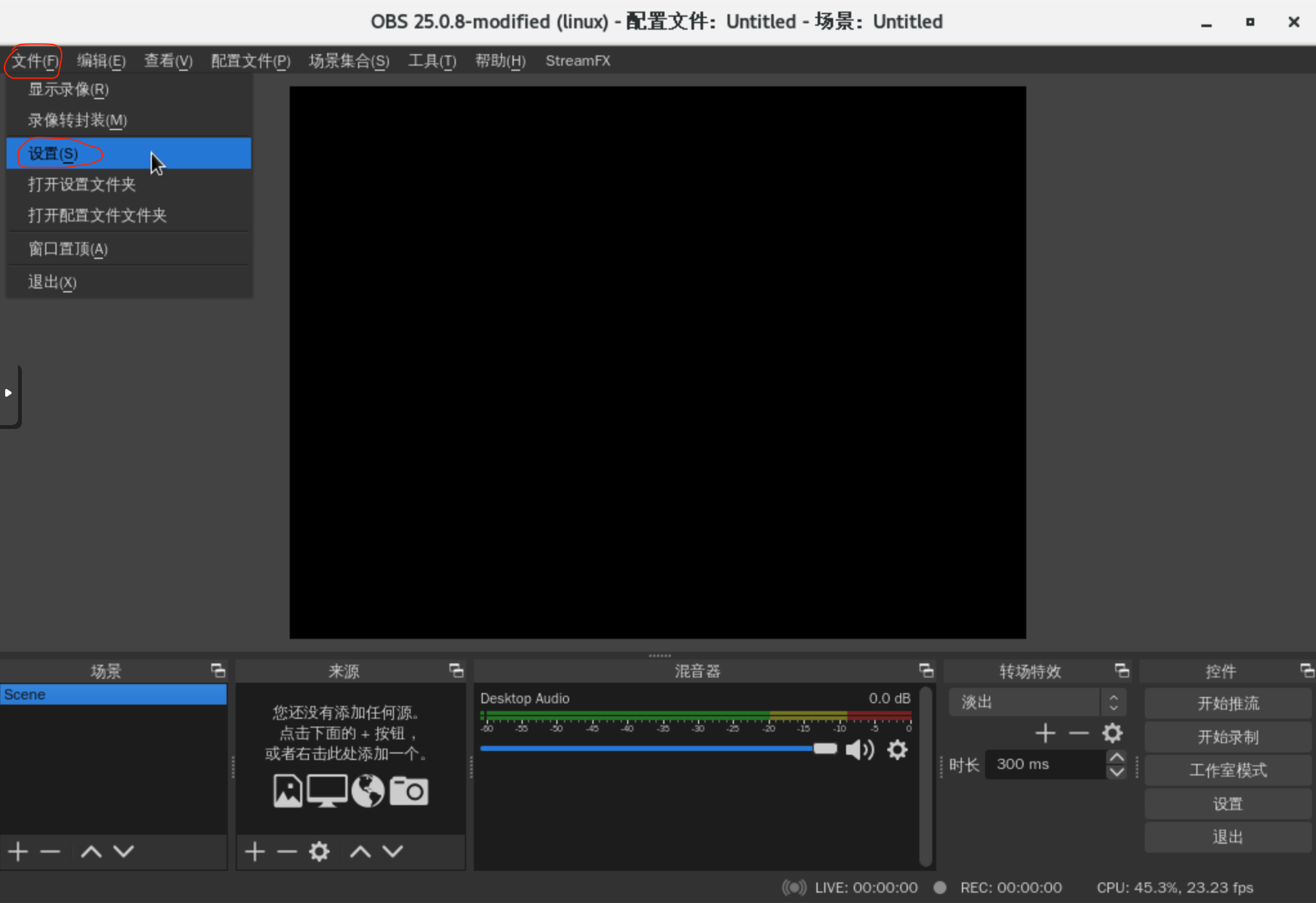

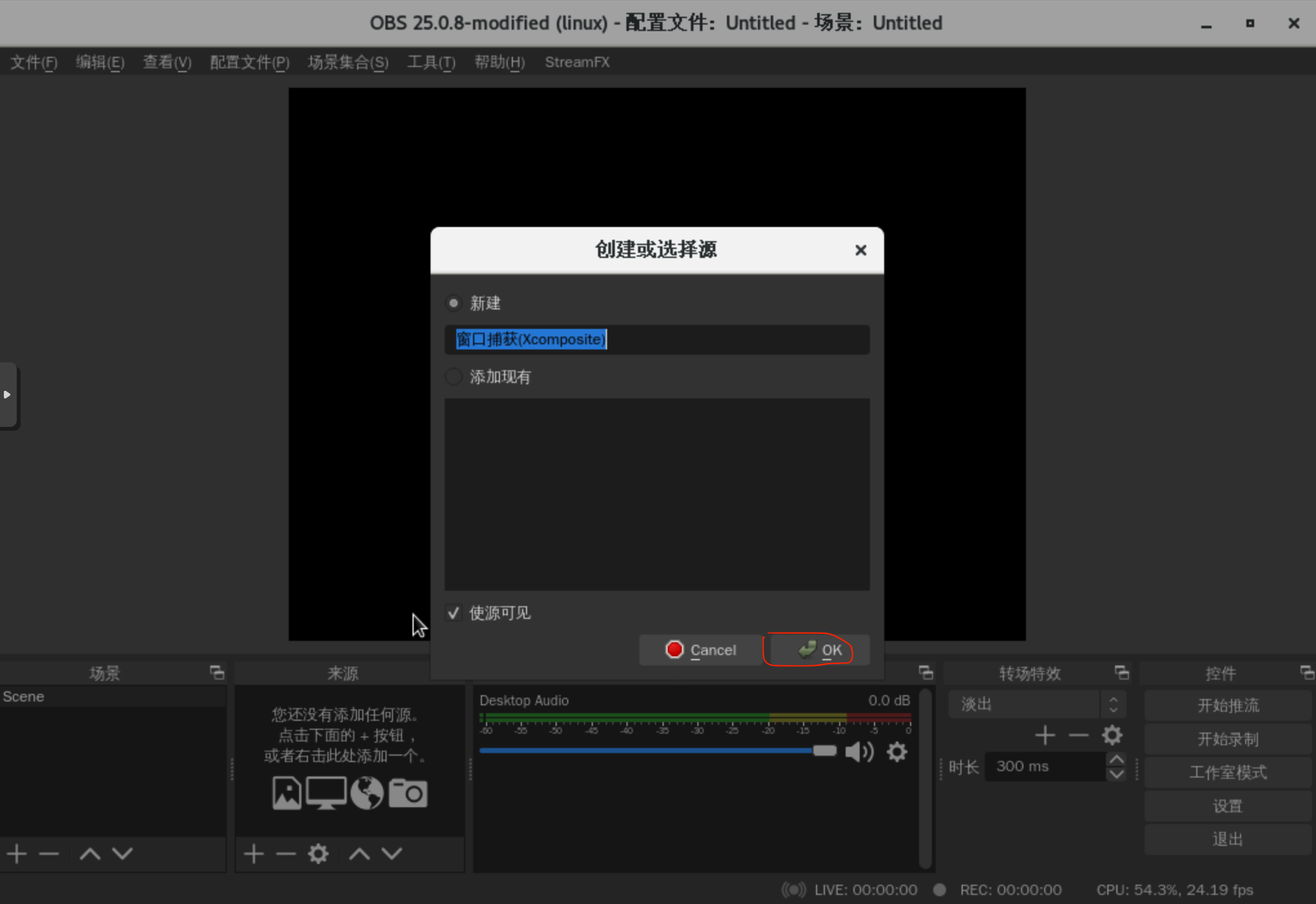

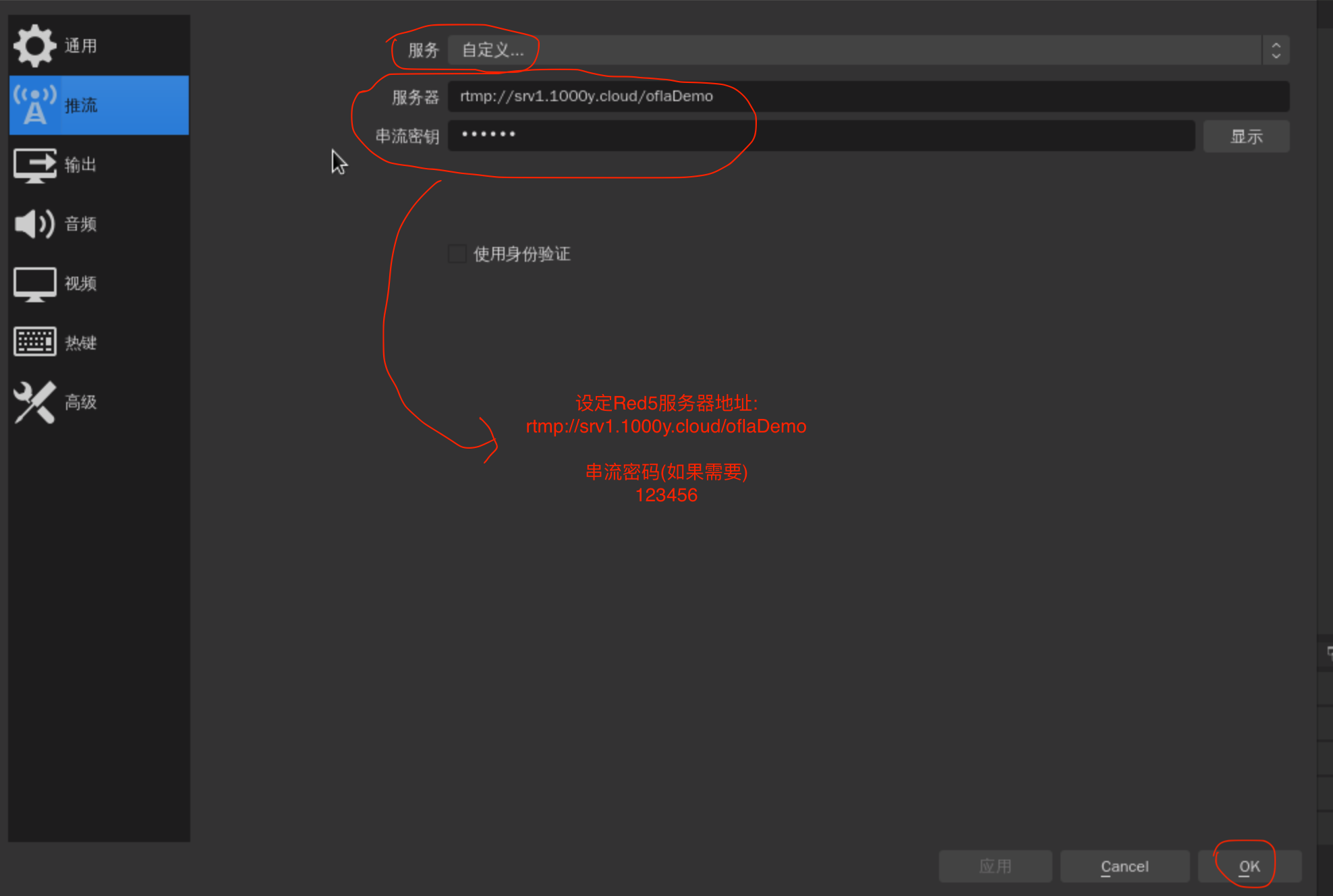

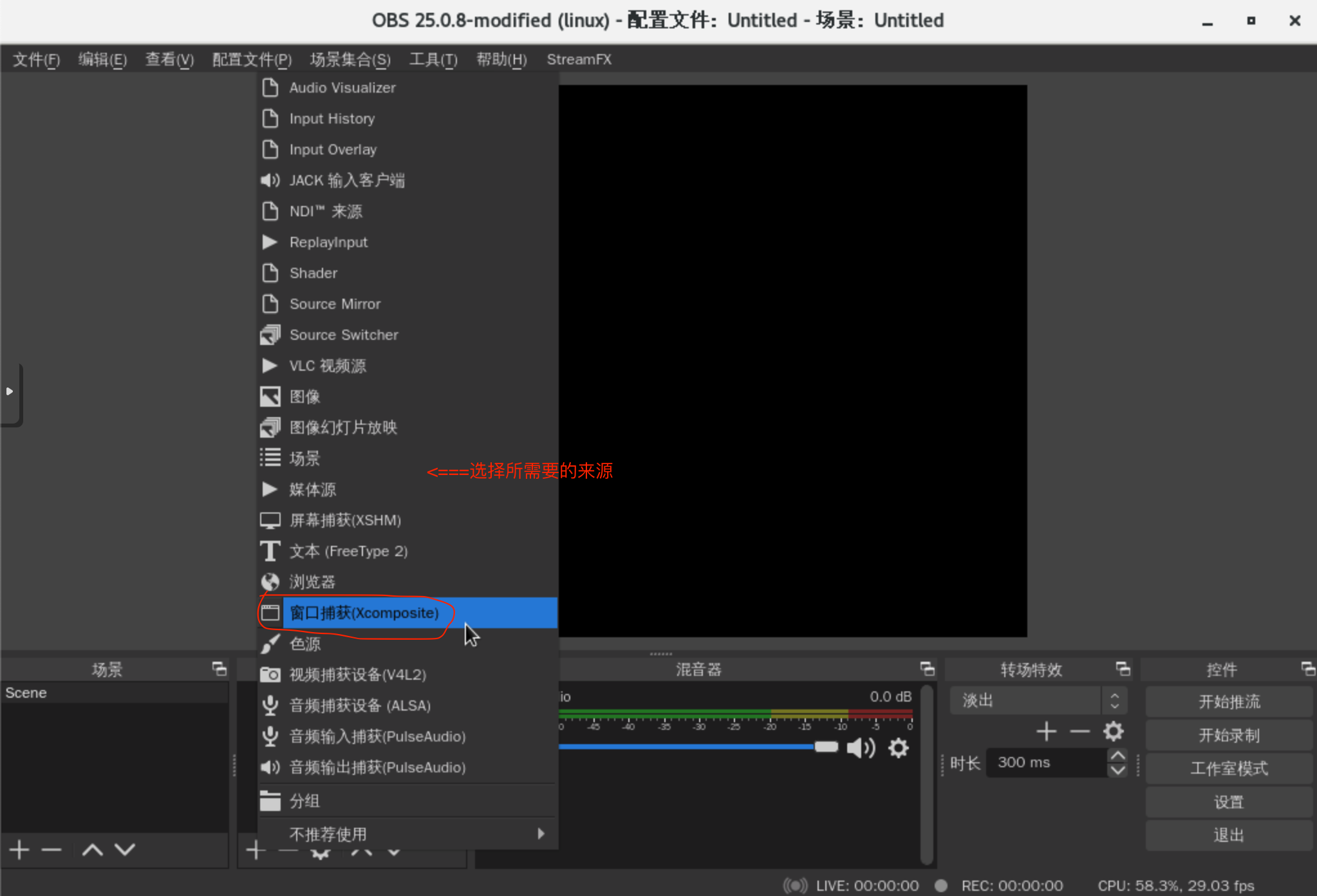

4) 设置OBS

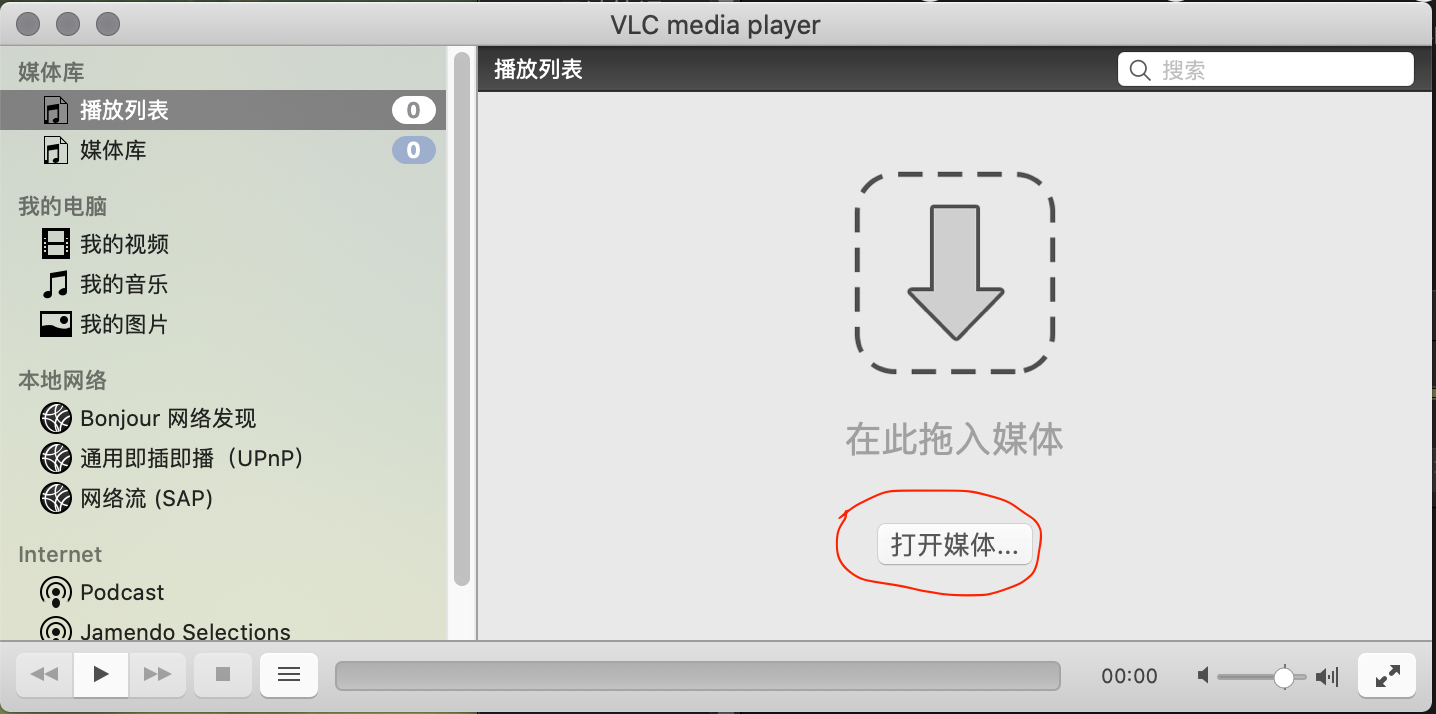

1) 准备好VLC应用软件软件

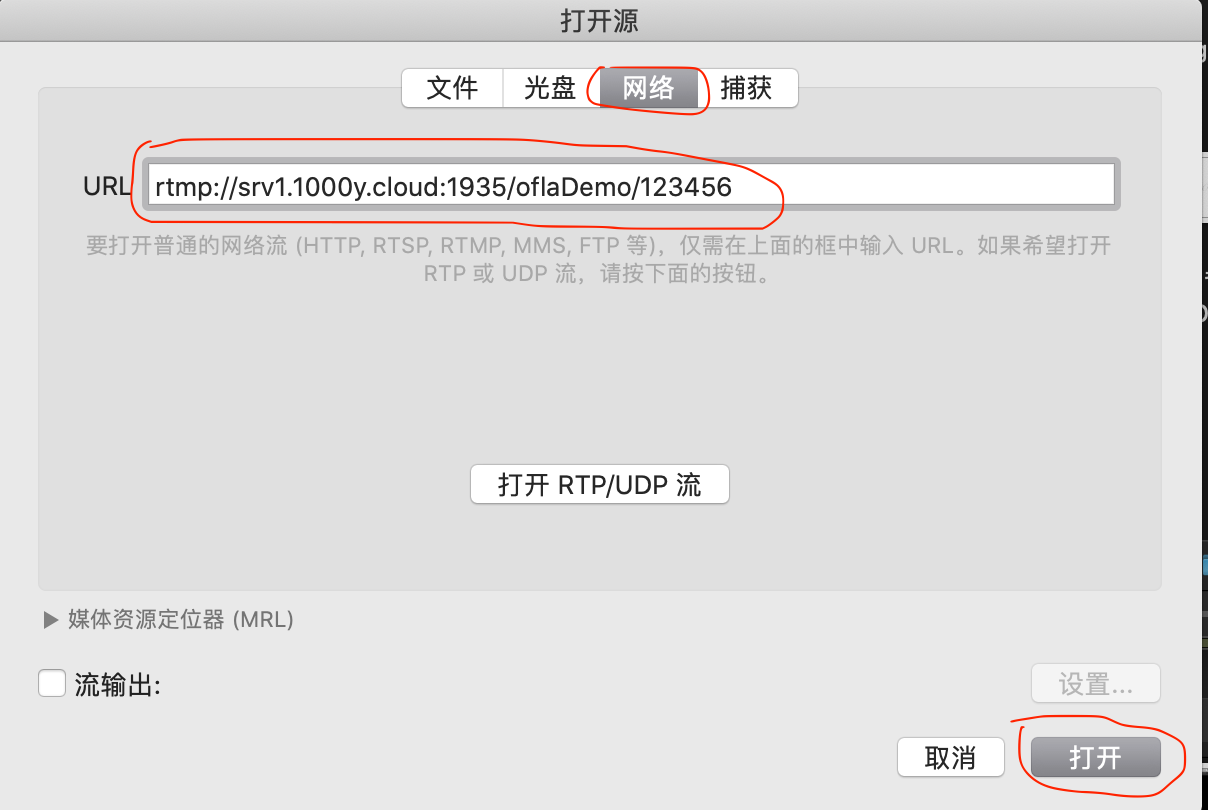

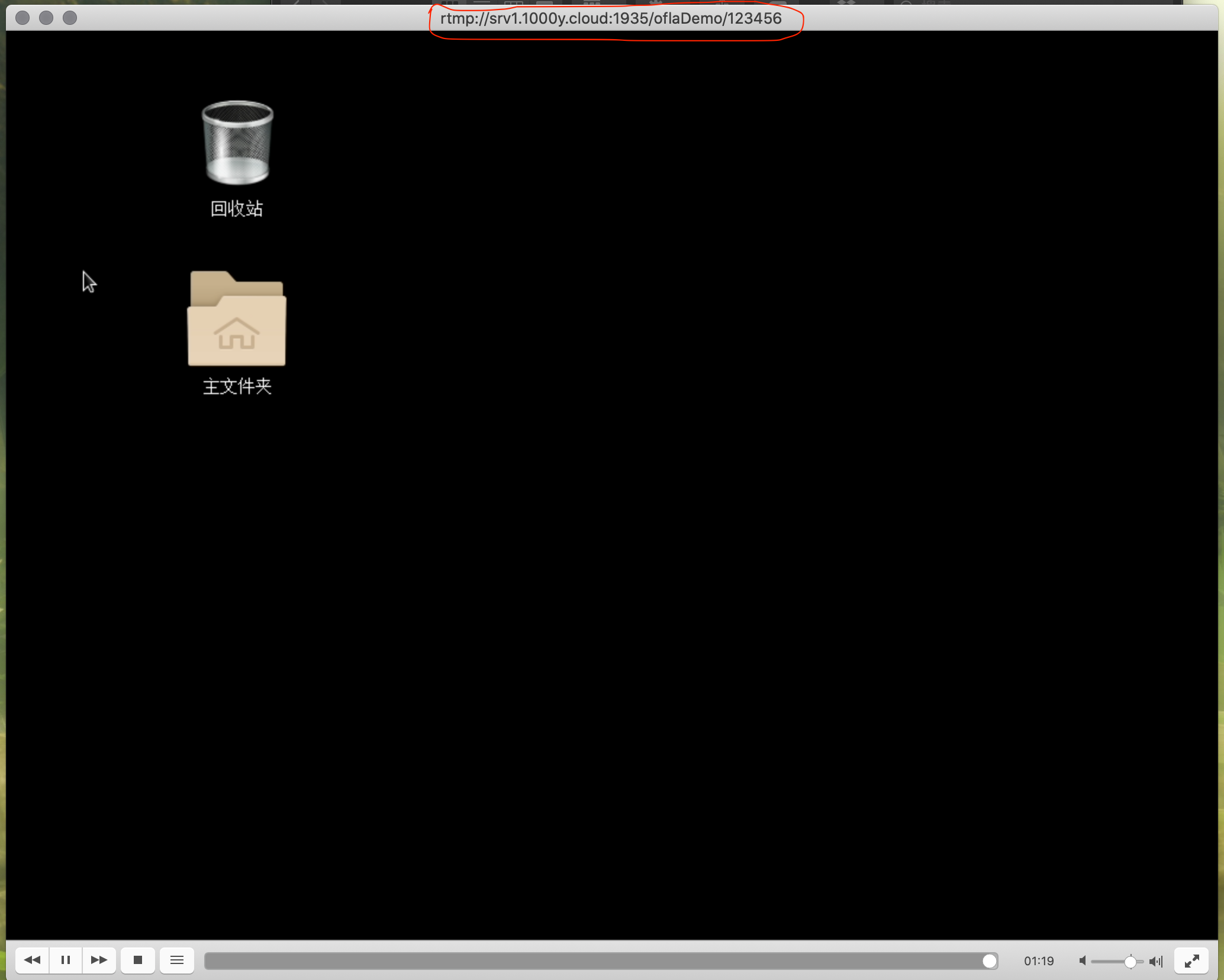

2) 设置VLC
