高可用OpenStack（Queen版）集群

9.Cinder控制节点集群

源自于网络-snowchuai汇总、整理

参考文档：

1. Install-guide：https://docs.openstack.org/install-guide/
2. OpenStack High Availability Guide：https://docs.openstack.org/ha-guide/index.html
3. 理解Pacemaker：http://www.cnblogs.com/sammyliu/p/5025362.html
4. Ceph: http://docs.ceph.com/docs/master/start/intro/

十三．Cinder控制节点集群

1. 创建cinder数据库

xxxxxxxxxx
# 在任意控制节点创建数据库，后台数据自动同步，以controller01节点为例；
[root@controller01 ~]# mysql -uroot -pmysql_pass
​
MariaDB [(none)]> CREATE DATABASE cinder;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'localhost' IDENTIFIED BY 'cinder_dbpass';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'%' IDENTIFIED BY 'cinder_dbpass';
​
MariaDB [(none)]> flush privileges;
MariaDB [(none)]> exit;

2. 创建cinder-api

xxxxxxxxxx
# 在任意控制节点操作，以controller01节点为例；
# 调用cinder服务需要认证信息，加载环境变量脚本即可
[root@controller01 ~]# . admin-openrc

1）创建cinder用户

xxxxxxxxxx
# service项目已在glance章节创建；
# neutron用户在”default” domain中

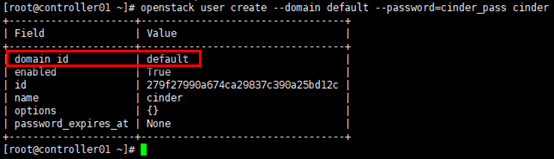

[root@controller01 ~]# openstack user create --domain default --password=cinder_pass cinder

2）cinder赋权

xxxxxxxxxx
# 为cinder用户赋予admin权限
[root@controller01 ~]# openstack role add --project service --user cinder admin

3）创建cinder服务实体

xxxxxxxxxx
# cinder服务实体类型”volume”；
# 创建v2/v3两个服务实体

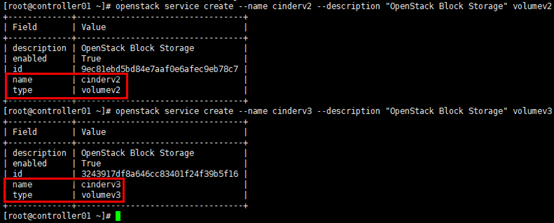

[root@controller01 ~]# openstack service create --name cinderv2 --description "OpenStack Block Storage" volumev2
[root@controller01 ~]# openstack service create --name cinderv3 --description "OpenStack Block Storage" volumev3

4）创建cinder-api

xxxxxxxxxx
# 注意--region与初始化admin用户时生成的region一致；
# api地址统一采用vip，如果public/internal/admin分别使用不同的vip，请注意区分；
# cinder-api 服务类型为volume；
# cinder-api后缀为用户project-id，可通过”openstack project list”查看

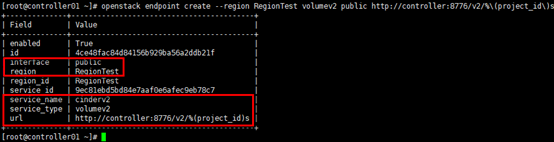

# v2 public api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev2 public http://controller:8776/v2/%\(project_id\)s

xxxxxxxxxx

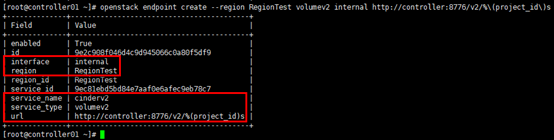

# v2 internal api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev2 internal http://controller:8776/v2/%\(project_id\)s

xxxxxxxxxx

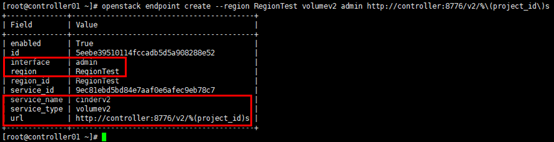

# v2 admin api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev2 admin http://controller:8776/v2/%\(project_id\)s

xxxxxxxxxx

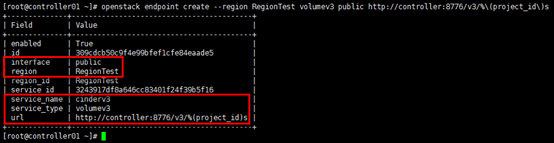

# v3 public api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev3 public http://controller:8776/v3/%\(project_id\)s

xxxxxxxxxx

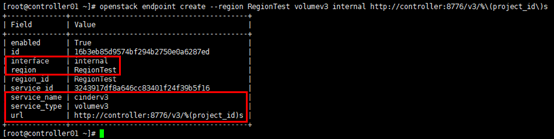

# v3 internal api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev3 internal http://controller:8776/v3/%\(project_id\)s

xxxxxxxxxx

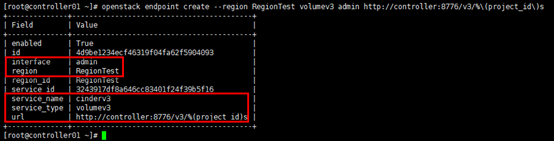

# v3 admin api
[root@controller01 ~]# openstack endpoint create --region RegionTest volumev3 admin http://controller:8776/v3/%\(project_id\)s

3. 安装cinder

xxxxxxxxxx
# 在全部控制节点安装cinder服务，以controller01节点为例
[root@controller01 ~]# yum install openstack-cinder -y

4. 配置cinder.conf

xxxxxxxxxx
# 在全部控制节点操作，以controller01节点为例；
# 注意”my_ip”参数，根据节点修改；
# 注意cinder.conf文件的权限：root:cinder
[root@controller01 ~]# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak
[root@controller01 ~]# egrep -v "^$|^#" /etc/cinder/cinder.conf
[DEFAULT]
state_path = /var/lib/cinder
my_ip = 172.30.200.31
glance_api_servers = http://controller:9292
auth_strategy = keystone
osapi_volume_listen = $my_ip
osapi_volume_listen_port = 8776
log_dir = /var/log/cinder
# 前端采用haproxy时，服务连接rabbitmq会出现连接超时重连的情况，可通过各服务与rabbitmq的日志查看；
# transport_url = rabbit://openstack:rabbitmq_pass@controller:5673
# rabbitmq本身具备集群机制，官方文档建议直接连接rabbitmq集群；但采用此方式时服务启动有时会报错，原因不明；如果没有此现象，强烈建议连接rabbitmq直接对接集群而非通过前端haproxy
transport_url=rabbit://openstack:rabbitmq_pass@controller01:5672,controller02:5672,controller03:5672
[backend]
[backend_defaults]
[barbican]
[brcd_fabric_example]
[cisco_fabric_example]
[coordination]
[cors]
[database]
connection = mysql+pymysql://cinder:cinder_dbpass@controller/cinder
[fc-zone-manager]
[healthcheck]
[key_manager]
[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller01:11211,controller02:11211,controller03:11211
auth_type = password
project_domain_id = default
user_domain_id = default
project_name = service
username = cinder
password = cinder_pass
[matchmaker_redis]
[nova]
[oslo_concurrency]
lock_path = $state_path/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[oslo_reports]
[oslo_versionedobjects]
[profiler]
[service_user]
[ssl]
[vault]

5. 配置nova.conf

xxxxxxxxxx
# 在全部控制节点操作，以controller01节点为例；
# 配置只涉及nova.conf的”[cinder]”字段；
# 加入对应regiong
[root@controller01 ~]# vim /etc/nova/nova.conf
[cinder]
os_region_name=RegionTest

6. 同步cinder数据库

xxxxxxxxxx
# 任意控制节点操作；
# 忽略部分”deprecation”信息
[root@controller01 ~]# su -s /bin/sh -c "cinder-manage db sync" cinder
​
# 验证
[root@controller01 ~]# mysql -h controller -ucinder -pcinder_dbpass -e "use cinder;show tables;"

7. 启动服务

xxxxxxxxxx
# 全部控制节点操作；
# 变更nova配置文件，首先需要重启nova服务
[root@controller01 ~]# systemctl restart openstack-nova-api.service
​
​
# 开机启动
[root@controller01 ~]# systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
​
# 启动
[root@controller01 ~]# systemctl restart openstack-cinder-api.service
[root@controller01 ~]# systemctl restart openstack-cinder-scheduler.service

8. 验证

xxxxxxxxxx
[root@controller01 ~]# . admin-openrc
​
# 查看agent服务；
# 或：cinder service-list

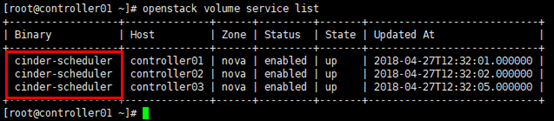

[root@controller01 ~]# openstack volume service list

9. 设置pcs资源

xxxxxxxxxx
# 在任意控制节点操作；
# 添加资源cinder-api与cinder-scheduler
[root@controller01 ~]# pcs resource create openstack-cinder-api systemd:openstack-cinder-api --clone interleave=true
[root@controller01 ~]# pcs resource create openstack-cinder-scheduler systemd:openstack-cinder-scheduler --clone interleave=true
​
# cinder-api与cinder-scheduler以active/active模式运行；
# openstack-nova-volume以active/passive模式运行
​
# 查看资源
[root@controller01 ~]# pcs resource
