高可用OpenStack（Queen版）集群

2.础服务

源自于网络-snowchuai汇总、整理

参考文档：

1. Install-guide：https://docs.openstack.org/install-guide/
2. OpenStack High Availability Guide：https://docs.openstack.org/ha-guide/index.html
3. 理解Pacemaker：http://www.cnblogs.com/sammyliu/p/5025362.html
4. Ceph: http://docs.ceph.com/docs/master/start/intro/

三．Mariadb集群

1. 安装mariadb

xxxxxxxxxx
# 在全部controller节点安装mariadb，以controller01节点为例
[root@controller01 ~]# yum install mariadb mariadb-server python2-PyMySQL -y
​
# 安装galera相关插件，利用galera搭建集群
[root@controller01 ~]# yum install mariadb-server-galera mariadb-galera-common galera xinetd rsync -y

2. 初始化mariadb

xxxxxxxxxx
# 在全部控制节点初始化数据库密码，以controller01节点为例；
# root初始密码为空
[root@controller01 ~]# systemctl restart mariadb.service
[root@controller01 ~]# mysql_secure_installation
Enter current password for root (enter for none):
Set root password? [Y/n] y
New password:
Re-enter new password:
Remove anonymous users? [Y/n] y
Disallow root login remotely? [Y/n] n
Remove test database and access to it? [Y/n] y
Reload privilege tables now? [Y/n] y

3. 修改mariadb配置文件

xxxxxxxxxx
# 在全部控制节点/etc/my.cnf.d/目录下新增openstack.cnf配置文件，主要设置集群同步相关参数，以controller01节点为例，个别涉及ip地址/host名等参数根据实际情况修改
[root@controller01 my.cnf.d]# cat /etc/my.cnf.d/openstack.cnf
[mysqld]
binlog_format = ROW
bind-address = 172.30.200.31
default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
[galera]
bind-address = 172.30.200.31
wsrep_provider = /usr/lib64/galera/libgalera_smm.so
wsrep_cluster_address ="gcomm://controller01,controller02,controller03"
wsrep_cluster_name = openstack-cluster-01
wsrep_node_name = controller01
wsrep_node_address = 172.30.200.31
wsrep_on=ON
wsrep_slave_threads=4
wsrep_sst_method=rsync
default_storage_engine=InnoDB
[embedded]
[mariadb]
[mariadb-10.1]

4. 构建mariadb集群

xxxxxxxxxx
# 停止全部控制节点的mariadb服务，以controller01节点为例
[root@controller01 ~]# systemctl stop mariadb.service
​
# 任选1个控制节点以如下方式启动mariadb服务，这里选择controller01节点
[root@controller01 ~]# /usr/libexec/mysqld --wsrep-new-cluster --user=root &
​

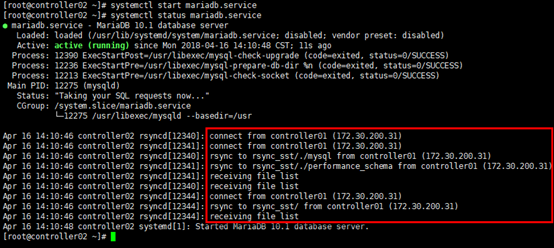

# 其他控制节点加入mariadb集群，以controller02节点为例；
# 启动后加入集群，controller02节点从controller01节点同步数据，也可同步查看mariadb日志/var/log/mariadb/mariadb.log
[root@controller02 ~]# systemctl start mariadb.service
[root@controller02 ~]# systemctl status mariadb.service

xxxxxxxxxx

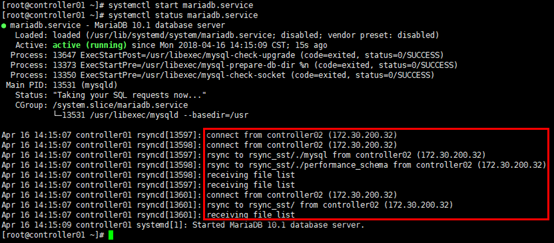

# 重新启动controller01节点；
# 启动前删除contrller01节点的数据
[root@controller01 ~]# pkill -9 mysql
[root@controller01 ~]# rm -rf /var/lib/mysql/*
​
# 注意以system unit方式启动mariadb服务时的权限
[root@controller01 ~]# chown mysql:mysql /var/run/mariadb/mariadb.pid
​
# 启动后查看节点所在服务状态，controller01节点从controller02节点同步数据
[root@controller01 ~]# systemctl start mariadb.service
[root@controller01 ~]# systemctl status mariadb.service

xxxxxxxxxx

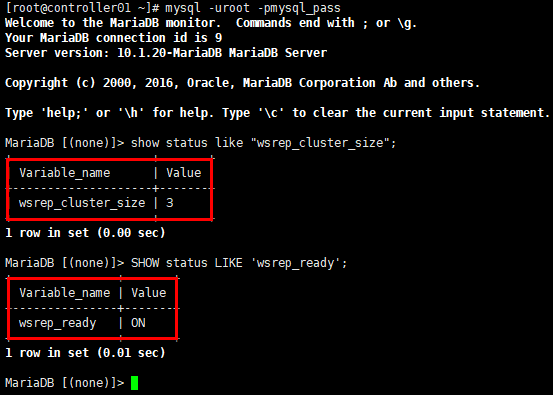

# 查看集群状态
[root@controller01 ~]# mysql -uroot -pmysql_pass
MariaDB [(none)]> show status like "wsrep_cluster_size";
MariaDB [(none)]> SHOW status LIKE 'wsrep_ready';

5. 设置心跳检测clustercheck

1）准备脚本

xxxxxxxxxx
# 下载clustercheck脚本
[root@controller01 ~]# wget https://raw.githubusercontent.com/olafz/percona-clustercheck/master/clustercheck
​
# 赋权
[root@controller01 ~]# chmod +x clustercheck
[root@controller01 ~]# cp ~/clustercheck /usr/bin/

2）创建心跳检测用户

xxxxxxxxxx
# 在任意控制节点创建clustercheck_user用户并赋权；
# 注意账号/密码与脚本中的账号/密码对应，这里采用的是脚本默认的账号/密码，否则需要修改clustercheck脚本文件
[root@controller01 ~]# mysql -uroot -pmysql_pass
MariaDB [(none)]> GRANT PROCESS ON *.* TO 'clustercheckuser'@'localhost' IDENTIFIED BY 'clustercheckpassword!';
MariaDB [(none)]> FLUSH PRIVILEGES;

3）检测配置文件

xxxxxxxxxx
# 在全部控制节点新增心跳检测服务配置文件/etc/xinetd.d/mysqlchk，以controller01节点为例
[root@controller01 ~]# touch /etc/xinetd.d/mysqlchk
[root@controller01 ~]# vim /etc/xinetd.d/mysqlchk
# default: on
# description: mysqlchk
service mysqlchk
{
   port = 9200
   disable = no
   socket_type = stream
   protocol = tcp
   wait = no
   user = root
   group = root
   groups = yes
   server = /usr/bin/clustercheck
   type = UNLISTED
   per_source = UNLIMITED
   log_on_success =
   log_on_failure = HOST
   flags = REUSE
}

4）启动心跳检测服务

xxxxxxxxxx
# 修改/etc/services，变更tcp9200端口用途，以controller01节点为例
[root@controller01 ~]# vim /etc/services
#wap-wsp         9200/tcp                # WAP connectionless session service
mysqlchk        9200/tcp                # mysqlchk
​
# 启动xinetd服务，以controller01节点为例
[root@controller01 ~]# systemctl daemon-reload
[root@controller01 ~]# systemctl enable xinetd
[root@controller01 ~]# systemctl start xinetd

5）测试心跳检测脚本

xxxxxxxxxx
# 在全部控制节点验证，以controller01节点为例
[root@controller01 ~]# /usr/bin/clustercheck

四．RabbitMQ集群

采用openstack官方的安装方法，在未更新erlang的情况下，rabbitmq不是最新版本。

如果需要部署最新版本rabbitmq集群，可参考：http://www.cnblogs.com/netonline/p/7678321.html

1. 安装rabbitmq

xxxxxxxxxx
# 在全部控制节点，使用aliyun的epel镜像，以controller01节点为例
[root@controller01 ~]# wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
[root@controller01 ~]# yum install erlang rabbitmq-server -y
​
# 设置开机启动
[root@controller01 ~]# systemctl enable rabbitmq-server.service

2. 构建rabbitmq集群

xxxxxxxxxx
# 任选1个控制节点首先启动rabbitmq服务，这里选择controller01节点
[root@controller01 ~]# systemctl start rabbitmq-server.service
[root@controller01 ~]# rabbitmqctl cluster_status
​
# 分发.erlang.cookie
[root@controller01 ~]# scp /var/lib/rabbitmq/.erlang.cookie root@172.30.200.32:/var/lib/rabbitmq/
[root@controller01 ~]# scp /var/lib/rabbitmq/.erlang.cookie root@172.30.200.33:/var/lib/rabbitmq/
​
# 修改controller02/03节点.erlang.cookie文件的用户/组，以controller02节点为例
[root@controller02 ~]# chown rabbitmq:rabbitmq /var/lib/rabbitmq/.erlang.cookie
​
# 注意修改全部控制节点.erlang.cookie文件的权限，默认即400权限，可不修改
[root@controller02 ~]# ll /var/lib/rabbitmq/.erlang.cookie
​
# 启动controller02/03节点的rabbitmq服务
[root@controller02 ~]# systemctl start rabbitmq-server
​
[root@controller03 ~]# systemctl start rabbitmq-server
​

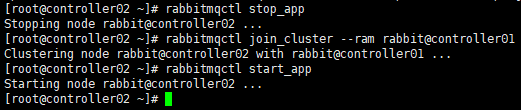

# 构建集群，controller02/03节点以ram节点的形式加入集群
[root@controller02 ~]# rabbitmqctl stop_app
[root@controller02 ~]# rabbitmqctl join_cluster --ram rabbit@controller01
[root@controller02 ~]# rabbitmqctl start_app

xxxxxxxxxx

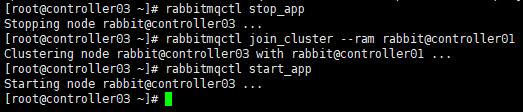

[root@controller03 ~]# rabbitmqctl stop_app
[root@controller03 ~]# rabbitmqctl join_cluster --ram rabbit@controller01
[root@controller03 ~]# rabbitmqctl start_app

xxxxxxxxxx

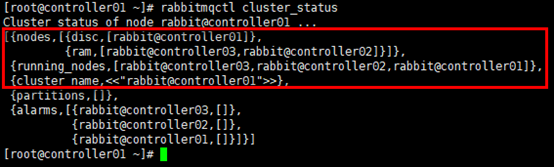

# 任意节点可验证集群状态
[root@controller01 ~]# rabbitmqctl cluster_status

3. rabbitmq账号

xxxxxxxxxx
# 在任意节点新建账号并设置密码，以controller01节点为例
[root@controller01 ~]# rabbitmqctl add_user openstack rabbitmq_pass
​
# 设置新建账号的状态
[root@controller01 ~]# rabbitmqctl set_user_tags openstack administrator
​
# 设置新建账号的权限
[root@controller01 ~]# rabbitmqctl set_permissions -p "/" openstack ".*" ".*" ".*"
​
# 查看账号
[root@controller01 ~]# rabbitmqctl list_users

4. 镜像队列ha

xxxxxxxxxx
# 设置镜像队列高可用
[root@controller01 ~]# rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all"}'
​
# 查看镜像队列策略
[root@controller01 ~]# rabbitmqctl list_policies

5. 安装web管理插件

xxxxxxxxxx
# 在全部控制节点安装web管理插件，以controller01节点为例
[root@controller01 ~]# rabbitmq-plugins enable rabbitmq_management
​

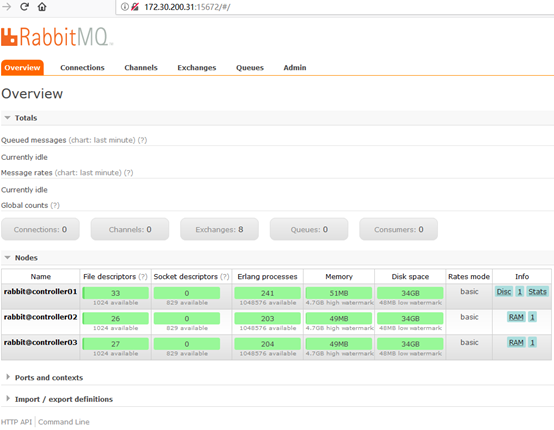

访问任意节点，如：http://172.30.200.31:15672

五．Memcached集群

Memcached是无状态的，各控制节点独立部署，openstack各服务模块统一调用多个控制节点的memcached服务即可。

采用openstack官方的安装方法，如果需要部署最新版本memcached，可参考：http://www.cnblogs.com/netonline/p/7805900.html

以下配置以controller01节点为例。

1. 安装memcached

xxxxxxxxxx
# 在全部控制节点安装memcached
[root@controller01 ~]# yum install memcached python-memcached -y

2. 设置memcached

xxxxxxxxxx
# 在全部安装memcached服务的节点设置服务监听地址
[root@controller01 ~]# sed -i 's|127.0.0.1,::1|0.0.0.0|g' /etc/sysconfig/memcached

3. 开机启动

xxxxxxxxxx
[root@controller01 ~]# systemctl enable memcached.service
[root@controller01 ~]# systemctl start memcached.service
[root@controller01 ~]# systemctl status memcached.service
